HIKVISION DS-1004KI User Manual

User Manual of the DS-1004K keyboard
8
2.4 Typical Wiring Methods

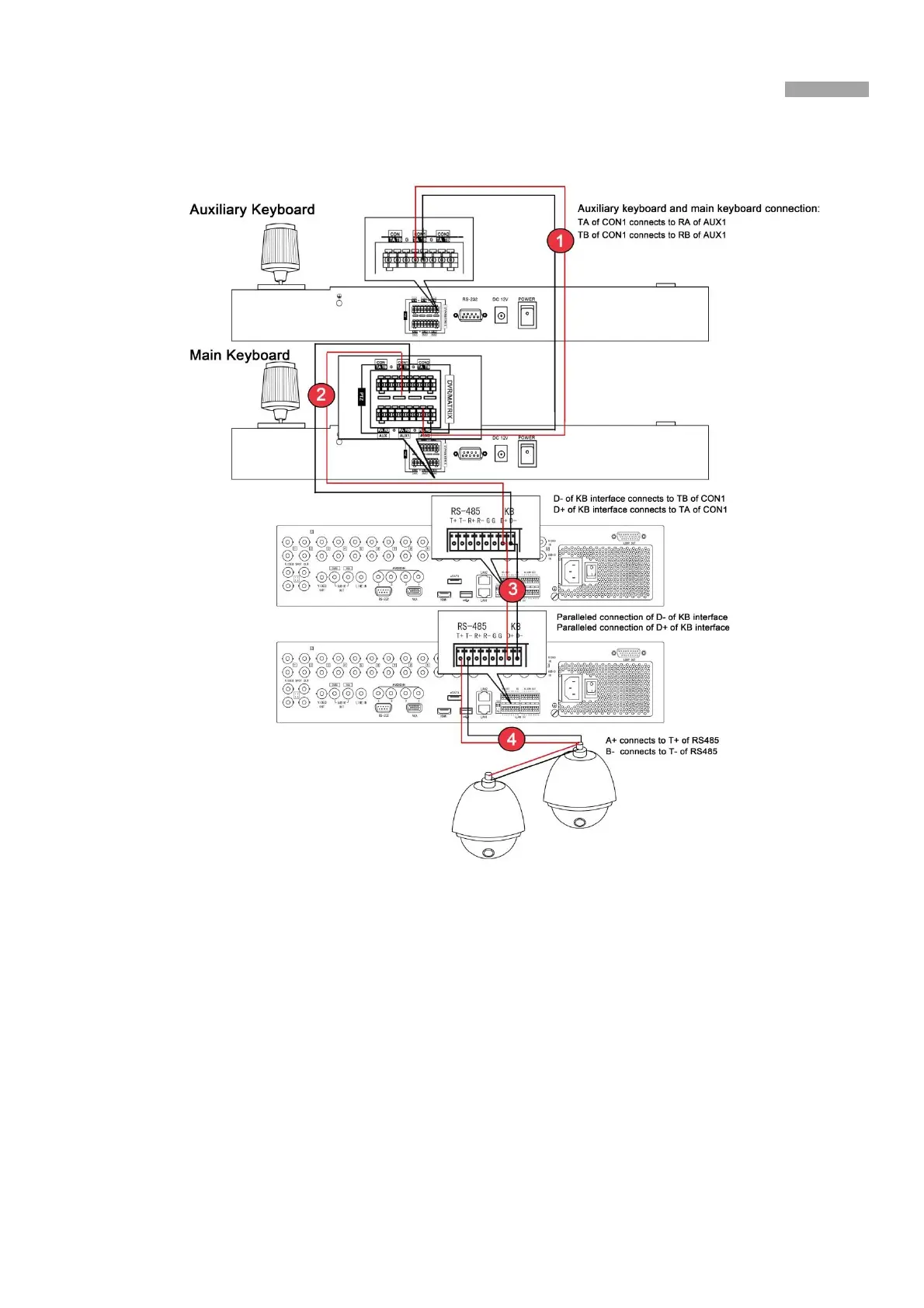

Figure 2-3 Connection between the keyboards, the keyboards and the dome camera, the keyboard and the DVRs
① shows the connection of the auxiliary keyboard and the main keyboard. You can connect many auxiliary keyboards to the
main keyboard.
② shows the connection between the keyboard and the DVR/NVR.
③ shows the connection of DVRs when they are all connected and controlled by the keyboard.
④ shows the connection between DVR and dome cameras.

HIKVISION DS-1004KI Specifications

General

Numeric keypad	Yes
Keyboard layout	-
Pointing device	Trackball
Device interface	RS-485
Connectivity technology	Wired
Wrist rest	No
Product color	Black
Keyboard style	Straight
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product type	Control panel
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	163 mm
Width	434 mm
Height	43 mm
Keyboard weight	1250 g
Keyboard dimensions (WxDxH)	434 x 163 x 43 mm
