HIKVISION DS-1004KI User Manual

User Manual of the DS-1004K keyboard
6
2.2 Front Panel Description

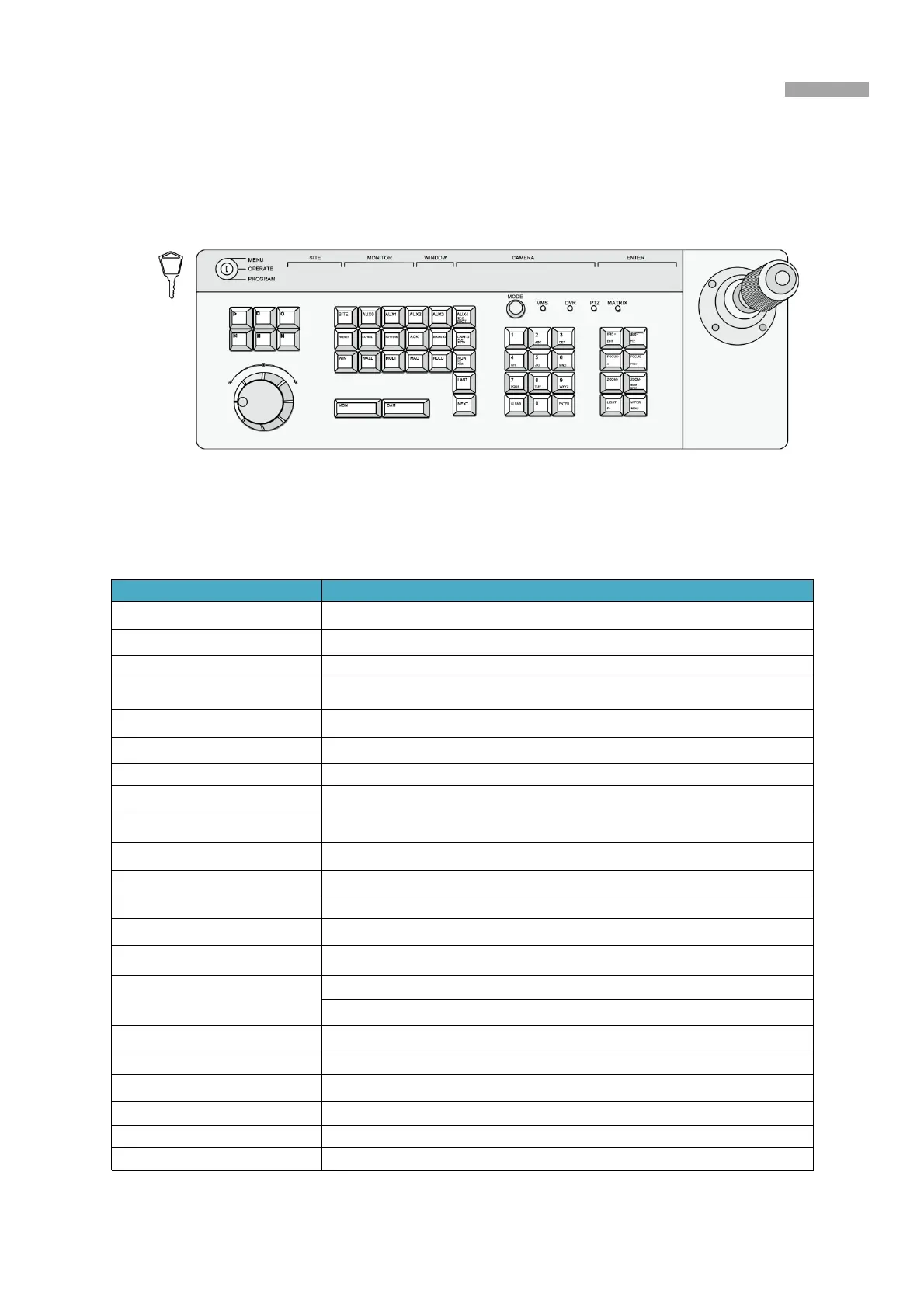

Figure 2-2 Top View on DS-1004KI Keyboard
Note:
Buttons on the keyboard have different functions in different controlling modes. For example, the IRIS+/EDIT button realizes the
IRIS+ in PTZ control mode and in the DVR control mode, it is the EDIT button, when pressing, you can edit the combox field.
Button Description
Lock
Switch to change the working mode of the keyboard.
Playback Buttons
Reserved
Jog Shuttle Button
Reserved
SITE
Press this button to enter the DVR No., dome camera No., analog matrix No. or the
VMS No..
AUX0
When controlling VMS, call the patrol of the dome camera.
AUX1
Reserved
AUX2
Reserved
AUX3
Reserved
AUX4/ REC/SHOT
DVR control mode: Audio on/ off and
PRESET
Set and call the preset
PATROL
Set and call the patrol
PATTERN
Set and call the pattern
ACK
Reserved
MON-G
When controlling VMS, choose the monitor group.
CAM-G/PLAY/AUTO
When controlling VMS, choose the camera group.
DVR control mode: Fast play when playing back.
WIN
When controlling VMS, press the button to choose windows.
WALL
When controlling VMS, select the TV wall after montage is done.
MULT
When controlling VMS, select the small screen which has not been montaged.
MAC
Reserved
HOLD
Stop cycling
RUN/F2/AUX
Start or Go on the cycling

HIKVISION DS-1004KI Specifications

General

Numeric keypad	Yes
Keyboard layout	-
Pointing device	Trackball
Device interface	RS-485
Connectivity technology	Wired
Wrist rest	No
Product color	Black
Keyboard style	Straight
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product type	Control panel
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	163 mm
Width	434 mm
Height	43 mm
Keyboard weight	1250 g
Keyboard dimensions (WxDxH)	434 x 163 x 43 mm
