HIKVISION DS-1004KI User Manual

User Manual of the DS-1004K keyboard
13
Chapter 3 Keyboard Operation
3.1 Controlling DVR by Keyboard
Setting the Keyboard Parameters to Control DVR
Once the keyboard is connected to the DVR, it can be used just as the front panel of the DVR. The joystick can move the cursor.
Before you start:
Check the connection between the DVR and the Keyboard.
TA and TB of CON1 on the keyboard connect to D+ and D- of the DVR. The following figure shows the simplest way of connection
between a DVR and keyboard.

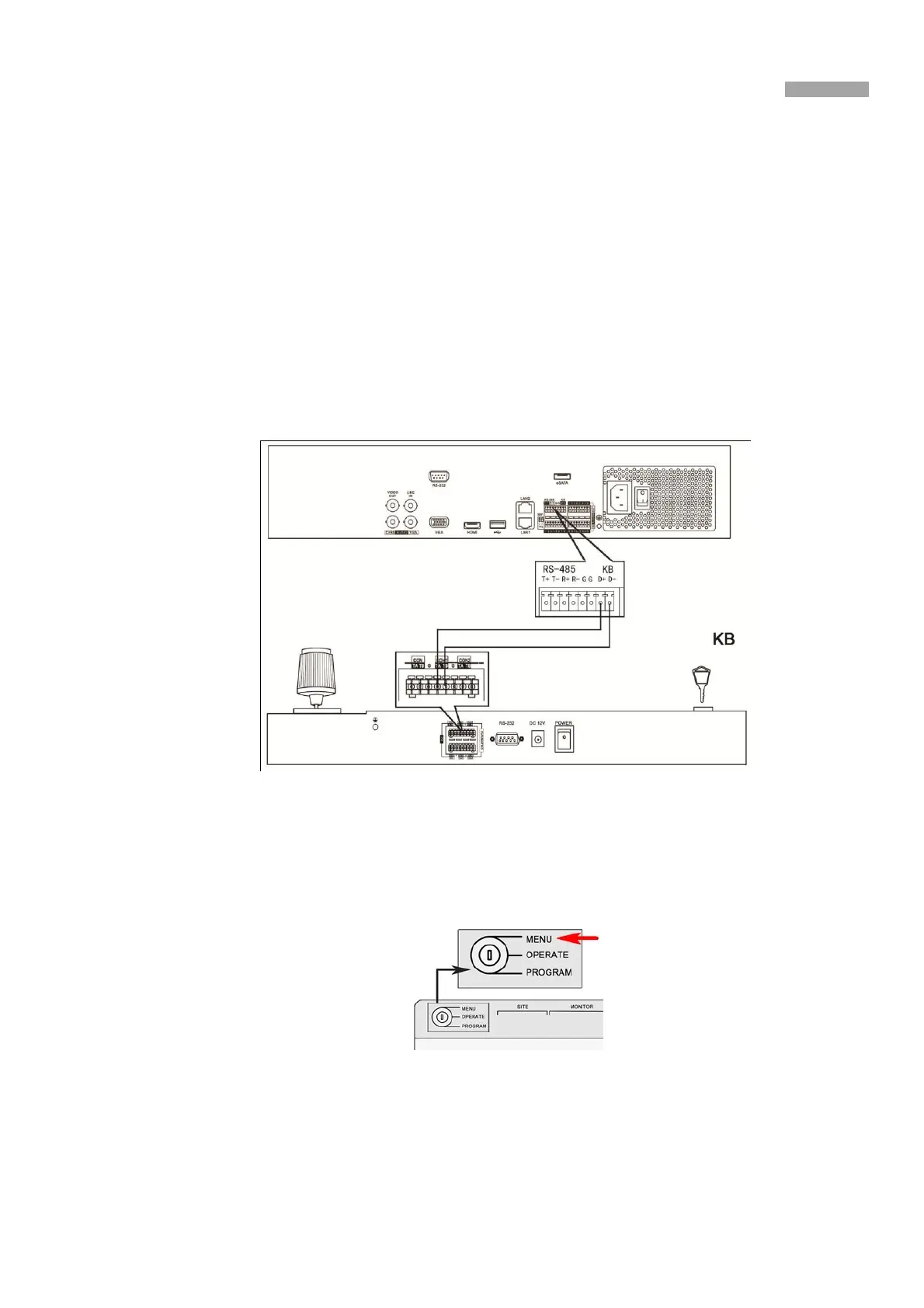

Figure 3-1 A Simple Connection between Keyboard and DVR
Steps:
1. On the keyboard, turn the key to the MENU item, and press the Mode button to select the DVR as the controlled
device.
Figure 3-2 Turn the key to MENU

HIKVISION DS-1004KI Specifications

General

Numeric keypad	Yes
Keyboard layout	-
Pointing device	Trackball
Device interface	RS-485
Connectivity technology	Wired
Wrist rest	No
Product color	Black
Keyboard style	Straight
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product type	Control panel
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	163 mm
Width	434 mm
Height	43 mm
Keyboard weight	1250 g
Keyboard dimensions (WxDxH)	434 x 163 x 43 mm
