HIKVISION DS-1100KI Quick Operation Guide

Quick Operation Guide of DS-1100KI Network Keyboard
6

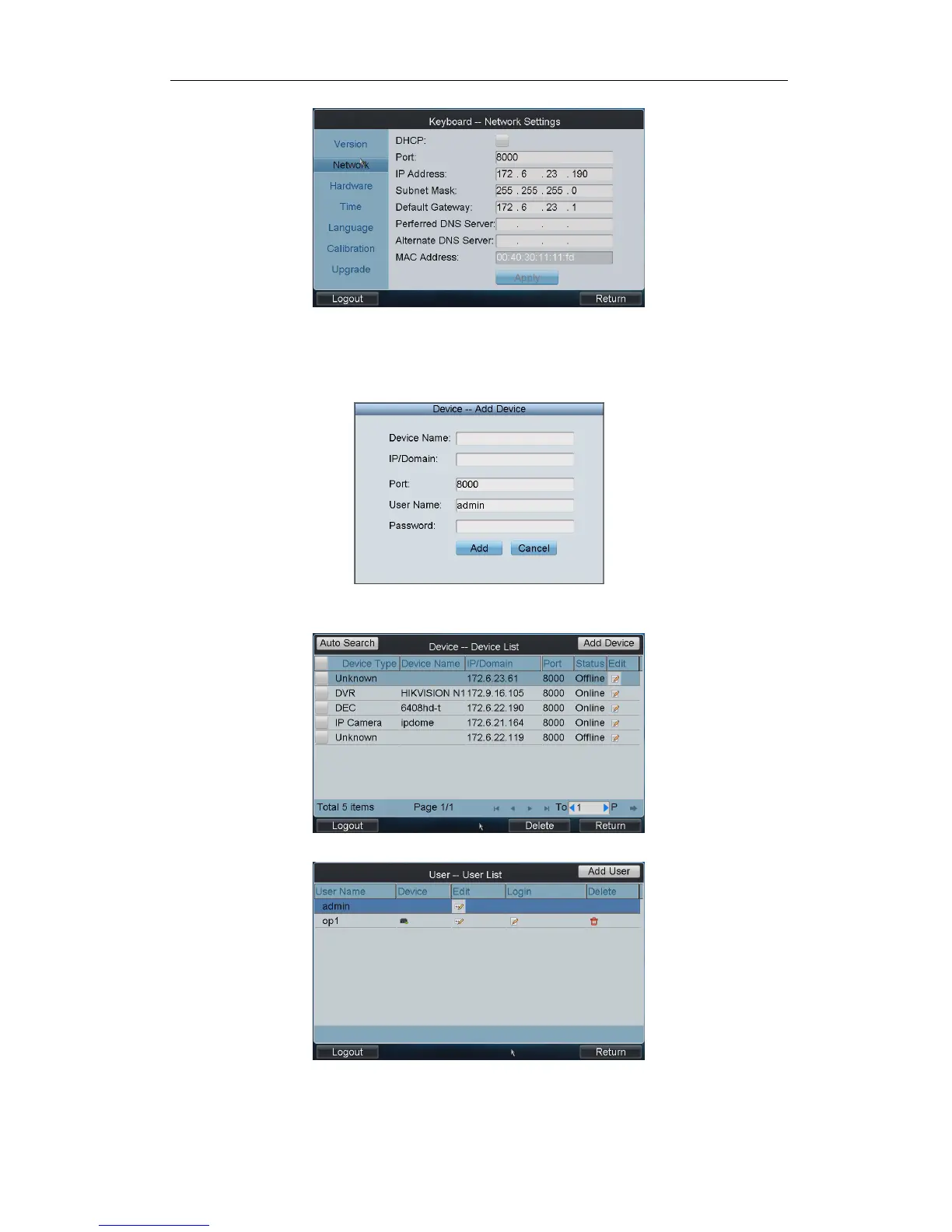

5. Click Return to back to the main interface.
6. Click Device on the admin main interface to enter the device management menu.
7. Click Add Device to enter the Device-Add Device interface. Input the device name, device IP/domain name,
port, user name and password, and then click Add to add the device.
8. Return to the Device-Device List interface, and the successfully added device is shown on the list. Click Return
to back to the main interface.
9. Click User on the main interface to enter the User-User List interface.
10. In the User List interface, click Add User to enter the Add User interface. Input the user name, password and
verify the password. Finally, click Add to finish the adding of user.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
