HIKVISION DS-2CD1143G0-I User Manual

Network Camera User Manual
116
save the settings.
4. Move the mouse to the end of each day, a copy dialogue box pops up, and you
can copy the current settings to other days.
5. Click Save to save the settings.
Note: The time of each period can’t be overlapped. Up to 8 periods can be configured
for each day.
Task 3: Set the Linkage Method for Motion Detection
Check the checkbox to select the linkage method. Audible Warning, Send Email,
Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Trigger Channel and
Trigger Alarm Output are selectable. You can specify the linkage method when an
event occurs.

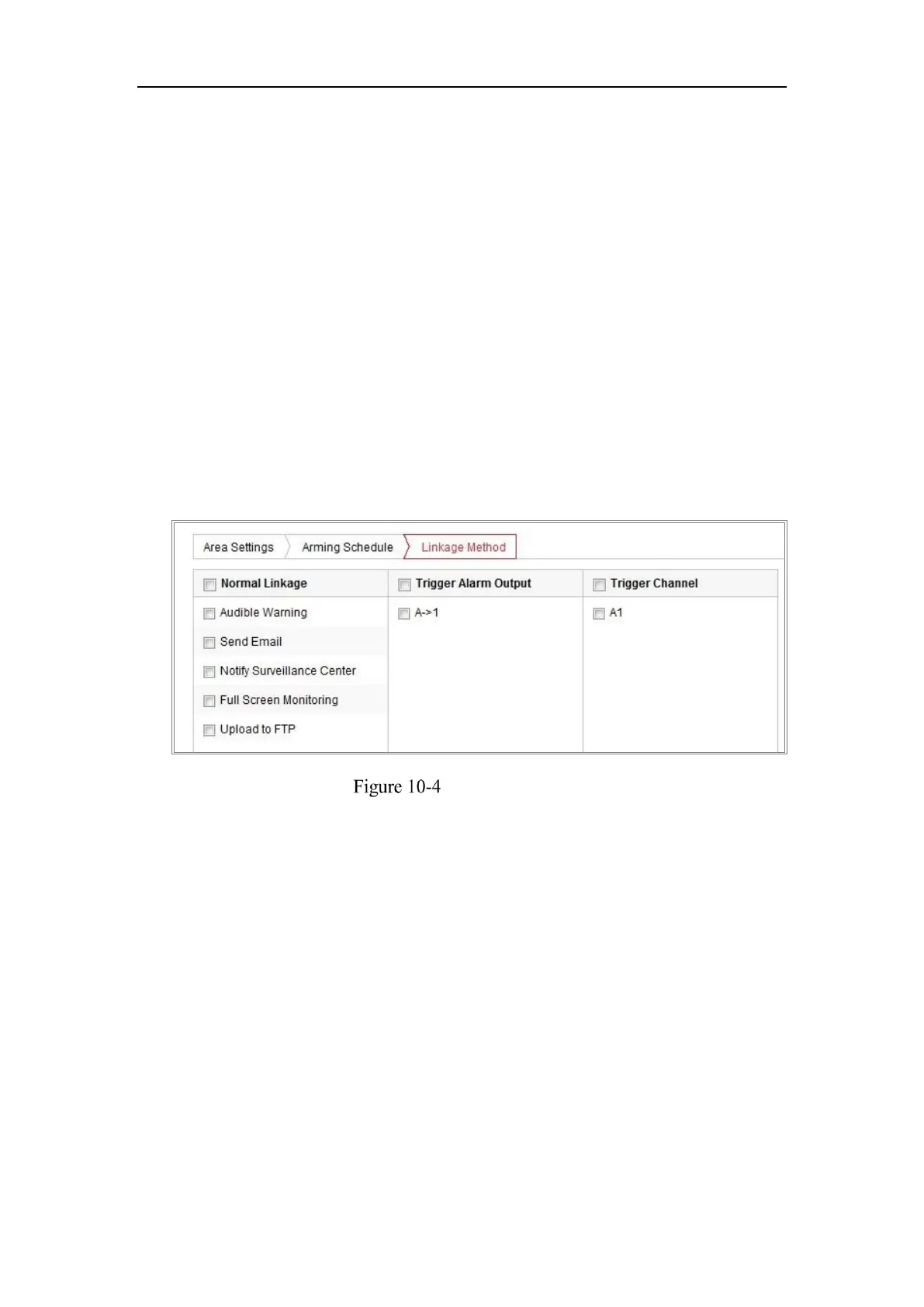

Linkage Method
Note: The linkage methods vary according to the different camera models.
 Audible Warning
Trigger the audible warning locally. And it only supported by the device that
have the audio output.
 Notify Surveillance Center
Send an exception or alarm signal to remote management software when an event
occurs.
 Send Email
Send an email with alarm information to a user or users when an event occurs.
Note: To send the Email when an event occurs, please refer to Section 7.2.3 to

HIKVISION DS-2CD1143G0-I Specifications

General

Video streaming	Yes
Total megapixels	4 MP
Maximum resolution	2560 x 1440 pixels
Image quality adjustment	Brightness, Contrast, DNR, Saturation, Sharpness
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions	320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Sensor type	CMOS
Number of sensors	-
Optical sensor size	1/3 \
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Maximum operating distance	30 m
DC output current	0.4 A
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	5 W
Power consumption (Power over Ethernet (PoE))	7 W
IK code	IK10
Form factor	Dome
Mounting type	Ceiling/wall
Product color	Black, White
Housing material	Metal, Plastic
International Protection (IP) code	IP67
Pan range	0 - 355 °
Tilt angle range	0 - 70 °
Camera shutter speed	1/3 - 1/100000 s
Minimum illumination	0.01 lx
Field of view (FOV) angle	117 °
LED type	IR
Infra-red wavelength	850 nm
Wi-Fi	No
Number of users	32 user(s)
Networking standards	IEEE 802.3af
Ethernet interface type	10 Gigabit Ethernet, 100 Gigabit Ethernet
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Ethernet LAN (RJ-45) ports	1
Operating temperature (T-T)	-30 - 50 °C

Weight and Dimensions

Width	111 mm
Height	82.4 mm
Weight	410 g
Package weight	610 g
