Network Camera User Manual
110
used for other basic events.
• When Alarm Input is selected and saved, previously configured linkage
method for "A<-1" will be canceled.

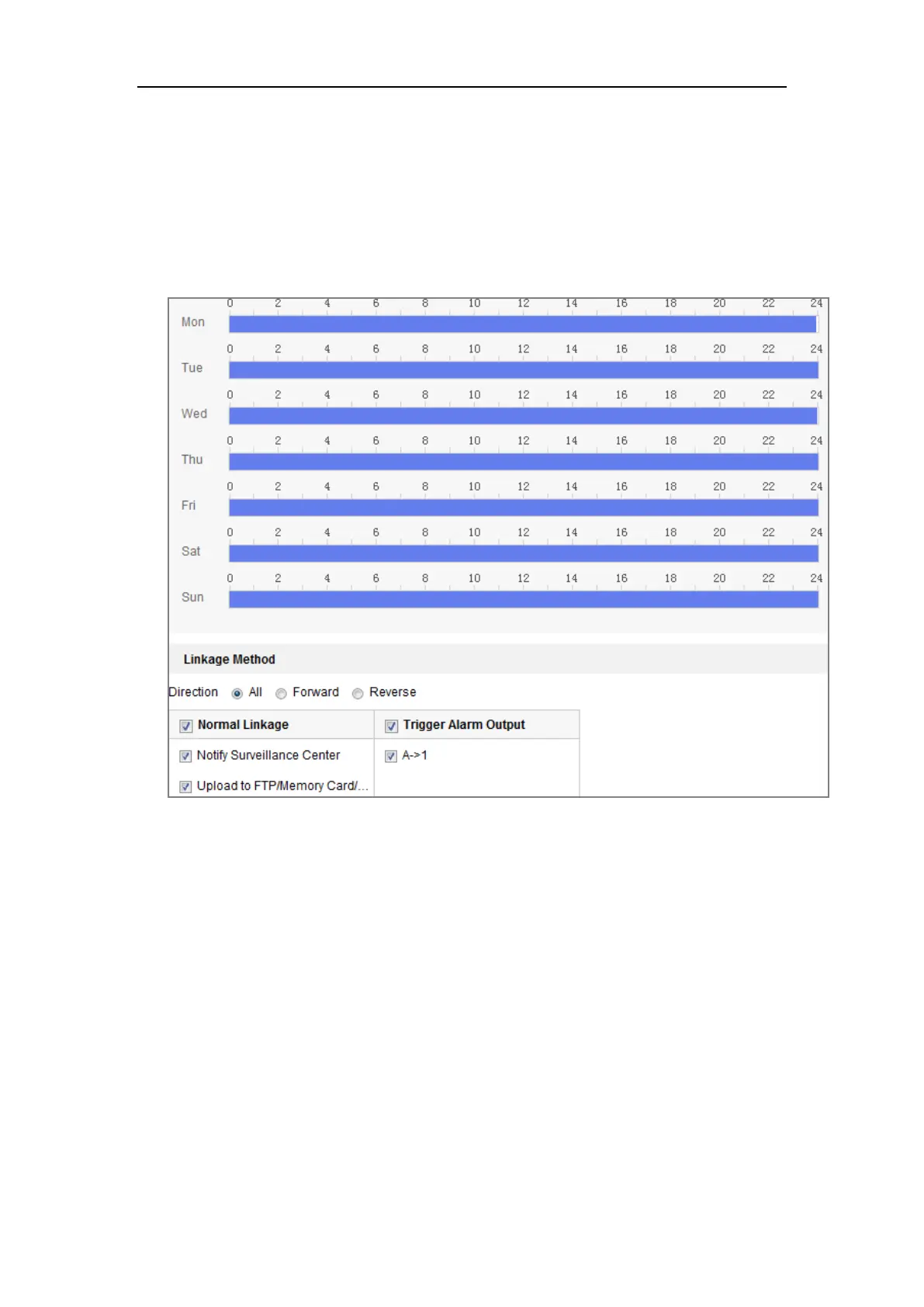

9. Click Arming Schedule and Linkage Method and set schedule and linkage
method for the detection.
1) Click on the time bar and drag the mouse to select the time period. Click
delete or delete all to delete the configured schedule.
2) Move the mouse to the end of each day, a copy dialogue box pops up, and you
can copy the current settings to other days.
3) Select the direction. The Direction means the direction of vehicle moving.
Only the vehicles moving as the selected direction can trigger selected linkage
methods.
Forward: Vehicle moves toward the camera.
Reverse: Vehicle moves away from the camera.
4) Set the linkage method. Notify surveillance center and upload to
FTP/Memory Card/NAS are selectable.
