HIKVISION DS-2CD6362F-I User Manual

User Manual of Network Fisheye Camera
46

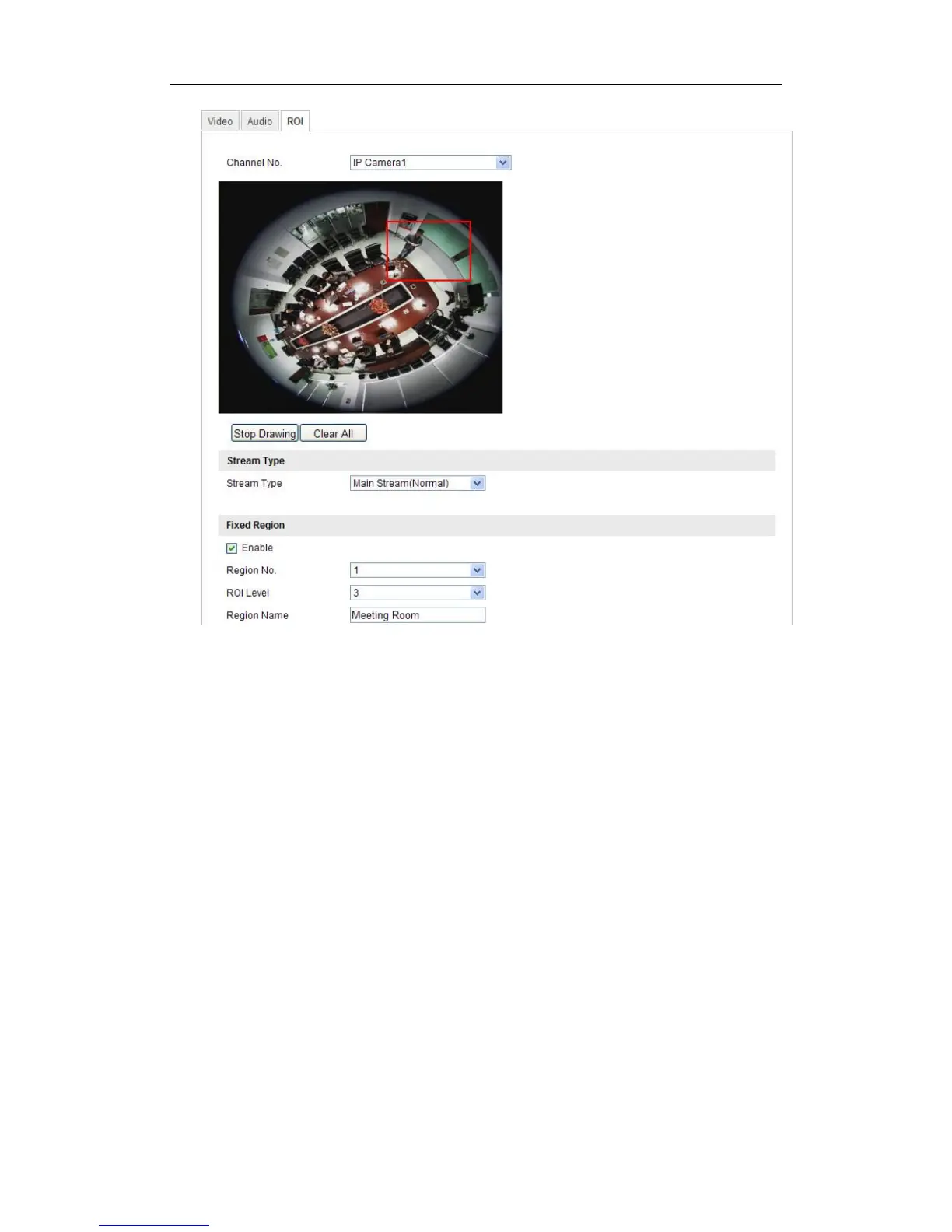

Figure 5-24 Region of Interest Settings
2. Draw the region of interest on the image. There are four regions can be drawn.
3. Choose the stream type to set the ROI encoding.
4. Choose the ROI type.
There are two options for ROI encoding, the fixed region encoding and the
dynamic tracking.
 The fixed region encoding is the ROI encoding for the manually configured
area. And you can choose the Image Quality Enhancing level for ROI
encoding, and you can also name the ROI area.
 The dynamic region refers to the ROI defined by intelligent analysis such as
human face detection. You can choose the Image Quality Enhancing level for
the ROI encoding.
5. Click Save to save the settings.

HIKVISION DS-2CD6362F-I Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
Total megapixels	6 MP
Maximum resolution	3072 x 2048 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1024 x 768 (XGA), 2048 x 1536 (QXGA)
Camera shutter speed	1/25 - 1/100000 s
Minimum illumination	0.3 lx
Field of view (FOV) angle	360 °
Sensor type	CMOS
Optical sensor size	1/1.8 \
Optical zoom	- x
Focus adjustment	2.8
Fixed focal length	- mm
Password protection type	User
Compatible memory cards	MicroSD (TransFlash), MicroSDXC
Maximum memory card size	64 GB
LED type	IR
Night vision distance	15 m
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTC P, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Ethernet LAN (RJ-45) ports	1
Signal-to-Noise Ratio (SNR)	120 dB
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	11 W
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	152.8 mm
Width	164 mm
Height	43.8 mm
Weight	1400 g
