User Manual of Network Fisheye Camera
57
Configuration > Advanced Configuration> Basic Event > Alarm Input:
2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO
(Normally Open) and NC (Normally Closed). Edit the name to set a name for the
alarm input (optional).

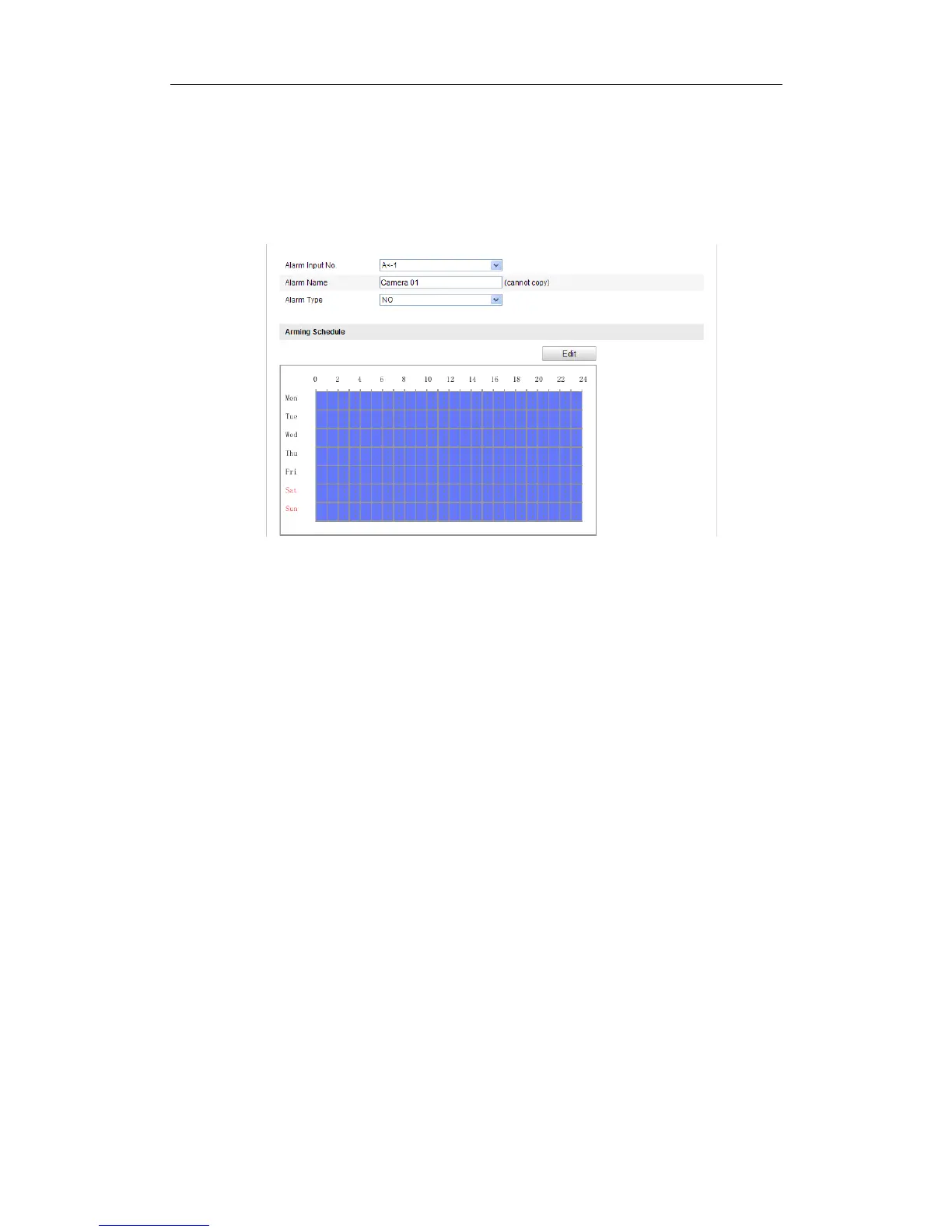

Figure 5-36 Alarm Input Settings
3. Click Edit to set the arming schedule for the alarm input. Refer to Task 2: Set the
Arming Schedule for Motion Detection in Section 5.6.1.
4. Check the checkbox to select the linkage method taken for the alarm input. Refer
to Task 3: Set the Alarm Actions for Motion Detection in Section 5.6.1.
5. You can also choose the PTZ linking for the alarm input if your camera is
installed with a pan/tilt unit. Check the relative checkbox and select the No. to
enable Preset Calling, Patrol Calling or Pattern Calling.
6. You can copy your settings to other alarm inputs.
7. Click Save to save the settings.
5.6.4 Configuring Alarm Output
Steps:
1. Enter the Alarm Output Settings interface:
Configuration>Advanced Configuration> Basic Event > Alarm Output
2. Select one alarm output channel in the Alarm Output drop-down list. You can
To Next Page
