DS-6700HUHI-K Series Encoder User Manual
11
The rear panel of DS-6704/6716HUHI-K provides 4/16 video input interfaces.
Table 1. 2 Interface Description
Description
1
VIDEO IN
2
AUDIO IN, RCA Connector
3
AUDIO OUT, RCA Connector
4
RS-232 Serial Interface
5
LAN Network Interface
6
RS-485 Serial Interface
7
12 VDC Power Input
8
Alarm In/Out
9
Power Switch
10
GND

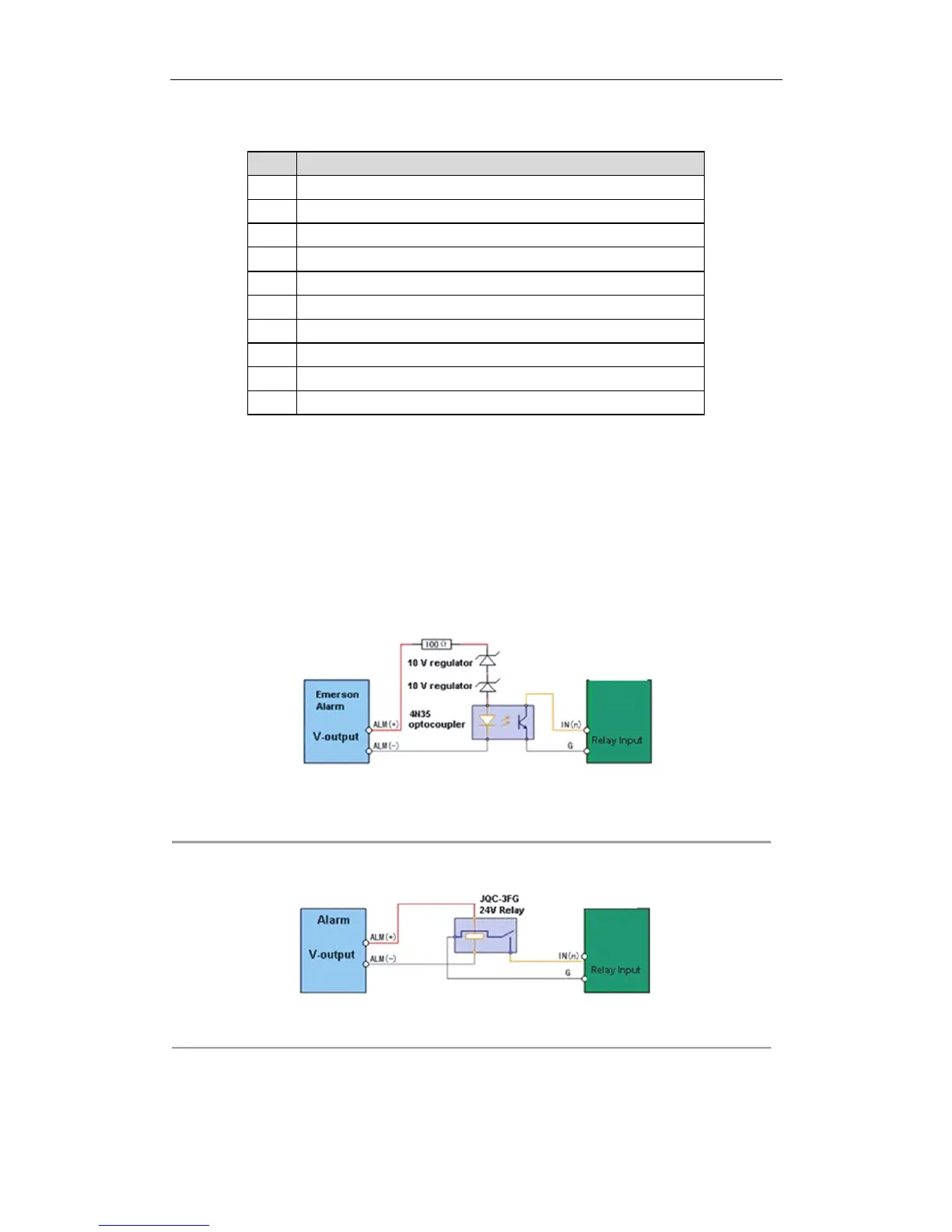

1.3 Alarm Connections
1.3.1 Alarm Input Connections
DS-6700HUHI-K supports the open/close relay input as the alarm input mode. For the alarm input signal not in
open/close relay signal mode, please follow the connections shown as below:
Alarm input connections for Emerson Alarm:
Encoder
Note: The relay input port of the Encoder should be set to NC mode.
Figure 1. 4 Alarm Input Connections for Emerson Alarm
Alarm input connections for Normal Alarm:
Encoder
Figure 1. 5 Alarm Input Connections for Normal Alarm
