HIKVISION DS-6700HUHI-K Series

DS-6700HUHI-K Series Encoder User Manual
27
4.3.3 Setting/Calling a Patrol
Setting a Patrol:
1. In live view mode, click the from the PTZ control area to enter the patrol settings interface.
2. Select a patrol number from the patrol list for settings.

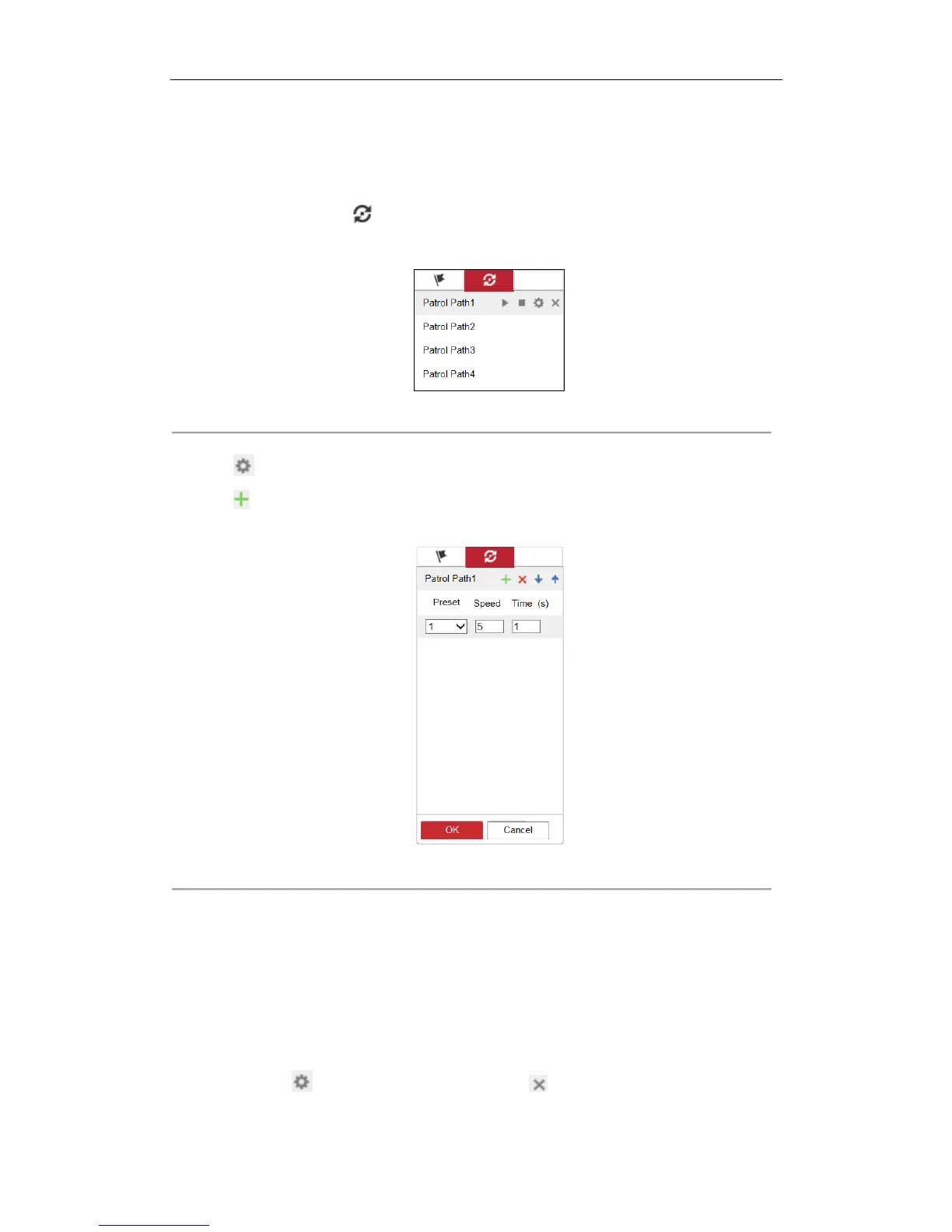

Figure 4. 7 Patrol Settings
3. Click to edit the patrol.
4. Click to add patrol path.
Figure 4. 8 Add Patrol Path
5. Configure patrol parameters, including the preset No., duration of staying for one preset and speed of patrol.
Preset: determines the order at which the PTZ will follow while cycling through the patrol.
Time: refers to the time span to stay at the corresponding key point. The time can be set from 1 to 30 sec.
Speed: defines the speed at which the PTZ will move from one key point to the next. The speed can be set
from 1 to 40.
6. Click OK to save the path to the current patrol.
7. Repeat the above step 3 to 6 to add more patrol paths.
8. (Optional) Click to edit the existing patrol path, or click to delete it.
9. Repeat the above steps to configure other patrols.
