1.4 Rear Panel
DS-7100HWI/HVI-SL and DS-7100HWI/HVI-SH
The rear panel of DS-7108HWI/HVI-SH is shown below:

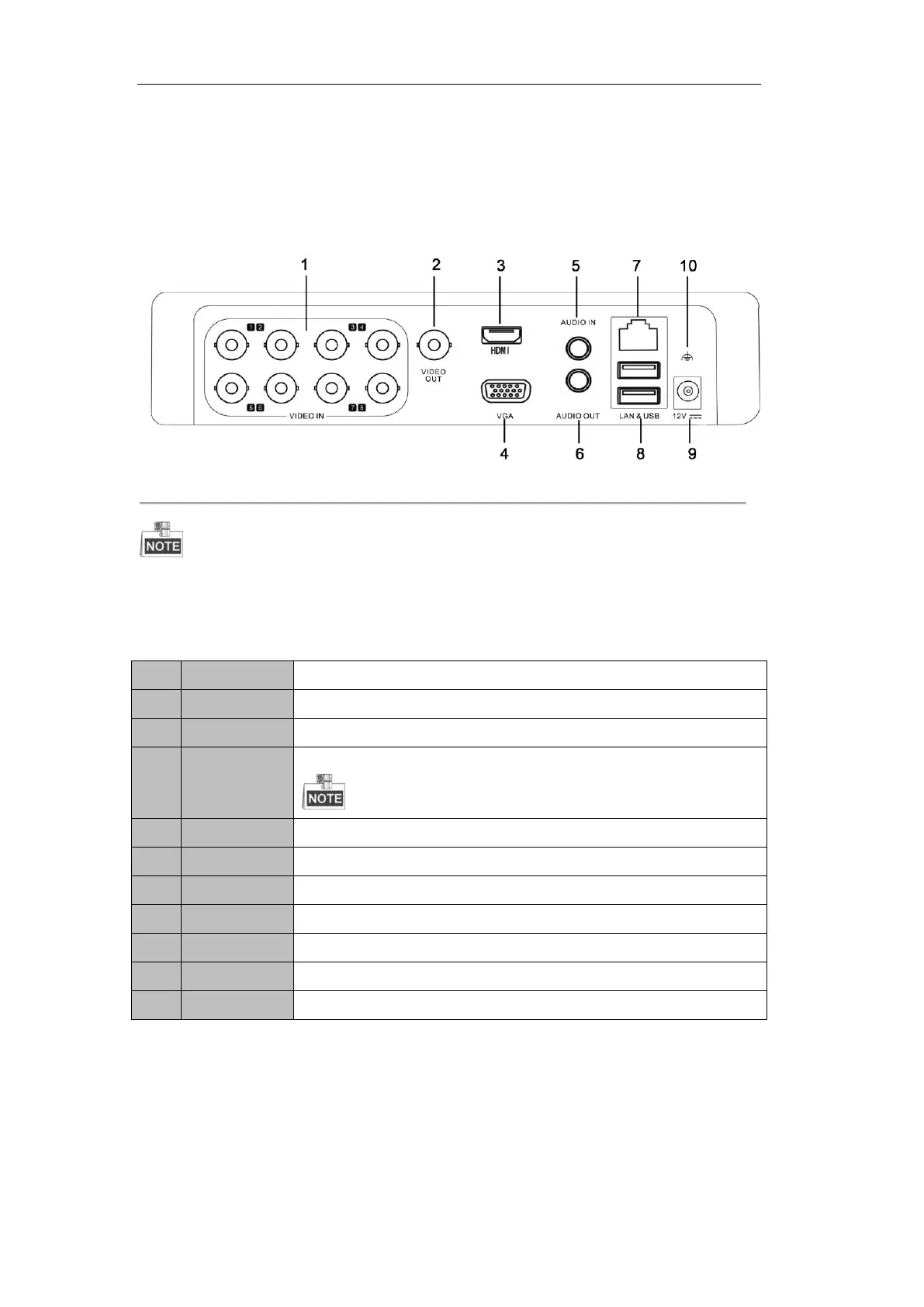

Figure 1.4 Rear Panel of DS-7108HWI/HVI-SH
 The DS-7100HWI/HVI-SL series DVR provides no HDMI interface.
 The DS-7104-SH/SL provides 4 video input interfaces and the DS-7116-SH/SL provides 16 video
input interfaces on the rear panel.
Table 1.5 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC connector for analog video input.
2
VIDEO OUT
BNC connector for video output.
3
HDMI
HDMI video output.
The DS-7100 HWI/HVI -SL series DVR provides no HDMI interface.
4
VGA
DB15 connector for VGA output. Display local video output and menu.
5
AUDIO IN
RCA connector for audio input.
6
AUDIO OUT
RCA connector for audio output.
7
LAN Interface
RJ45 10M / 100M Ethernet interface.
8
USB Interface
Connects USB mouse or USB flash memory devices.
9
12V
12VDC power supply.
10
GND
Ground (needs to be connected when DVR starts up)
