HIKVISION DS-7100HWI-SL Series

User Manual of DS-7100HWI/HVI-SL/SH and DS-7200HI-SL Series DVR
45
5.1 Configuring Encoding Parameters
Purpose:
By configuring the encoding parameters you can define the transmission stream type, the resolution and so on.
Before you start:
1. Make sure that the HDD has already been installed. If not, please install a HDD and initialize it.
(Menu>HDD>General)

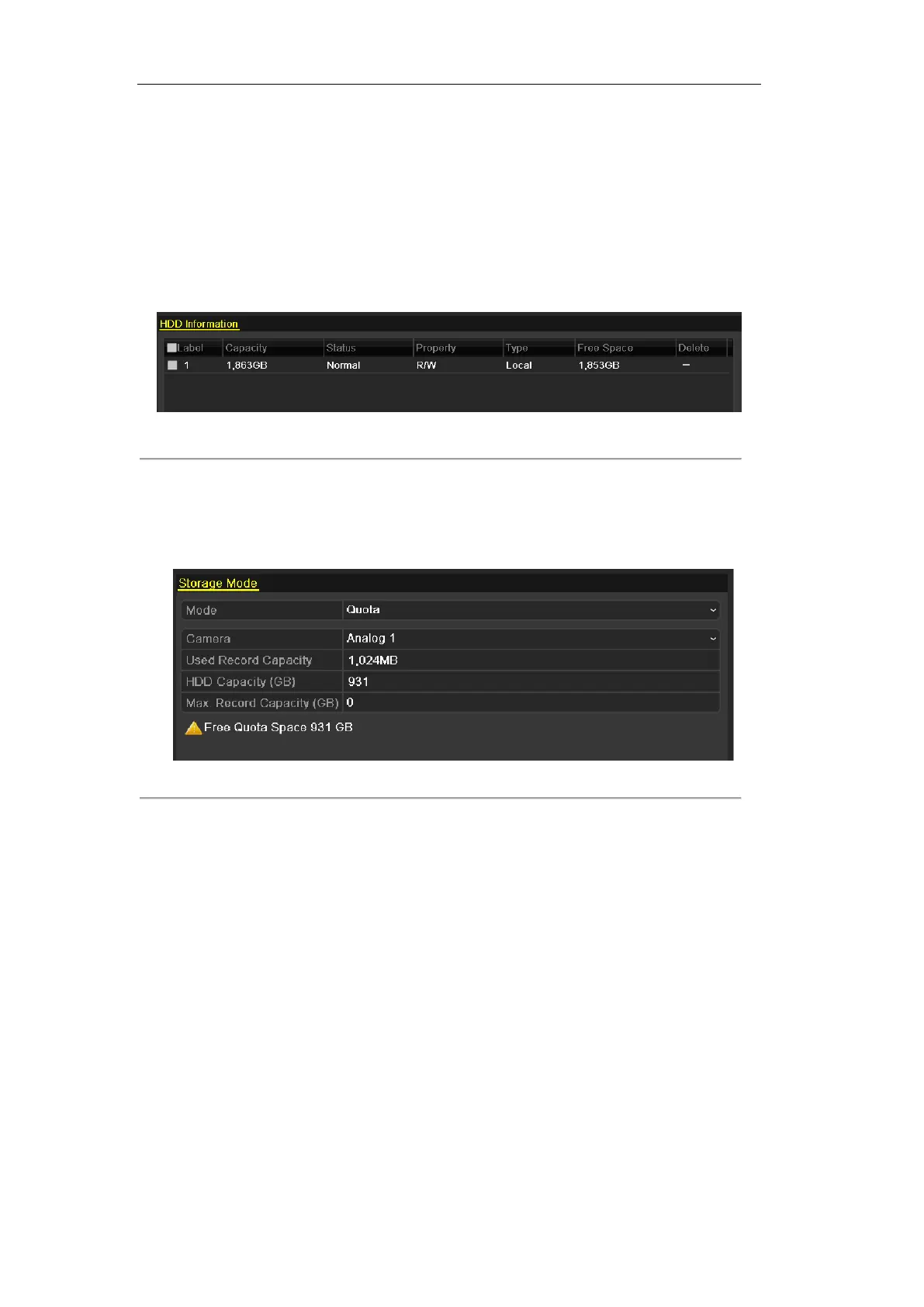

Figure 5.1 HDD- General
2. Check the storage mode of the HDD
1) Click Advanced to check the storage mode of the HDD.
2) For Quota storage mode, please set the maximum record capacity. For detailed information, see
Chapter 10.2 Configuring Quota Mode.
Figure 5.2 HDD- Advanced
Steps:
1. Enter the Record settings interface to configure the encoding parameters:
Menu>Record>Encoding
