HIKVISION DS-7100HWI-SL Series User Manual

User Manual of Digital Video Recorder
17
DS-7200HI

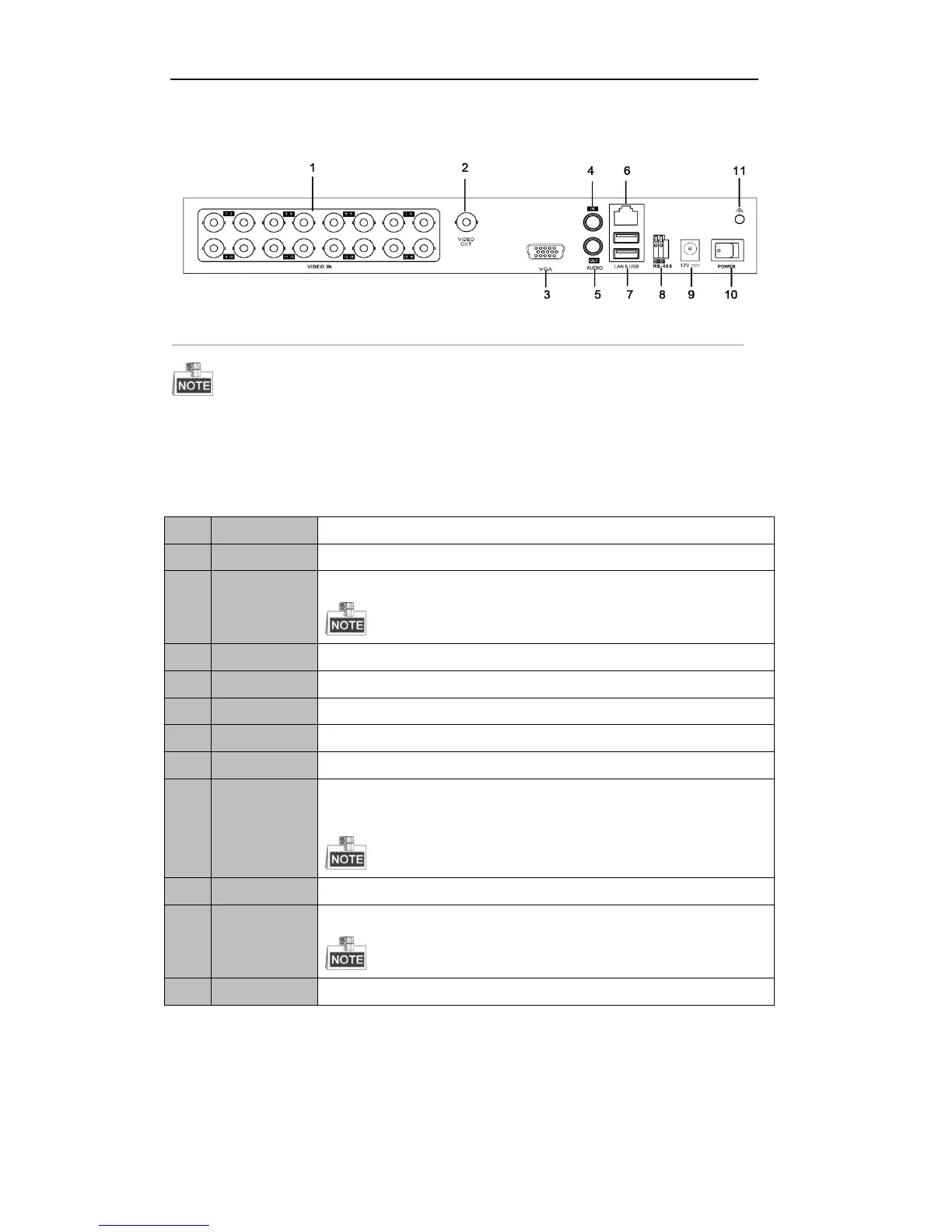

The rear panel of DS-7216HI-SL is shown below:
Figure 1. 5 Rear Panel of DS-7216HI-SL
 The DS-7204HI-SL/E1 provides 4 video input interfaces and the DS-7208HI-SL/E1 provides 8 video
input interfaces on the rear panel.
 The DS-7200HI-E1 series provides no CVBA video output interface by default.
 The DS-7200HI-E1 series provide no RS-485 serial interface and POWER switch.
Table 3.6 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC connector for analog video input.
2
VIDEO OUT
BNC connector for video output.
The DS-7200HI-E1 series provide no CVBS video output interface.
3
VGA
DB15 connector for VGA output. Display local video output and menu.
4
AUDIO IN
RCA connector for audio input.
5
AUDIO OUT
RCA connector for audio output.
6
LAN Interface
RJ45 10M / 100M Ethernet interface.
7
USB Interface
Connects USB mouse or USB flash memory devices.
8
RS-485
Interface
Connector for RS-485 devices. Connect the D+ and D- terminals to R+ and R-
terminals of PTZ receiver respectively.
The DS-7200HI-E1 series provide no RS-485 serial interface.
9
12V
12VDC power supply.
10
POWER
Switch for turning on/off the device.
The DS-7200HI-E1 series provide no POWER switch.
11
GND
Ground (needs to be connected when DVR starts up)
