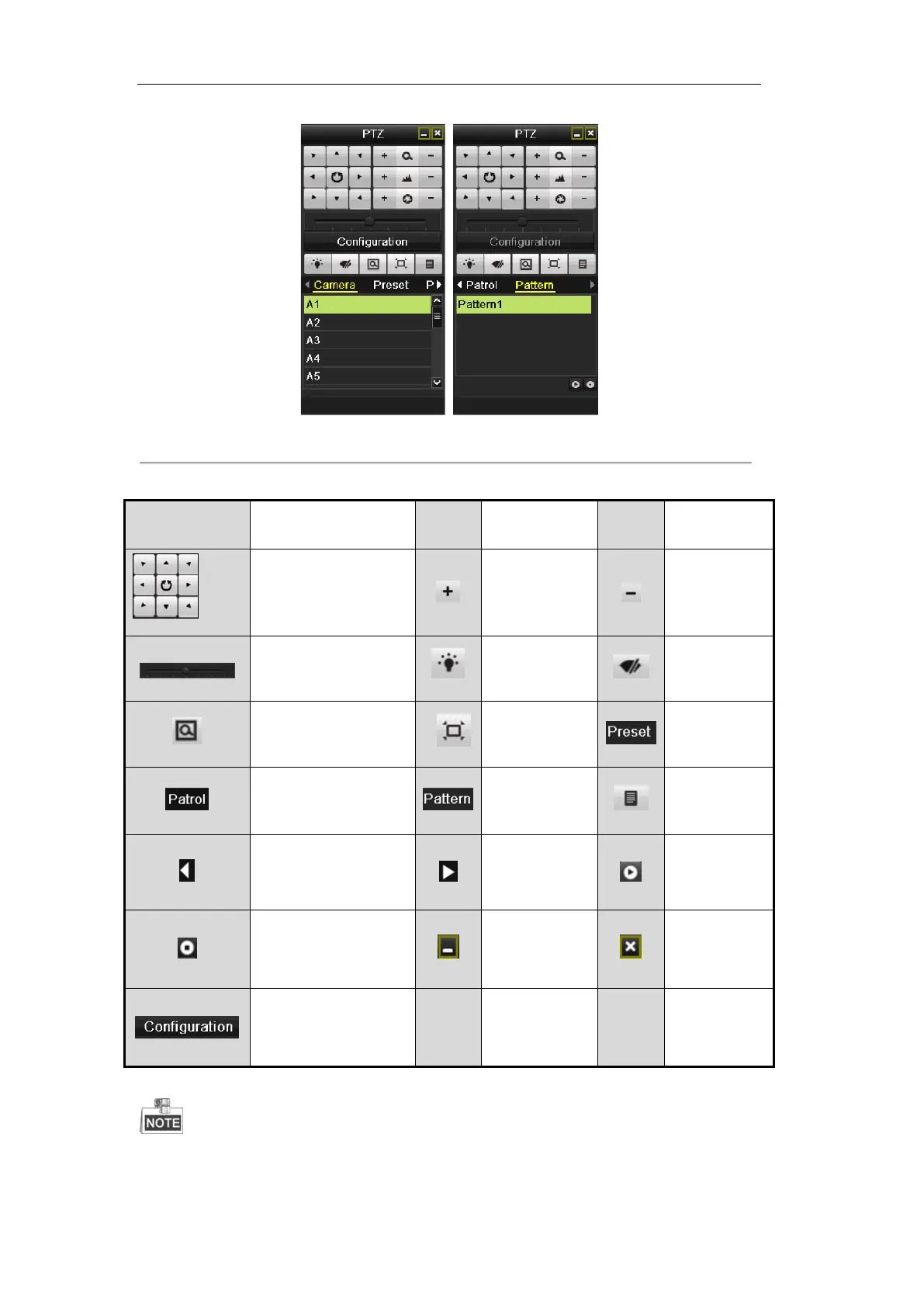

Figure 4.14 PTZ Toolbar
Table 4.1 Description of the PTZ toolbar icons
Icon
Description
Icon
Description
Icon
Description
Direction button and the
auto-cycle button
Zoom+, Focus+,
Iris+
Zoom-, Focus-,
Iris-
The speed of the PTZ
movement
Light on/off
Wiper on/off
3D-Zoom
Centralization
Preset
Patrol
Pattern
Menu
Previous item
Next item
Start
pattern/patrol
Stop the patrol or pattern
movement
Minimize
windows
Exit
Enter the PTZ settings
menu

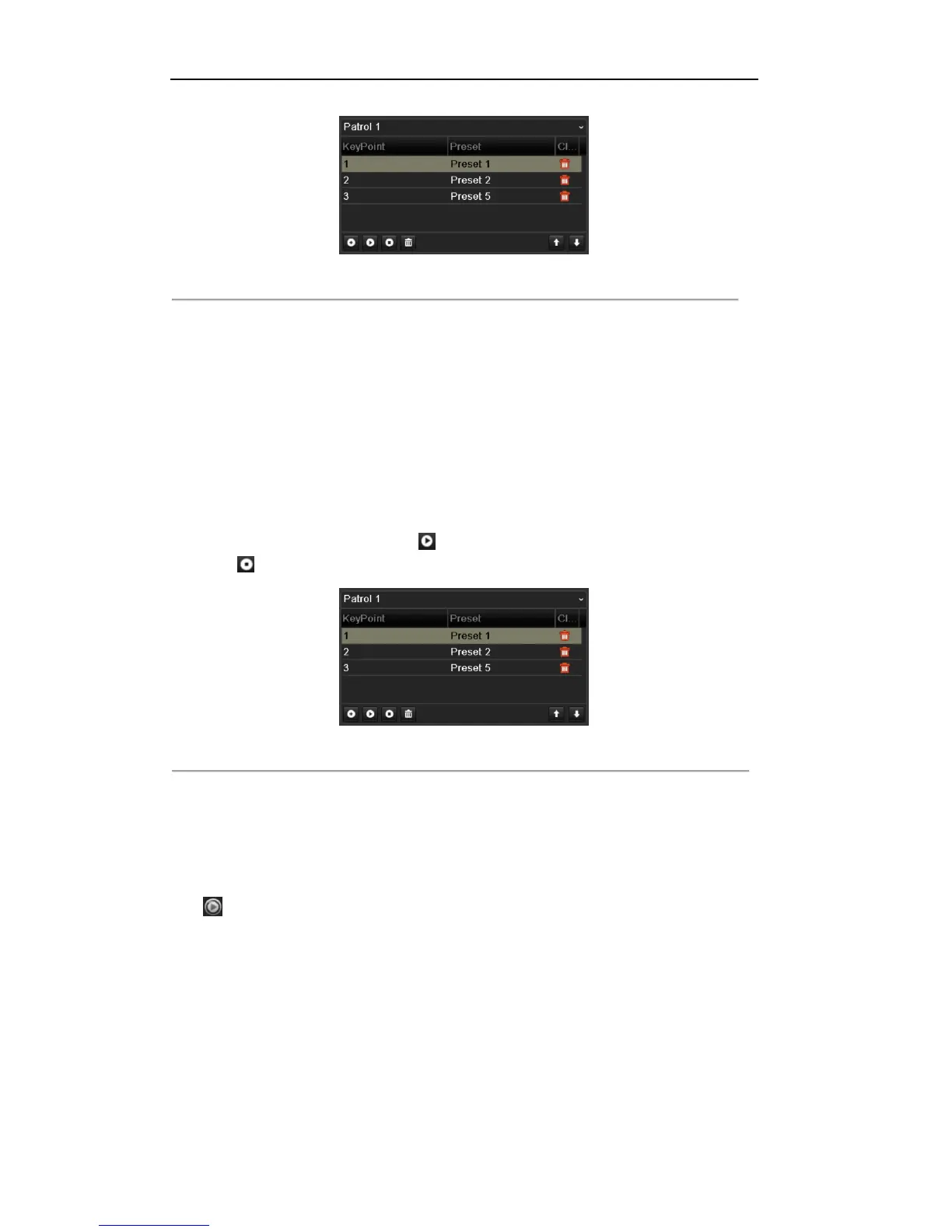

You can click the Configuration button to enter the PTZ settings menu. Please refer to Chapter 4.1
Configuring PTZ Settings for details.
