Network Video Recorder User Manual
41

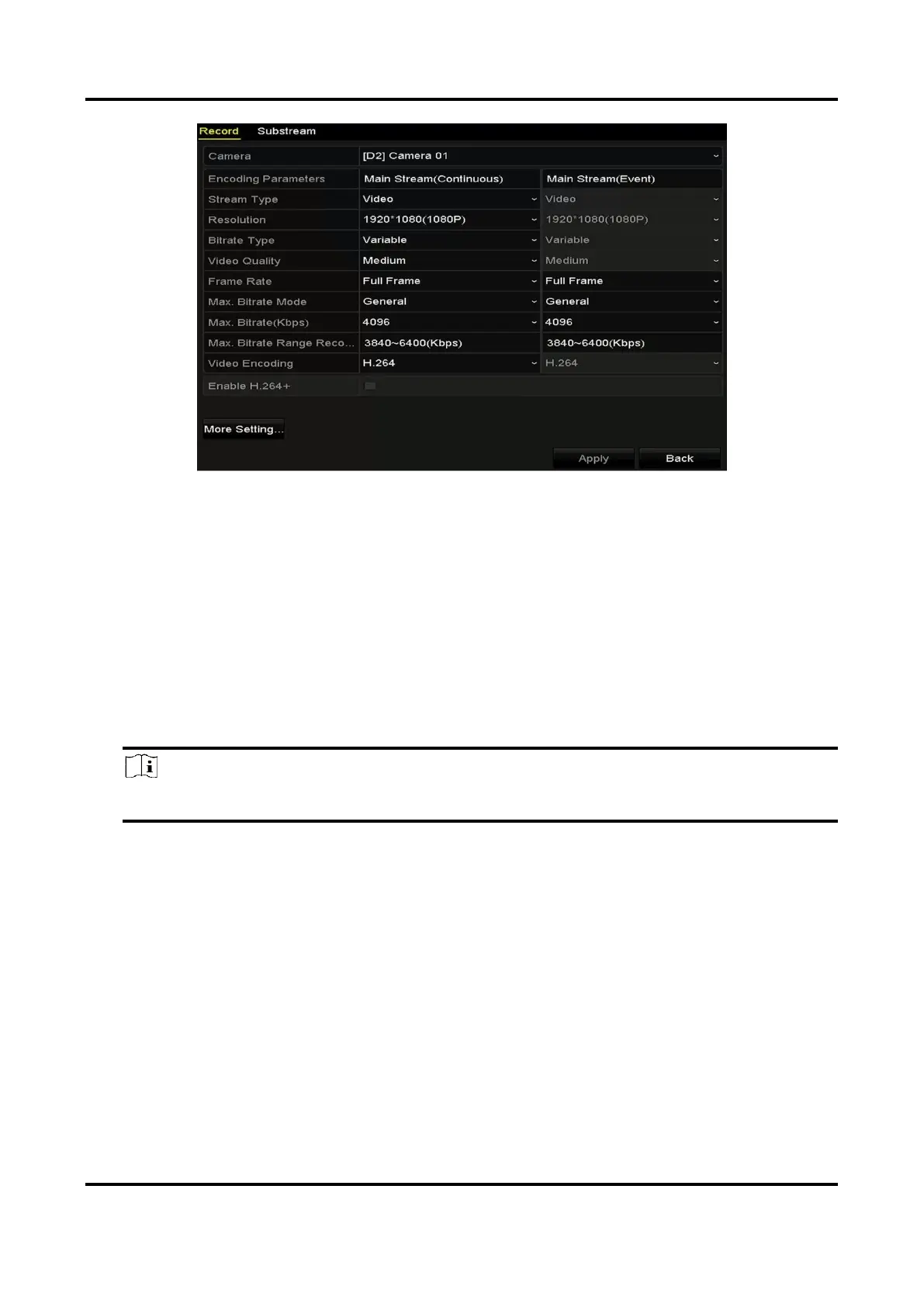

Figure 4-3 Recording Parameters
2. Set Recording Parameters.
1. Select Record. You can configure the stream type, the resolution, and other parameters on
your demand.
Video Encode
select the video encoding to H.265 or H.264.
Enable H.264+ Mode
check the checkbox to enable. Once enabled, the Max. Bitrate Mode, Max. Bitrate(Kbps)
and Max. Bitrate Range Recommend are not configurable. Enabling it helps to ensure the
high video quality with a lowered bitrate.
Note
The H.265 and H.264+ should be supported by the connected IP camera.
2. Click More Settings to set the advanced parameters for recording and then click OK to
finish editing.
