Network Video Recorder User Manual
51

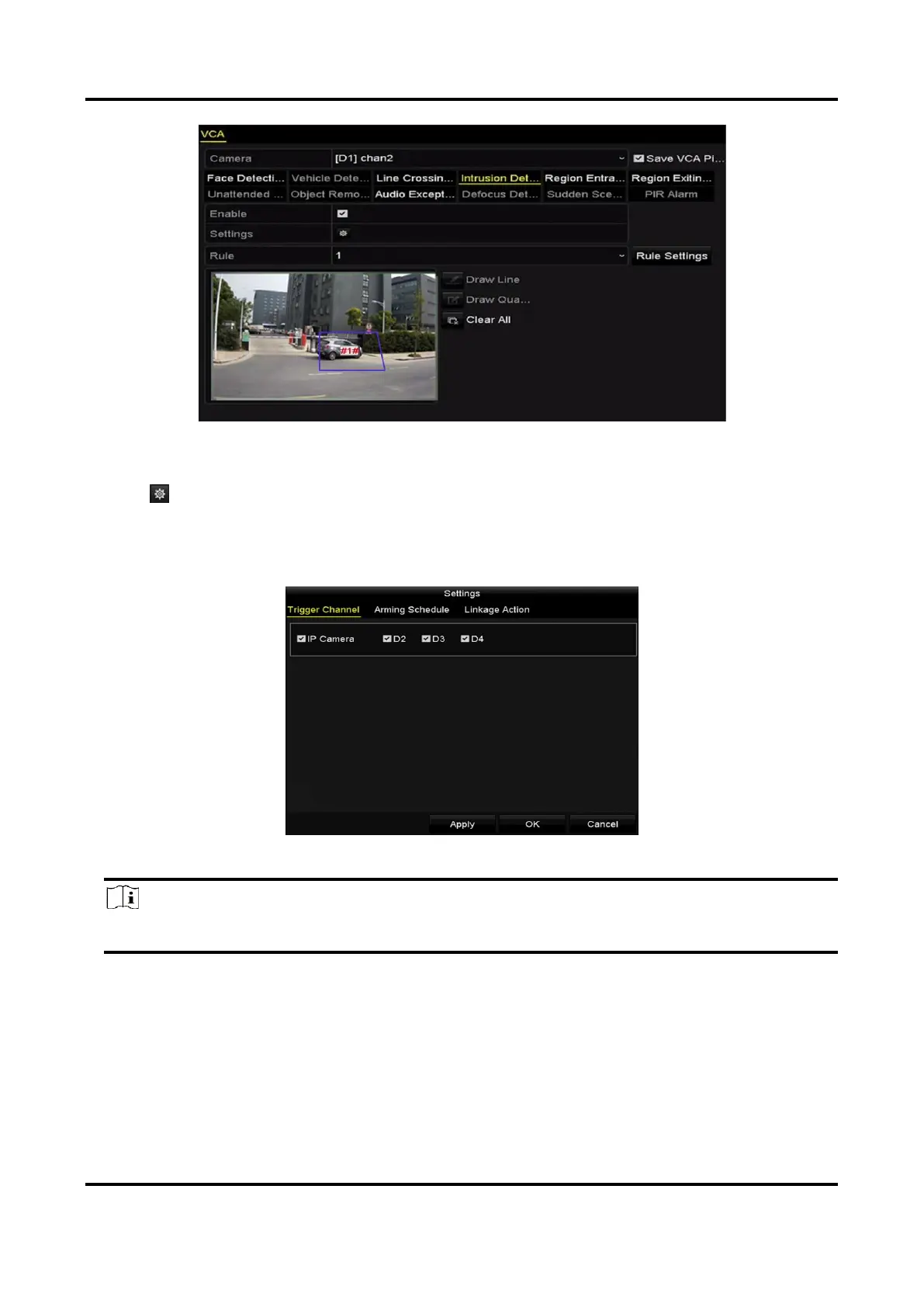

Figure 4-17 VCA Settings
2. Configure the detection rules for VCA events. For details, please refer to .
3. Click to configure the alarm linkage actions for the VCA events.
4. Select Trigger Channel and select one or more channels which will start to record when VCA
alarm is triggered.
5. Click Apply to save the settings.
Figure 4-18 Set Trigger Camera of VCA Alarm
Note
The PTZ Linking function is only available for the VCA settings of IP cameras.
6. Go to Menu → Record → Schedule → Record Schedule, and then set VCA as the record type.
For details, see step 2 in Configure Recording Schedule.
4.6 Manual Recording
Follow the steps to set parameters for the manual recording and continuous capture. Using
