HIKVISION DS-7104HGHI-F1/N User Manual

Digital Video Recorder User Manual
105

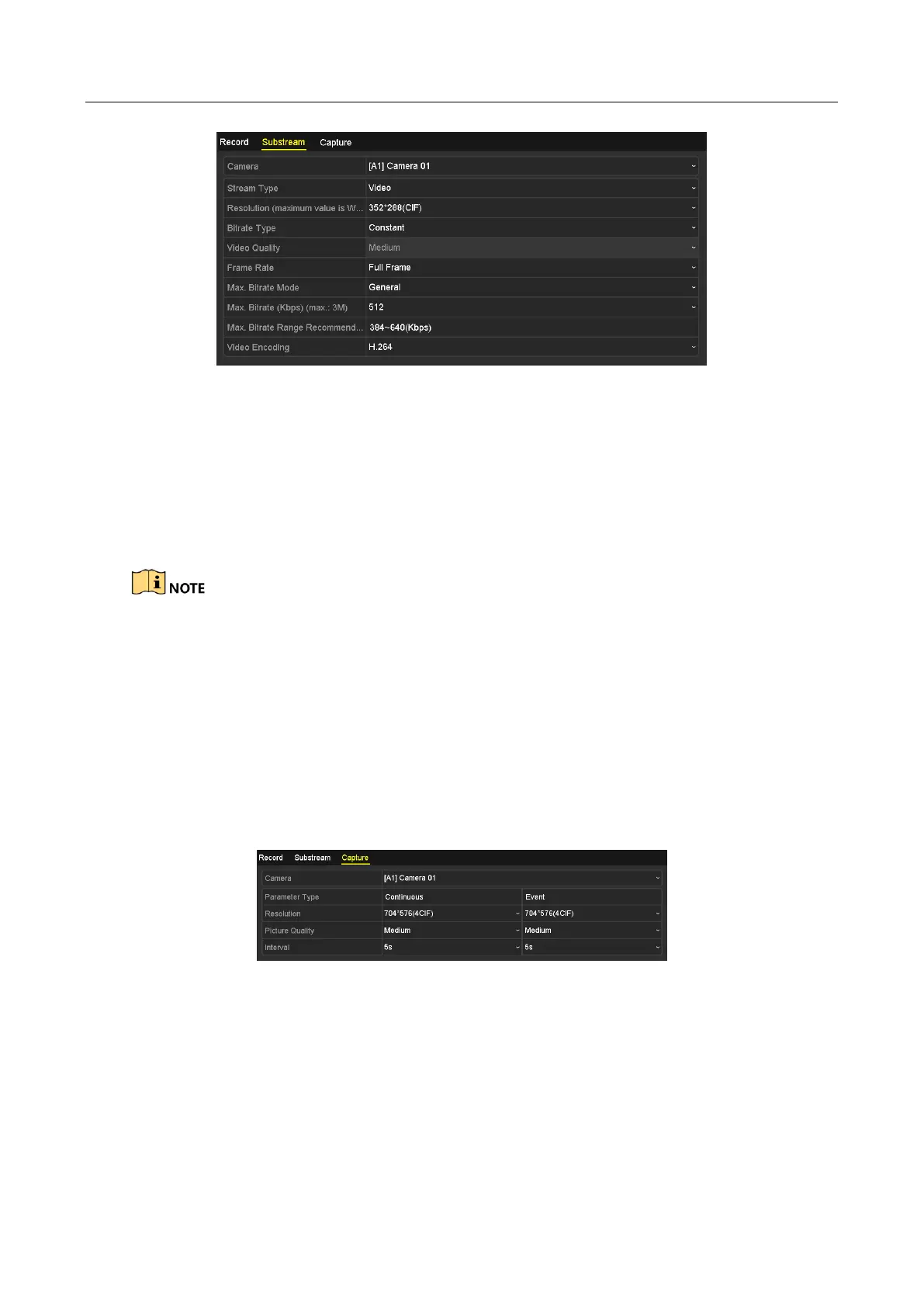

Figure 5-6 Sub-Stream Encoding
2) Select a camera in the camera dropdown list.
3) Configure the parameters.
4) Click Apply to save the settings.
5) (Optional) If the parameters can also be used to other cameras, click Copy to copy the
settings to other channels.

For DS-7200/7300/7600/8100/9000HUHI-F/N series, when 3 MP signal input is connected,
the resolution of sub-stream does not support QVGA/QCIF. It will adjust to CIF
automatically in this condition.

For DS-7200/7300/7600/8100/9000HUHI-F/N series, when 3 MP signal input is connected,
the frame rate of sub-stream cannot exceed 15 fps.

For HQHI-F/N series, when 3 MP signal input is connected, the frame rate of sub-stream
cannot exceed 12 fps.
Step 2 Set parameters for capture.
1) Select the Capture tab.
Figure 5-7 Capture Settings
2) Select a camera in the camera dropdown list.
3) Configure the parameters.
4) Click Apply to save the settings.
5) (Optional) If the parameters can also be used to other cameras, click Copy to copy the
settings to other channels.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
