HIKVISION DS-7104HGHI-F1/N User Manual

Digital Video Recorder User Manual
146

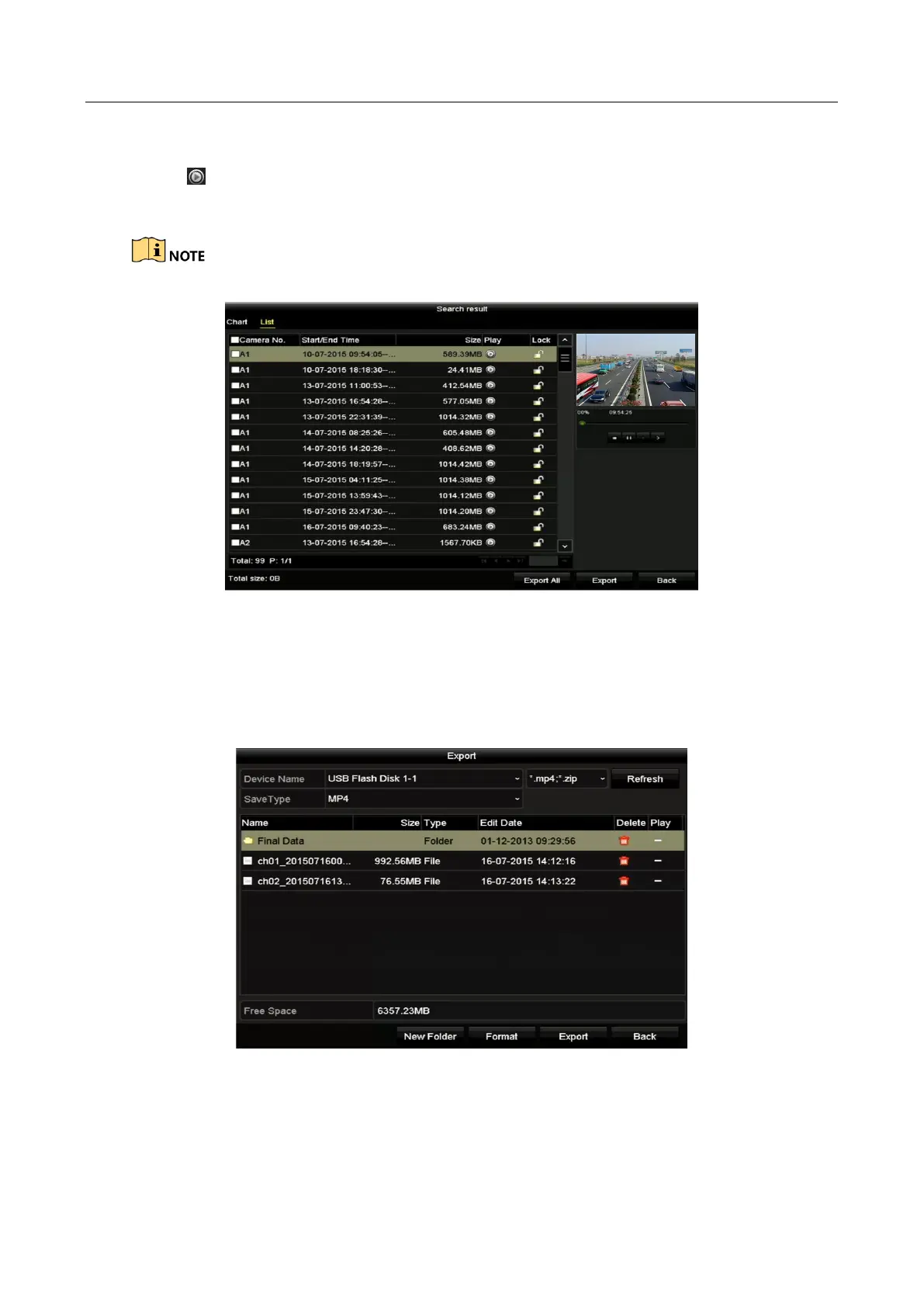

Step 4 The matched video files are displayed in Chart or List display mode.
Click to play the record file if you want to check it.
Check the checkbox before the video files you want to back up.
The size of the currently selected files is displayed in the lower-left corner of the window.
Figure 7-2 Result of Normal Video Search for Backup
Step 5 Select video files from the Chart or List to export, and click the button Export to enter the
Export interface.
You can also click Export All to select all the video files for backup and enter the Export
interface.
Figure 7-3 Export by Normal Video Search using USB Flash Drive
Step 6 Select the backup device from the drop-down list and you can also select the file format to
filter the files existing in the backup device.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
