HIKVISION DS-7104HGHI-F1/N User Manual

Digital Video Recorder User Manual
166

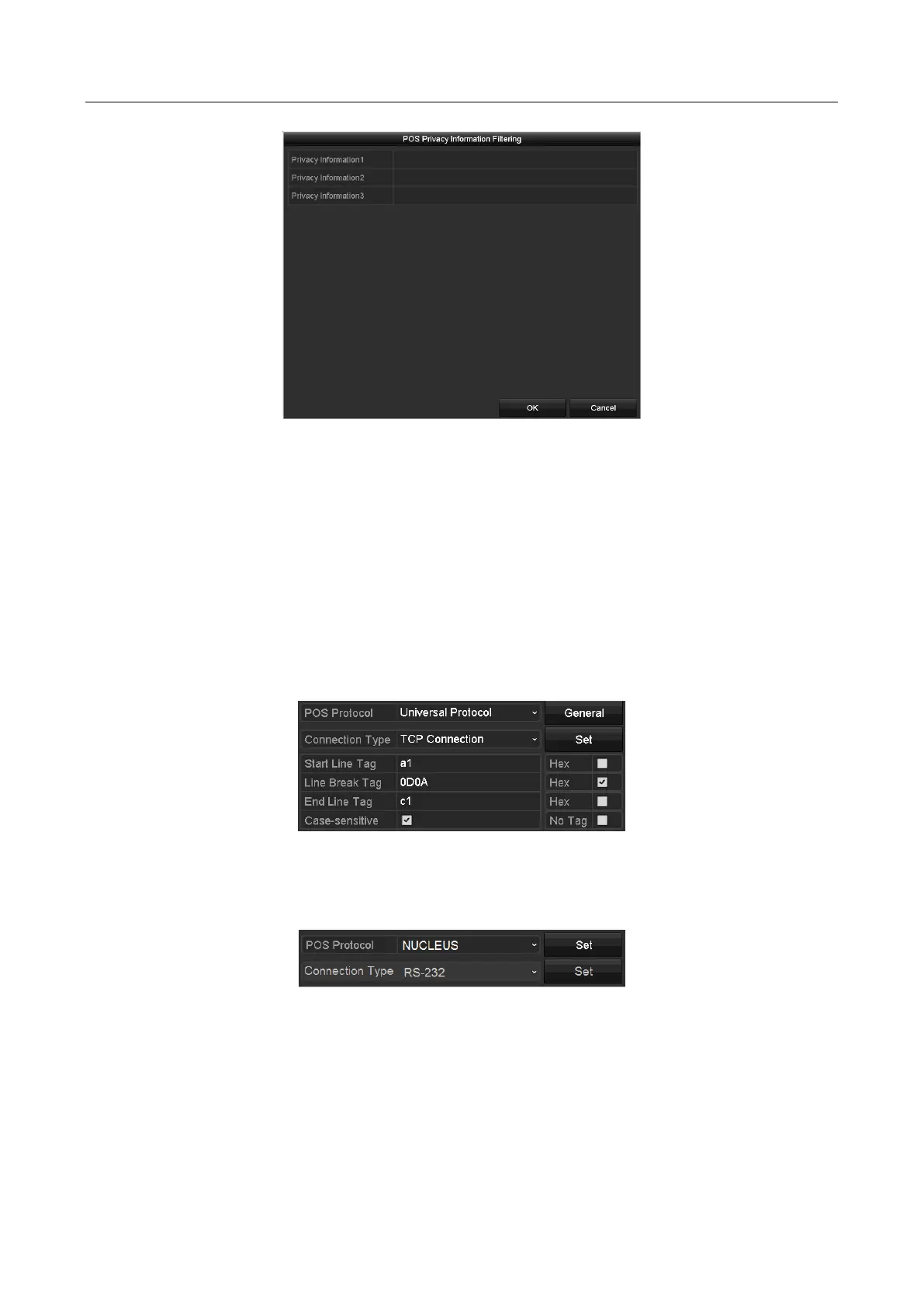

Figure 9-2 POS Privacy Information Filtering
2) Edit the Privacy Information in the text filed to hide the input information overlay. Up to 3
pieces of privacy information can be edited and no more than 32 characters can be input
for each piece of information.
3) Click OK to save the settings.
Step 5 Select the POS protocol to Universal Protocol, EPSON, AVE or NUCLEUS.
 Universal Protocol
Click the Advanced button to expand more settings when selecting the universal protocol. You
can set the start line tag, line break tag and end line tag for the POS overlay characters, and
the case-sensitive property of the characters.
Figure 9-3 Universal Protocol Settings
 NUCLEUS
If you select NUCLEUS protocol, reboot the device to take the new settings into effect.
Figure 9-4 NUCLEUS Protocol Settings
1) Click Set button to enter the NUCLEUS Settings interface.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
