Digital Video Recorder User Manual
176
You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Step 3 Select the VCA detection type to Vehicle Detection.
Step 4 Check the Enable checkbox to enable this function.

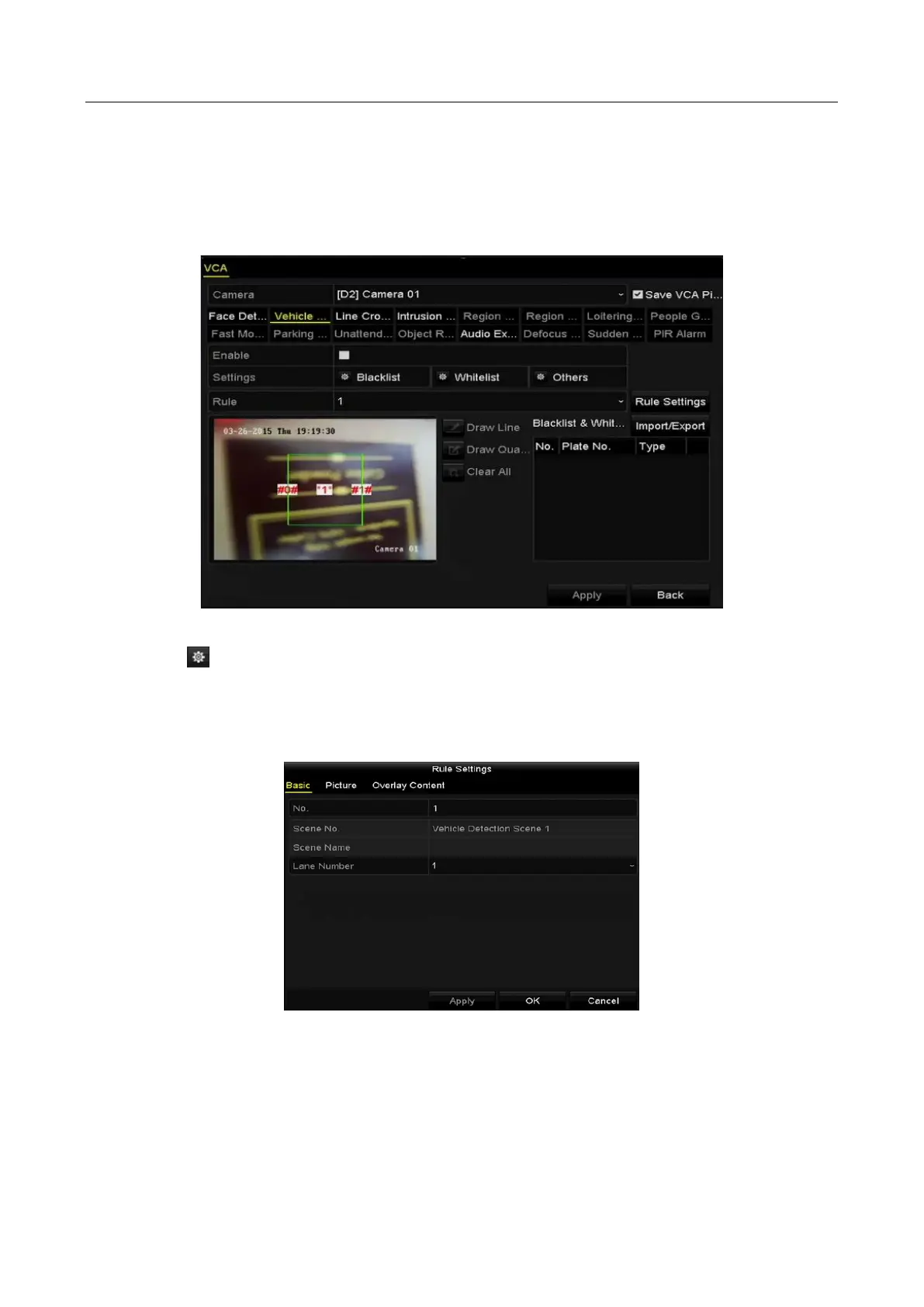

Figure 10-3 Set Vehicle Detection
Step 5 Click to configure the trigger channel, arming schedule and linkage actions for the
Blacklist, Whitelist and Others.
Step 6 Click the Rule Settings to enter the rule settings interface. Configure the lane, upload
picture and overlay content settings. Up to 4 lanes are selectable.
Figure 10-4 Rule Settings
Step 7 Click Save to save the settings.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
