HIKVISION DS-7104HGHI-F1/N User Manual

Digital Video Recorder User Manual
25

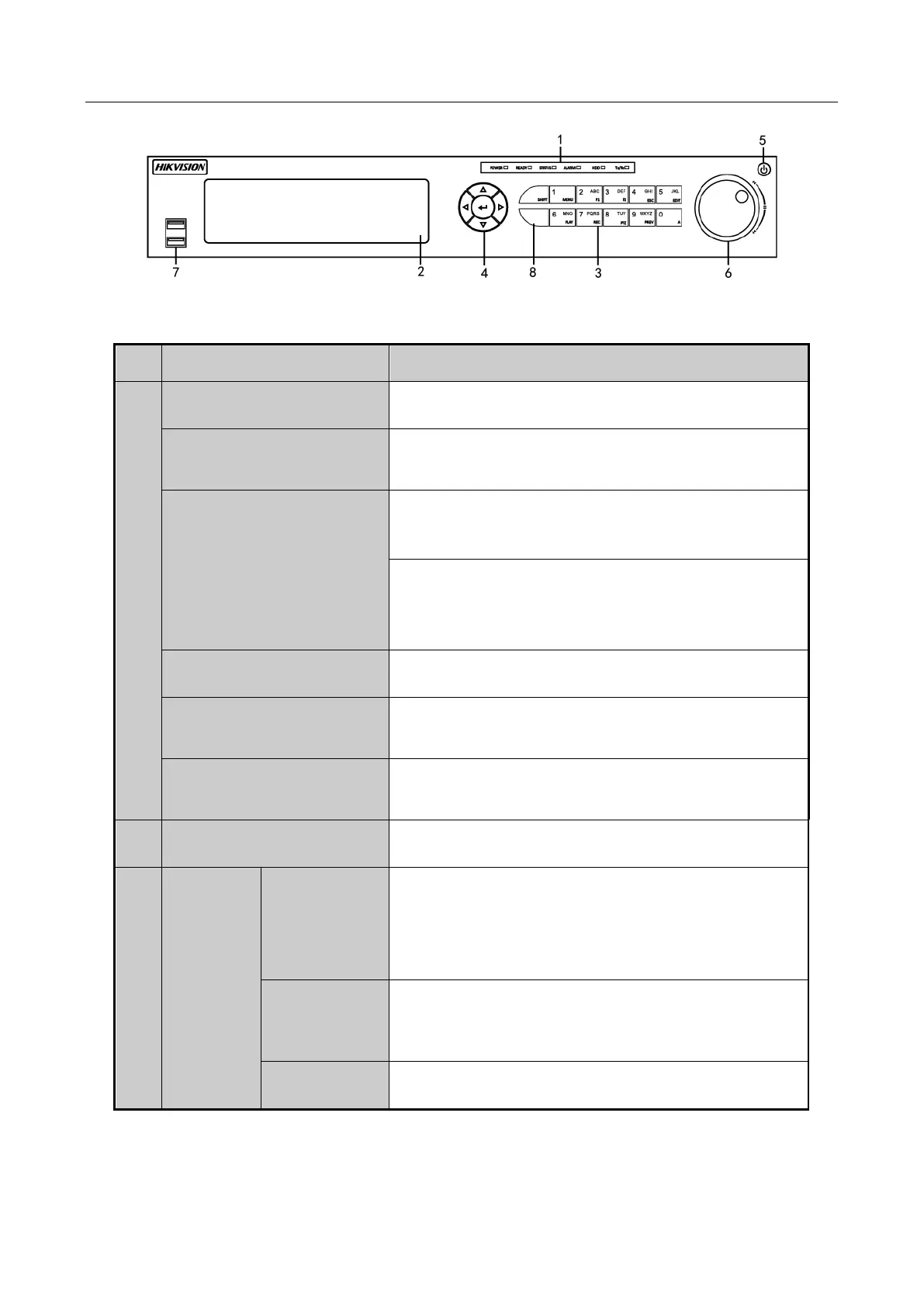

Figure 1-5 Front Panel of DS-7300HQHI-F/N and DS-7300HUHI-F/N
Table 1-4 Description of Front Panel
No.
Name
Function Description
1
POWER
Turns green when DVR is powered up.
READY
Turns green, indicating that the DVR is functioning
properly.
STATUS
Turns green when device is controlled by an IR
remote.
Turns red when controlled by a keyboard and purple
when IR remote and keyboard is used at the same
time.
ALARM
Turns red when a sensor alarm is detected.
HDD
Flickers in red when data is being read from or
written to HDD.
Tx/Rx
Flickers in green when network connection is
functioning properly.
2
DVD-R/W
Slot for DVD-R/W.
3
Composite
Keys
SHIFT
Switches between the numeric or letter input and
functions of the composite keys. (Input letter or
numbers when the light is out; Realize functions
when the light is red.)
1/MENU
Enters numeral “1”;
Accesses the main menu interface.
2/ABC/F1
Enters numeral “2”;

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
