HIKVISION DS-7104HGHI-F1/N User Manual

Digital Video Recorder User Manual
264

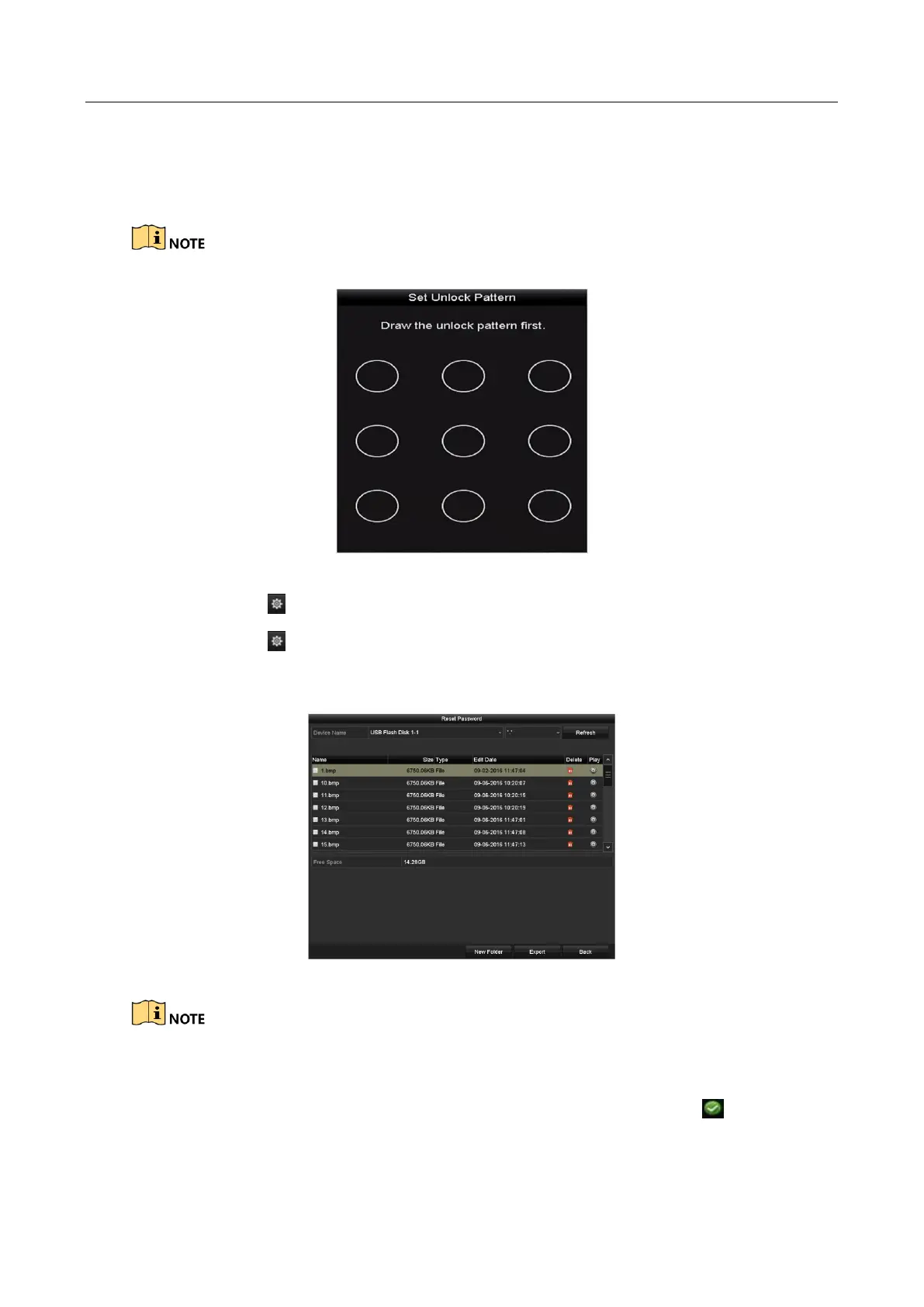

2) Use the mouse to draw a pattern among the 9 dots on the screen. Release the mouse
when the pattern is done.
3) Confirm the pattern again with the mouse.
Please refer to Chapter 2.3.1 Configuring the Unlock Pattern for detailed instructions.
Figure 17-18 Set Unlock Patter for Admin User
Step 6 (Optional) Click icon after Draw Unlock Pattern to modify the pattern.
Step 7 (Optional) Click icon after Export GUID to pop up the Reset Password interface. Click
Export button to export GUID to the USB flash disk for retrieving the forgotten password.
Then a GUID file will be saved in the USB flash disk.
Figure 17-19 Export GUID
You must input the correct old password of the admin before exporting GUID.
Step 8 Click the OK button to save the settings and exit from the menu.
Step 9 (Optional) For the Operator or Guest user account, you can also click the button on
the User Management interface to edit the permission.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
