HIKVISION DS-7104HGHI-SH User Manual

User Manual of Digital Video Recorder
119
Time periods shall not be repeated or overlapped.

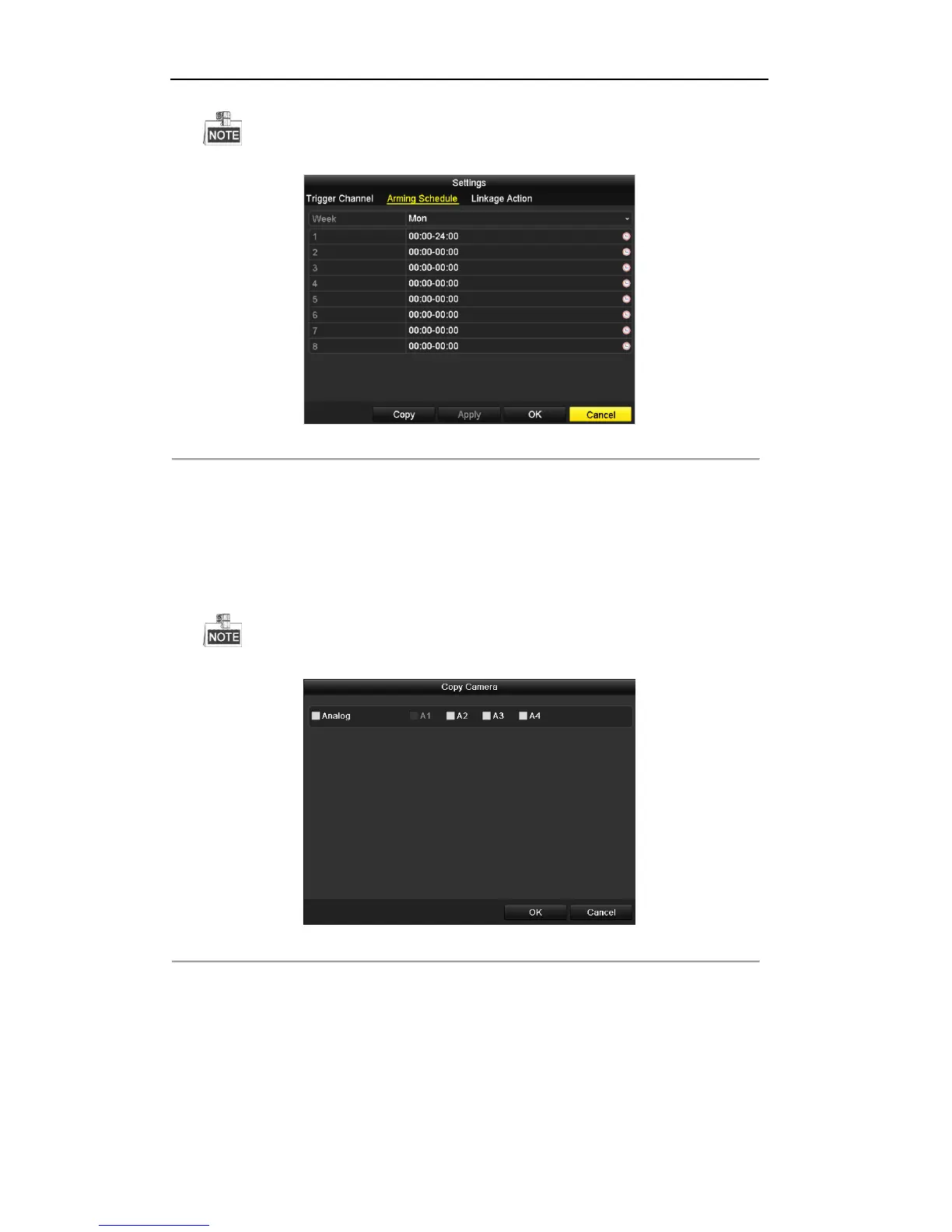

Figure 8. 4 Set Arming Schedule of Motion Detection
5. Click Linkage Action tab to set up alarm response actions of motion alarm (please refer to Chapter 8.7
Setting Alarm Response Actions).
Repeat the above steps to set up arming schedule of other days of a week.
Click the OK button to complete the motion detection settings of the channel.
6. If you want to set motion detection for another channel, repeat the above steps or just copy the above
settings to it.
You are not allowed to copy the “Trigger Channel” action.
Figure 8. 5 Copy Settings of Motion Detection

HIKVISION DS-7104HGHI-SH Specifications

General

Voltage	12 V
Certification	CE
Product color	White
LED indicators	Yes
Channels quantity	4 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	4
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power requirements	DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
