HIKVISION DS-7104HGHI-SH User Manual

User Manual of Digital Video Recorder
177
12.1.3 Viewing Record Information
Steps:
1. Enter the System Information interface.
Menu > Maintenance > System Info
2. Click the Record tab to enter the Record Information menu to view the recording status encoding parameters
of each camera, as shown in Figure 12. 3.

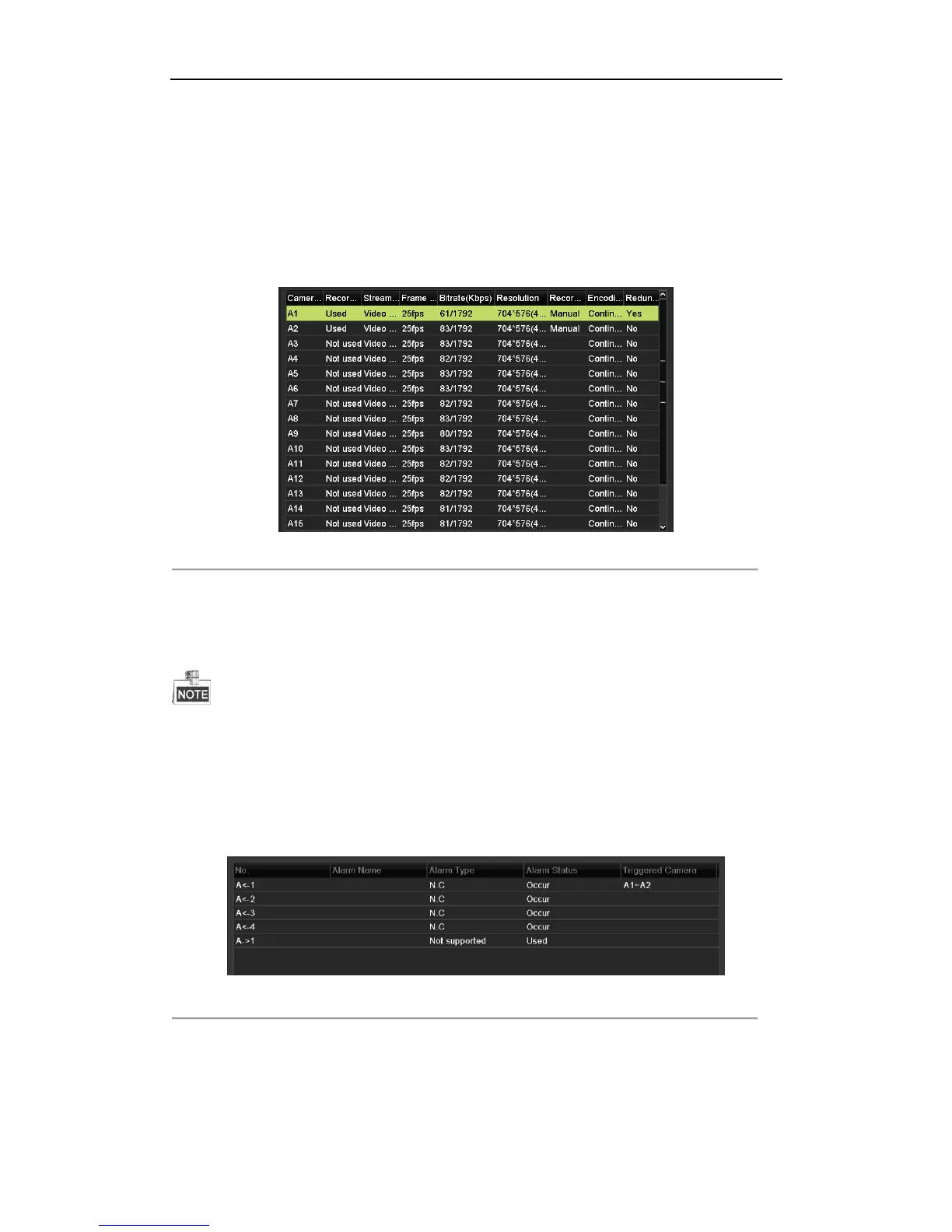

Figure 12. 3 Record Information Interface
12.1.4 Viewing Alarm Information
This function is not supported by DS-7100HGHI-SH and DS-7200HGHI-SH series DVR.
Steps:
1. Enter the System Information interface.
Menu > Maintenance > System Info
2. Click the Alarm tab to enter the Alarm Information menu to view the alarm information, as shown in Figure
12. 4.
Figure 12. 4 Alarm Information Interface

HIKVISION DS-7104HGHI-SH Specifications

General

Voltage	12 V
Certification	CE
Product color	White
LED indicators	Yes
Channels quantity	4 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	4
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power requirements	DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
