HIKVISION DS-7104HGHI-SH User Manual

User Manual of Digital Video Recorder
184
12.4 Importing/Exporting Configuration Files
Purpose:
The configuration files of the DVR can be exported to local device for backup; and the configuration files of one
DVR can be imported to multiple DVR devices if they are to be configured with the same parameters.
Steps:
1. Enter the Import/Export Configuration File interface.
Menu > Maintenance > Import/Export

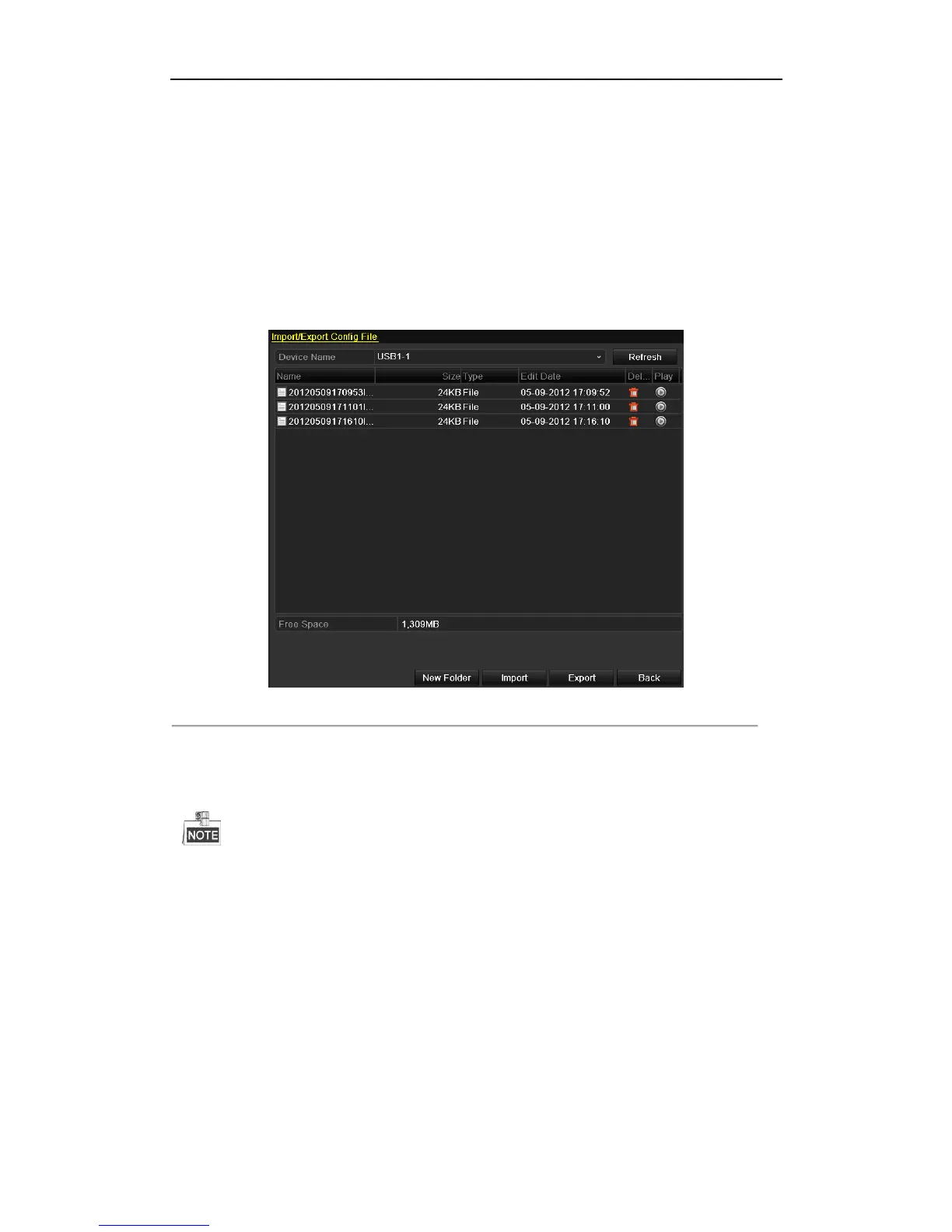

Figure 12. 11 Import/Export Config File
2. Click the Export button to export configuration files to the selected local backup device.
3. To import a configuration file, select the file from the selected backup device and click the Import button.
After the import process is completed, you must reboot the DVR.
After having finished the import of configuration files, the device will reboot automatically.

HIKVISION DS-7104HGHI-SH Specifications

General

Voltage	12 V
Certification	CE
Product color	White
LED indicators	Yes
Channels quantity	4 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	4
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power requirements	DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
