HIKVISION DS-7104HGHI-SH User Manual

User Manual of Digital Video Recorder
174
11.3 Configuring Video Parameters
Steps:
1. Enter the Image Settings interface.
Menu > Camera > Image

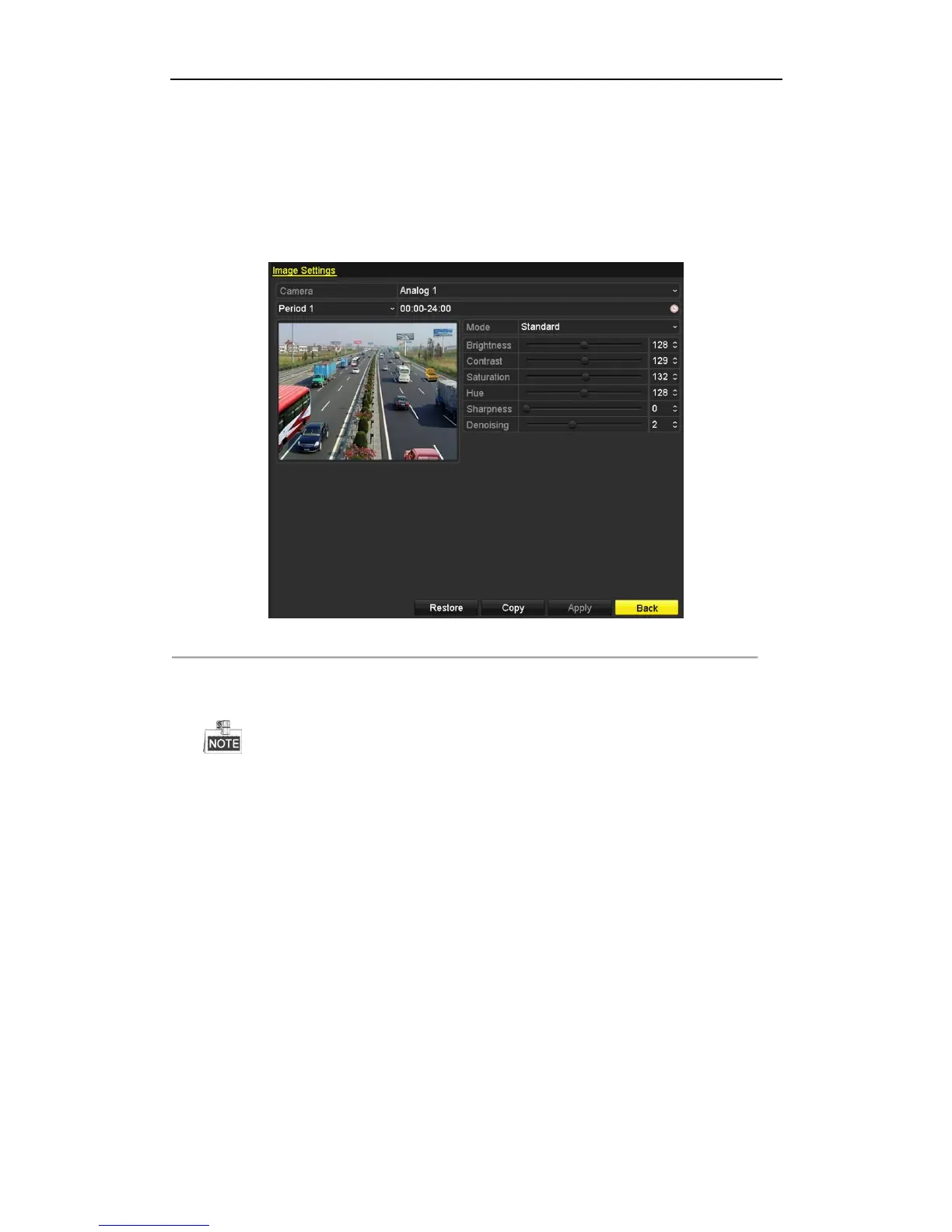

Figure 11. 5 Image Settings Interface
2. Select the camera to set image parameters.
3. Two periods for different image settings are provided, select the period name in the dropdown list.
The time periods cannot be overlapped with each other.
4. Select the mode from the drop-down list of Mode, there are four modes selectable: Standard, Indoor, Dim
Light and Outdoor.
5. Adjust the image parameters according to actual needs. The parameters include Brightness, Contrast,
Saturation, Hue, Sharpness and Denoising. You can also click Restore to set the parameters to the default
settings.
6. You can click Copy to copy the image settings of the current camera to other analog cameras.
7. Click Apply to save the settings.

HIKVISION DS-7104HGHI-SH Specifications

General

Voltage	12 V
Certification	CE
Product color	White
LED indicators	Yes
Channels quantity	4 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	4
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power requirements	DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
