HIKVISION DS-7104HGHI-SH User Manual

User Manual of Digital Video Recorder
167
10.6 Checking HDD Status
Purpose:
You may check the status of the installed HDDs on DVR so as to take immediate check and maintenance in case
of HDD failure.
Checking HDD Status in HDD Information Interface
Steps:
1. Enter the HDD Information interface.
Menu > HDD>General

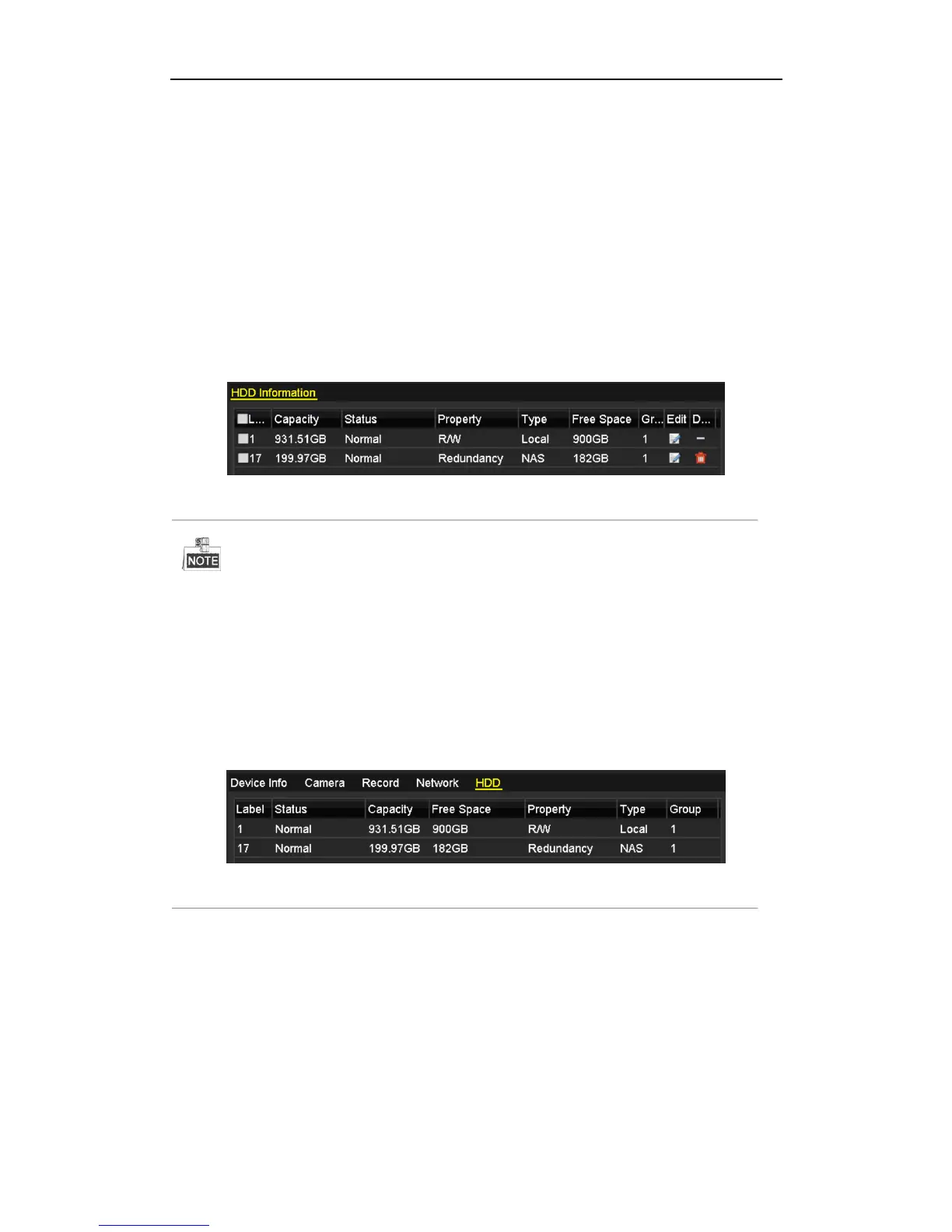

2. Check the status of each HDD which is displayed on the list, as shown in Figure 10. 20.
Figure 10. 20 View HDD Status (1)
If the status of HDD is Normal or Sleeping, it works normally. If the status is Uninitialized or Abnormal,
please initialize the HDD before use. And if the HDD initialization is failed, please replace it with a new
one.
Checking HDD Status in System Information Interface
Steps:
1. Enter the System Information interface.
Menu > Maintenance > System Info
2. Click the HDD tab to view the status of each HDD displayed on the list, as shown in Figure 10. 21.
Figure 10. 21 View HDD Status (2)

HIKVISION DS-7104HGHI-SH Specifications

General

Voltage	12 V
Certification	CE
Product color	White
LED indicators	Yes
Channels quantity	4 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	4
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power requirements	DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
