press【EDIT】, you will find the yellow pane is turned into black pane. You can use【↓】【→】
key to enlarge or shrink the blue area. Press【EDIT】key to clear this part motion area.
Press【Enter】key to save and return “Image” menu. Press【ESC】to cancel.
Clear all motion areas: Press【A】key to clear all motion areas of this channel.
The keys used to setup motion areas are following:
z 【↑】【↓】【←】【→】: Move yellow panel to any position;
z 【EDIT】:Yellow panel and red panel switch key:;
z 【→】: Right enlarge red pane;
z 【←】: Left shrink red pane;
z 【↓】: Down enlarge red pane;
z 【↑】: Up shrink red pane;
z 【PTZ】: Set whole screen as motion area;
z 【A】: Clear all motion areas;
z 【ENTER】: Save and return “Image Setup” menu;
z 【ESC】: Cancel setup and return “Image Setup” menu;
Step 5: Motion alarm policy: Move “Active Frame” to the corresponding “Policy” button of
motion detection alarm, press【ENTER】key to enter into “Motion Alarm Handle” menu: Shown as
fig 5.18

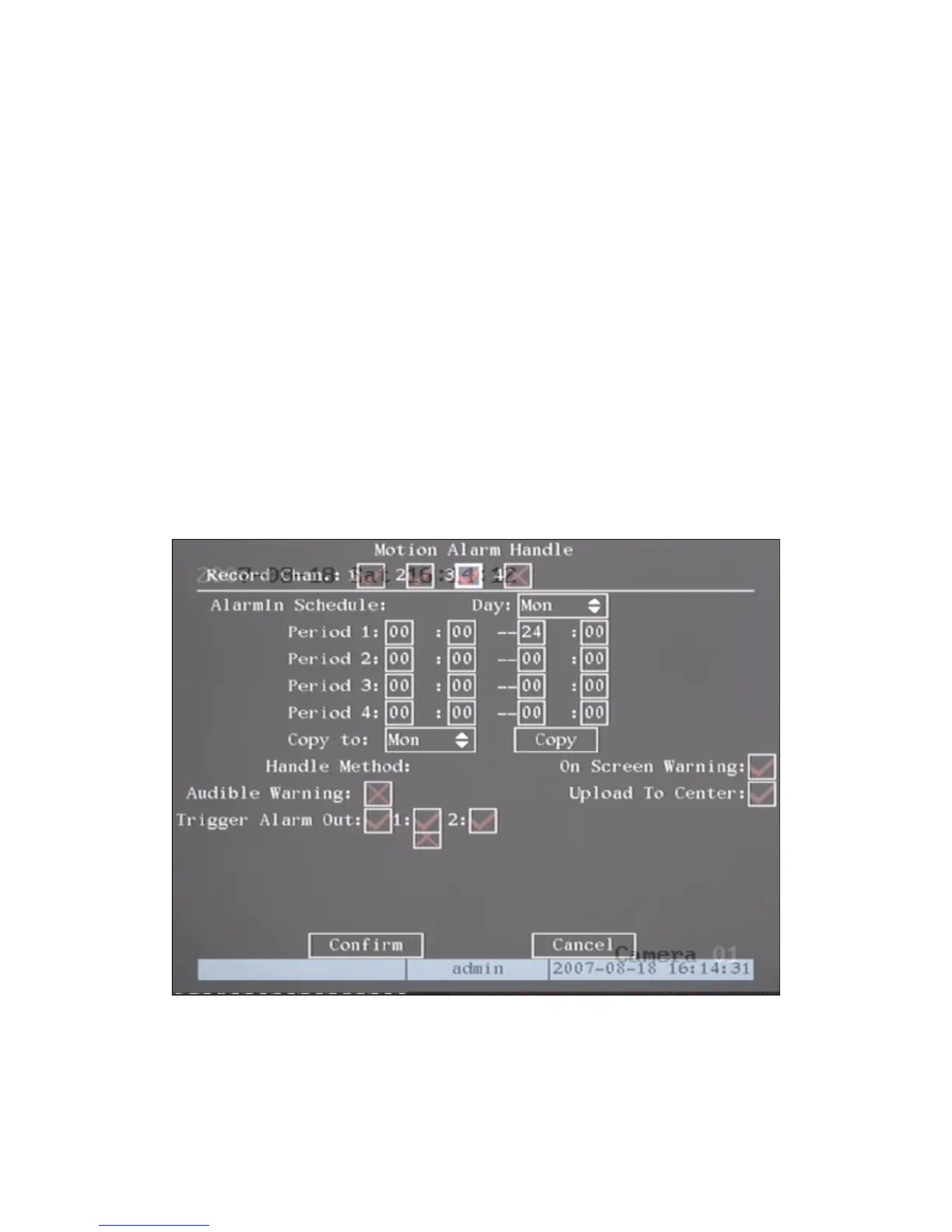

Fig 5.18 Motion alarm handle setup
Step 6: Motion alarm record channel setup: When there is motion alarm happened, you
can trigger related camera to start to record. In “Motion Alarm Handle” menu, you can select one
or more record channels. Please use【ENTER】or【EDIT】key to enable the flag into “9”.
