Step 8: PTZ Linkage
Move “Active Frame” to “PTZ Linkage” button, press【ENTER】key to enter into “PTZ
Linkage” setup menu: Shown as fig 5.24

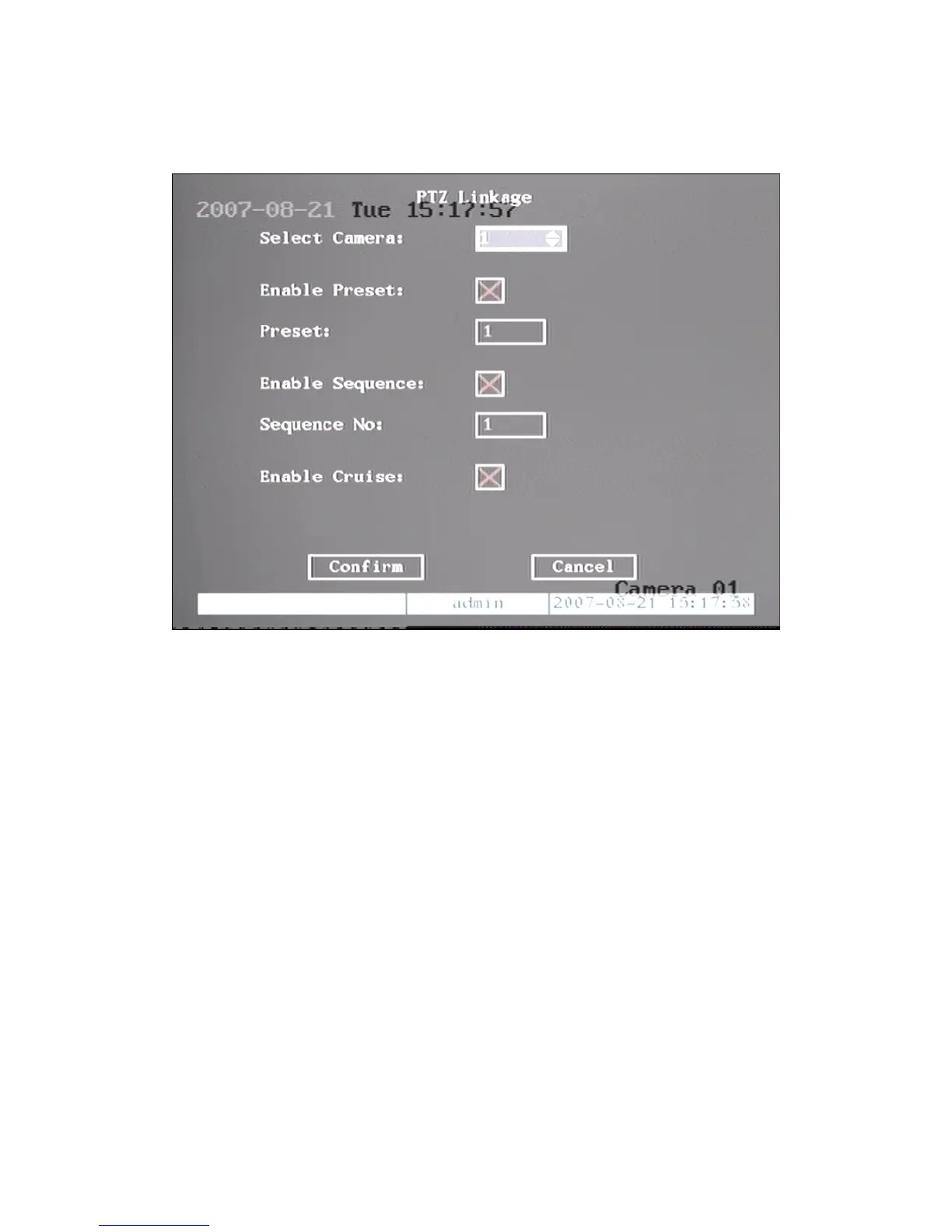

Fig 5.24 PTZ linkage setup
First select one camera, then select one of following PTZ linkage:
z Preset: Set the flag as “9” to enable preset, in the preset number edit box and input one
preset number that has been setup already. Please refer to chapter 5.15 for preset setup.
z Sequence: Set the flag as “9” to enable sequence and input one sequence number that
has been setup already. Please refer to chapter 5.15 for sequence setup.
z Cruise: Set the flag as “9” to enable cruise. Please refer to chapter 5.15 for cruise setup.
Press “Confirm” button to save and return “Alarms” menu. Press “Cancel” button or【ESC】
key to abort and return “Alarms” menu.
Note: Please make sure that the PTZ you are using can support preset, sequence and cruise
functions. One external alarm input can trigger many cameras PTZ linkage.
Step 9: Copy the parameters to other external alarm input You can copy the parameters
of current alarm input to other external input.
Step 10: Save setup In “Alarms” menu, press “Confirm” button to save the parameters.
Press “Cancel” button or【ESC】key to abort.
Alarm relay output setup
Step 1: In “Alarms” menu, use【↑】【↓】keys to select one alarm output.
