69
Remote Host IP and Port: If you set this IP and port, when there is alarm and exception
happened, DVR will send information to that host IP. The center with this IP can receive alarm
and exception information from DVR. You can use SDK to develop this center software.
HttpPort: The port is for IE browser. The default value is 80. It can be modified.
Advanced setup: Move “Active frame” to “Advanced” then press “enter” to enter into the
configure interface. Shown as fig 5.28

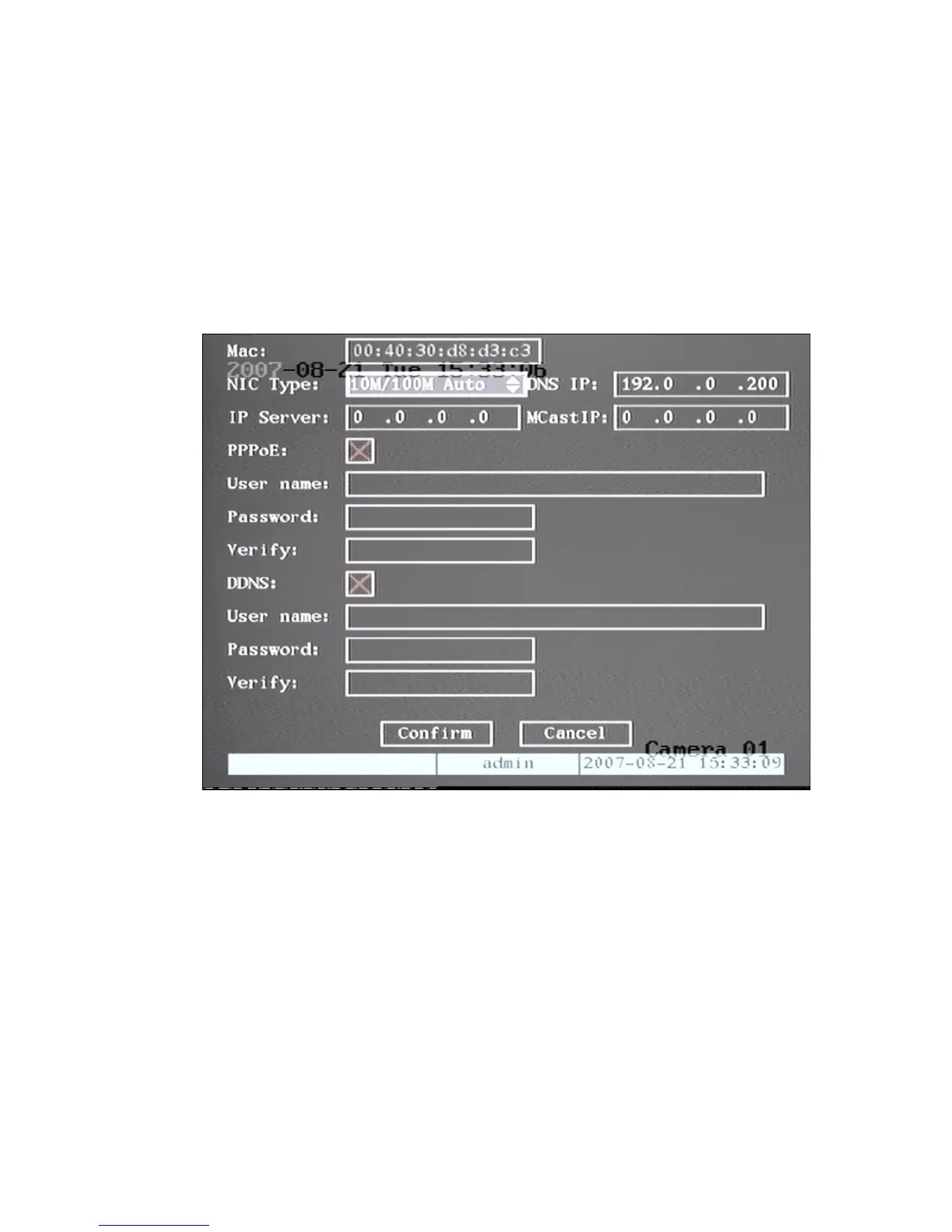

Fig 5.28 Advanced network setup
Advanced setup description :
NIC type: Defautl is “10M/100M Auto”, the other options are: 10M Half-Dup, 10M
Full-Dup, 100M Half-Dup and 100M Full-Dup.
IP server address: If DVR uses PPPoE function, and get one dynamic IP address. If you set
DNS IP with one fixed Internet IP, DVR will send some information such as DVR name, DVR
serial number, DVR current IP to that fixed IP address. We -call that fixed Internet IP as DNS IP.
The DNS server with that fixed Internet IP can receive DVR information and used to resolve DVR
dynamic IP.
This IP server is special software, not the normal domain name server. You can use the
provided SDK to develop this DNS software.
DNS IP : Get your DNS IP from your ISP . Fill in this item in order to get access to a remote
server with a domain name.
Multicast IP: It is one D-class IP address, among 224.0.0.0 --- 239.255.255.255. If you do
