User Manual of DS-7200-ST Series DVR
75

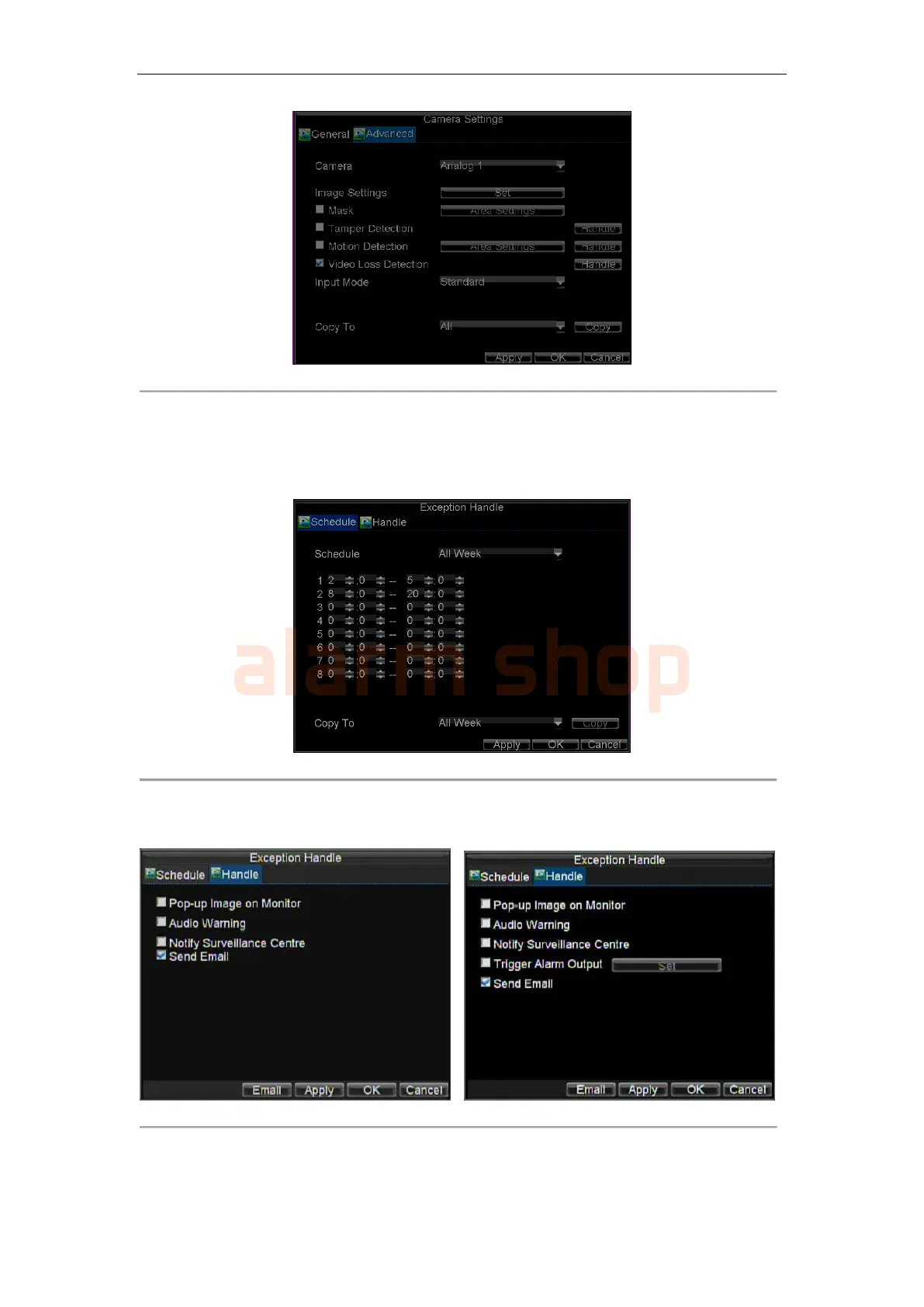

Figure 15. Camera Settings Menu
5. Click the Handle button to enter the Exception Handle menu, shown in Figure 16.
6. Select the Schedule tab. Set the schedule you want video loss detection to be enabled. Schedule
can be set for all week or any day of the week with up to 8 time periods per day.
Note: After having configured the schedule, the DVR must be restarted for the new settings to take effect.
Figure 16. Schedule Settings for Video Loss Detection
7. Select the Handle tab to configure exceptions handling. Exception trigger options will be
described in the next section (See Understanding Exception Trigger Options).
Figure 17. Exception Handle Menu
8. Click OK to finish the settings.
9. Repeat above steps to configure settings for other channels.
