Digital Video Recorder User Manual
107
M/A: recording triggered by either motion detection or alarm.
M&A: recording triggered by motion detection and alarm.
POS: recording triggered by POS and alarm.
The POS recording is supported by DS-7300/8100HQHI-F/N and DS-7300/8100/9000HUHI-F/N
series DVR only.
Step 2 Choose the camera you want to configure in the Camera dropdown list.
Step 3 Check the checkbox of Enable Schedule.
Step 4 Configure the record schedule.
Edit the schedule
1) Click Edit.
2) In the message box, you can choose the day to which you want to set schedule.
3) To schedule an all-day recording, check the checkbox after the All Day item.

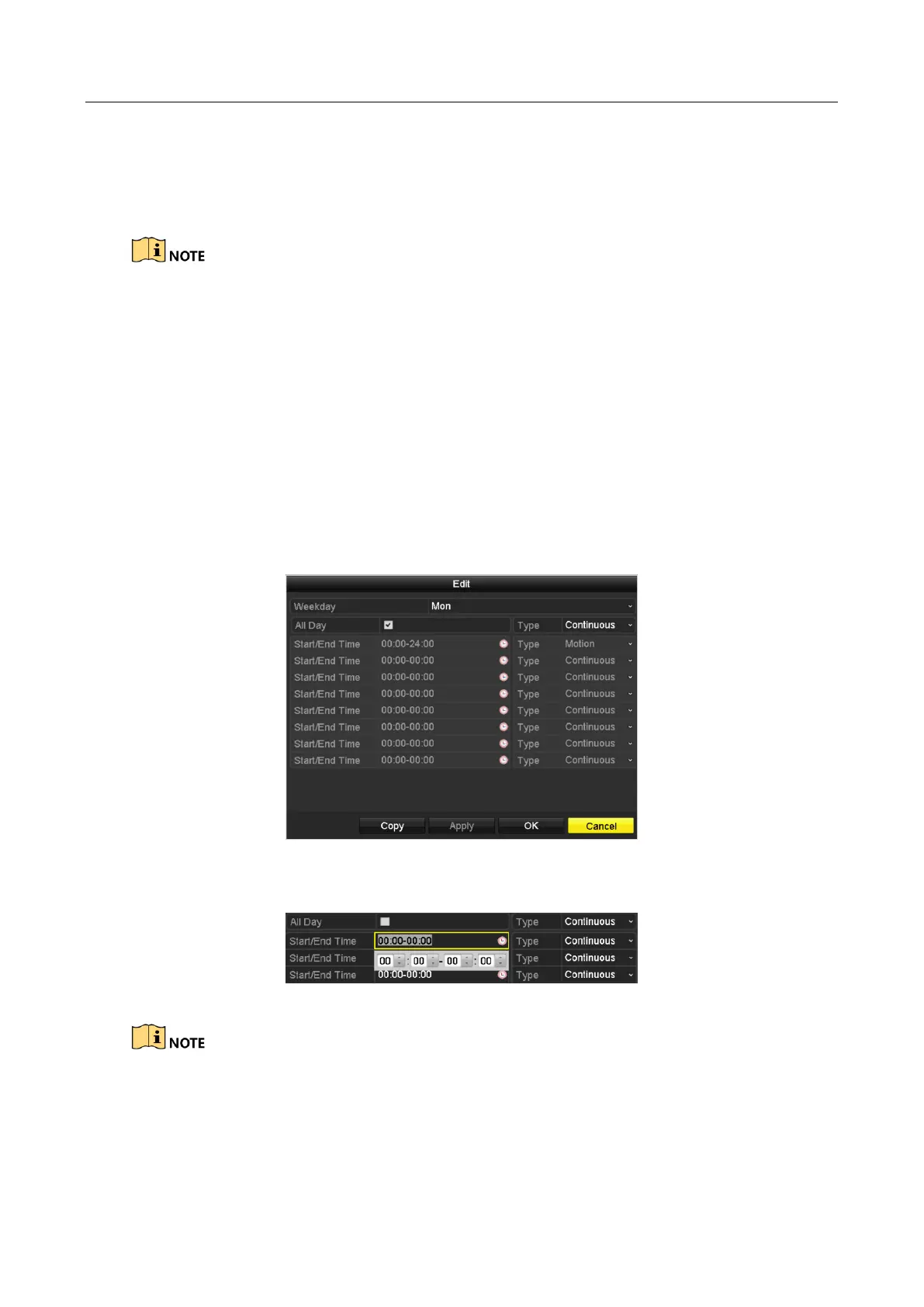

Figure 5-9 Edit Schedule- All Day
4) To arrange other schedule, leave the All Day checkbox blank and set the Start/End time.
Figure 5-10 Edit Schedule- Set Time Period
Up to 8 periods can be configured for each day. And the time periods cannot be overlapped
with each other.
To enable Event, Motion, Alarm, M | A (motion or alarm), M & A (motion and alarm) and
POS triggered recording, you must configure the motion detection settings, alarm input
