HIKVISION DS-7208HGHI-F1 User Manual

Digital Video Recorder User Manual
167

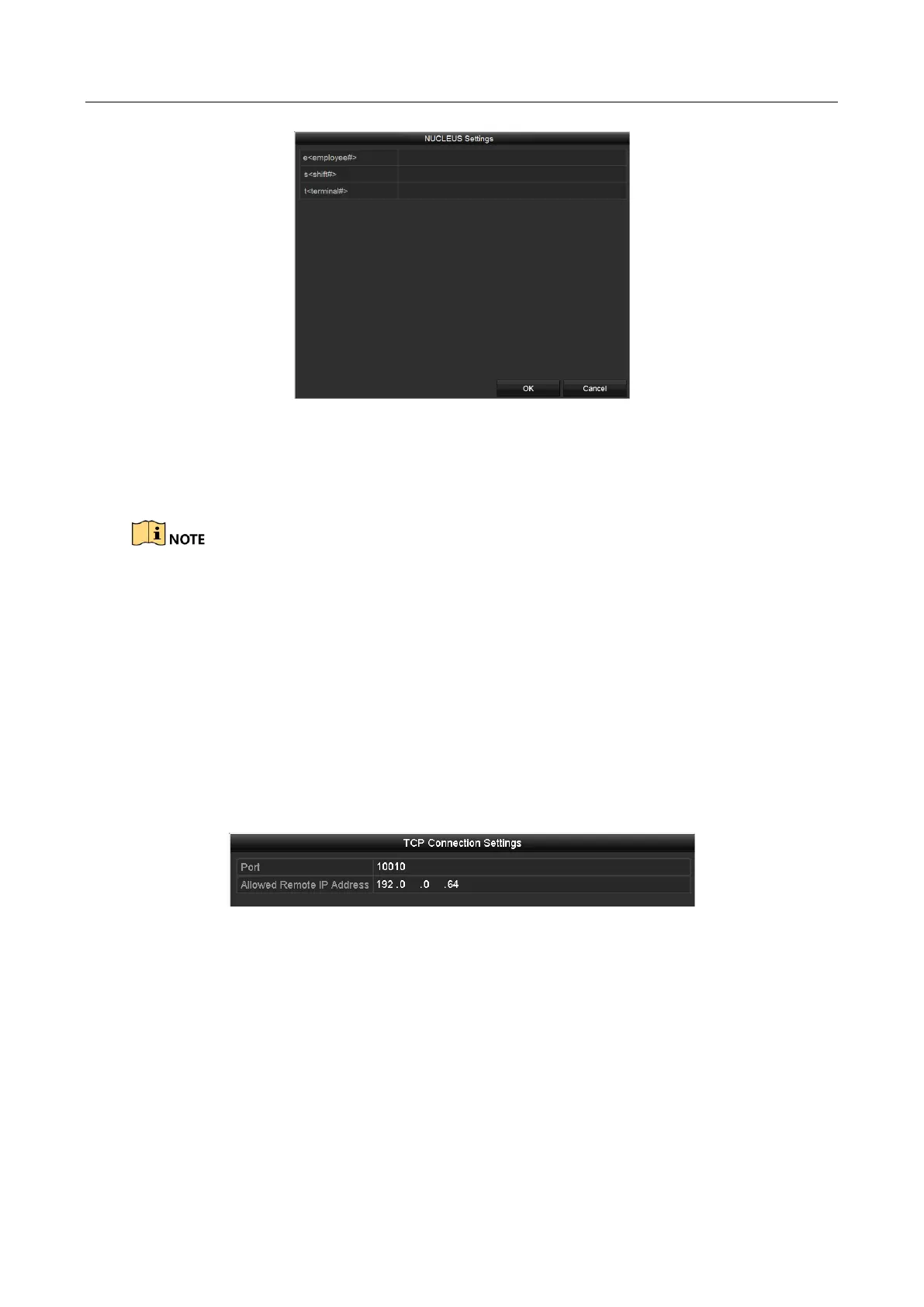

Figure 9-5 NUCLEUS Settings
2) Edit the Employee, Shift and Terminal information. No more than 32 characters can be
input.
3) Click OK to save the settings.

If you select NUCLEUS protocol, the connection type defaults to be RS-232, and all the other
POS protocol will change to be NUCLEUS.

You should set Usage to be Transparent Channel for RS-232 settings in Menu >
Configuration > RS-232 first.
Step 6 Select the Connection Type to TCP, UDP, Multicast, RS-232, USB->RS-232 or Sniff, and click
Set to configure the parameters for each connection type.
 TCP Connection
When using TCP connection, the port must be set from 0 to 65535, and the port for each
POS machine must be unique. Input the Allowed Remote IP Address for connecting the
DVR and the POS machine via TCP.
Figure 9-6 TCP Connection Settings
 UDP Connection
When using UDP connection, the port must be set from 0 to 65535, and the port for each
POS machine must be unique. Input the Allowed Remote IP Address for connecting the
DVR and the POS machine via UDP.

HIKVISION DS-7208HGHI-F1 Specifications

General

Product color	Black
Rack capacity	1U
Channels quantity	8 channels
Remote control type	128
Video capturing speed	30 fps
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1080p lite
BNC input ports	8
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	12 W
Storage temperature (T-T)	10 - 90 °C
Operating temperature (T-T)	-10 - 55 °C

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
