Digital Video Recorder User Manual
176
You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Step 3 Select the VCA detection type to Vehicle Detection.
Step 4 Check the Enable checkbox to enable this function.

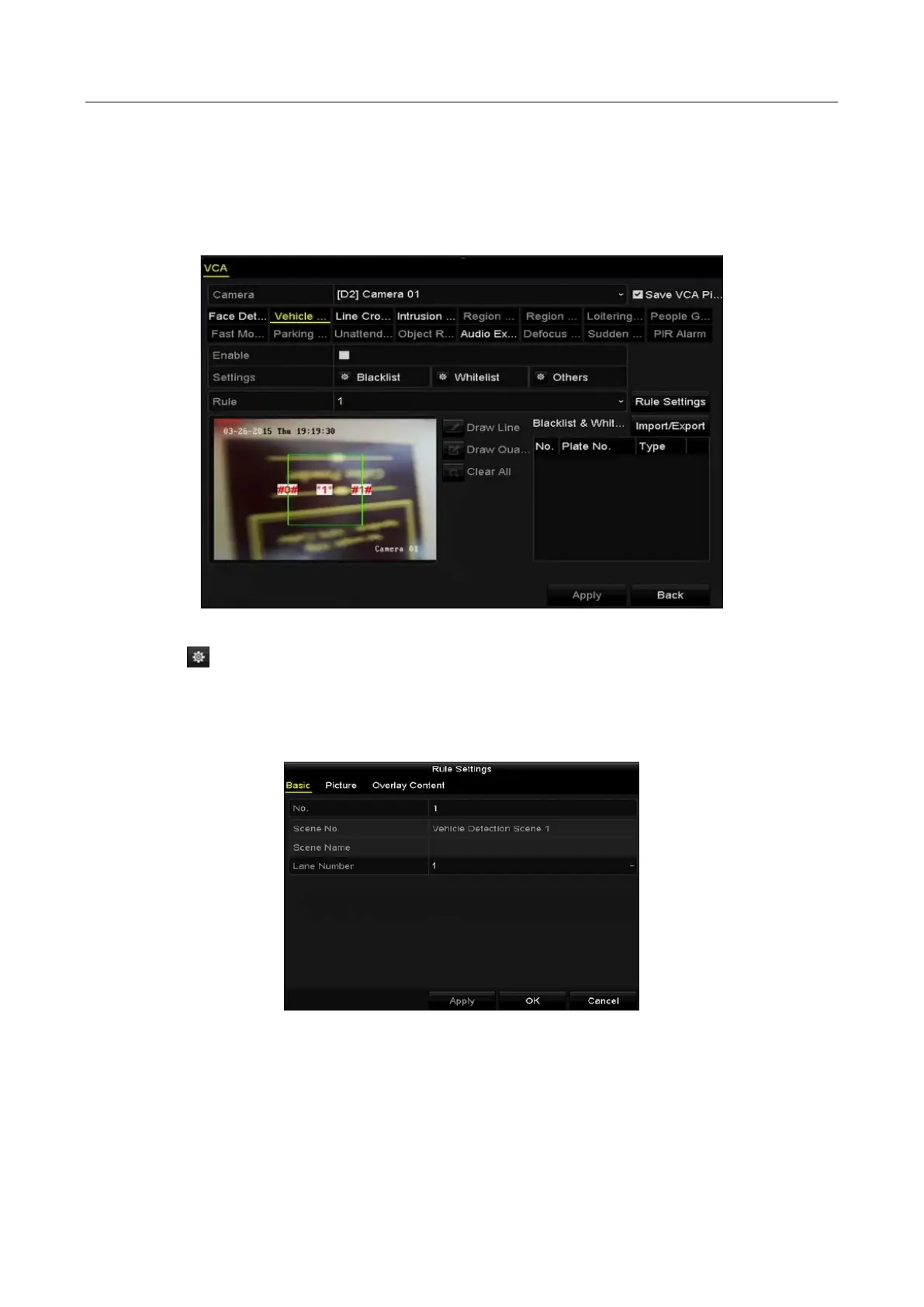

Figure 10-3 Set Vehicle Detection
Step 5 Click to configure the trigger channel, arming schedule and linkage actions for the
Blacklist, Whitelist and Others.
Step 6 Click the Rule Settings to enter the rule settings interface. Configure the lane, upload
picture and overlay content settings. Up to 4 lanes are selectable.
Figure 10-4 Rule Settings
Step 7 Click Save to save the settings.

HIKVISION DS-7208HGHI-F1 Specifications

General

Product color	Black
Rack capacity	1U
Channels quantity	8 channels
Remote control type	128
Video capturing speed	30 fps
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1080p lite
BNC input ports	8
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	12 W
Storage temperature (T-T)	10 - 90 °C
Operating temperature (T-T)	-10 - 55 °C

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
