3) Configure the parameters.
4) Click Apply to save the settings.
5) (Optional) If the parameters can also be used to other cameras, click Copy to copy the
settings to other channels.

For DS-7200/7300/7600/8100/9000HUHI series, when 3 MP signal input is connected, the
resolution of sub-stream does not support QVGA/QCIF. It will adjust to CIF automatically in
this condition.

For DS-7200/7300/7600/8100/9000HUHI series, when 3 MP signal input is connected, the
frame rate of sub-stream cannot exceed 15 fps.

For DS-7200HUHI-F/S series, when 5 MP/4 MP/3 MP signal input is connected, the frame
rate of the sub-stream cannot exceed the maximum frame rate of the main stream.

For HQHI-F/N series, when 3 MP signal input is connected, the frame rate of sub-stream
cannot exceed 12 fps.
Step 8 Set parameters for capture.
1) Select the Capture tab.

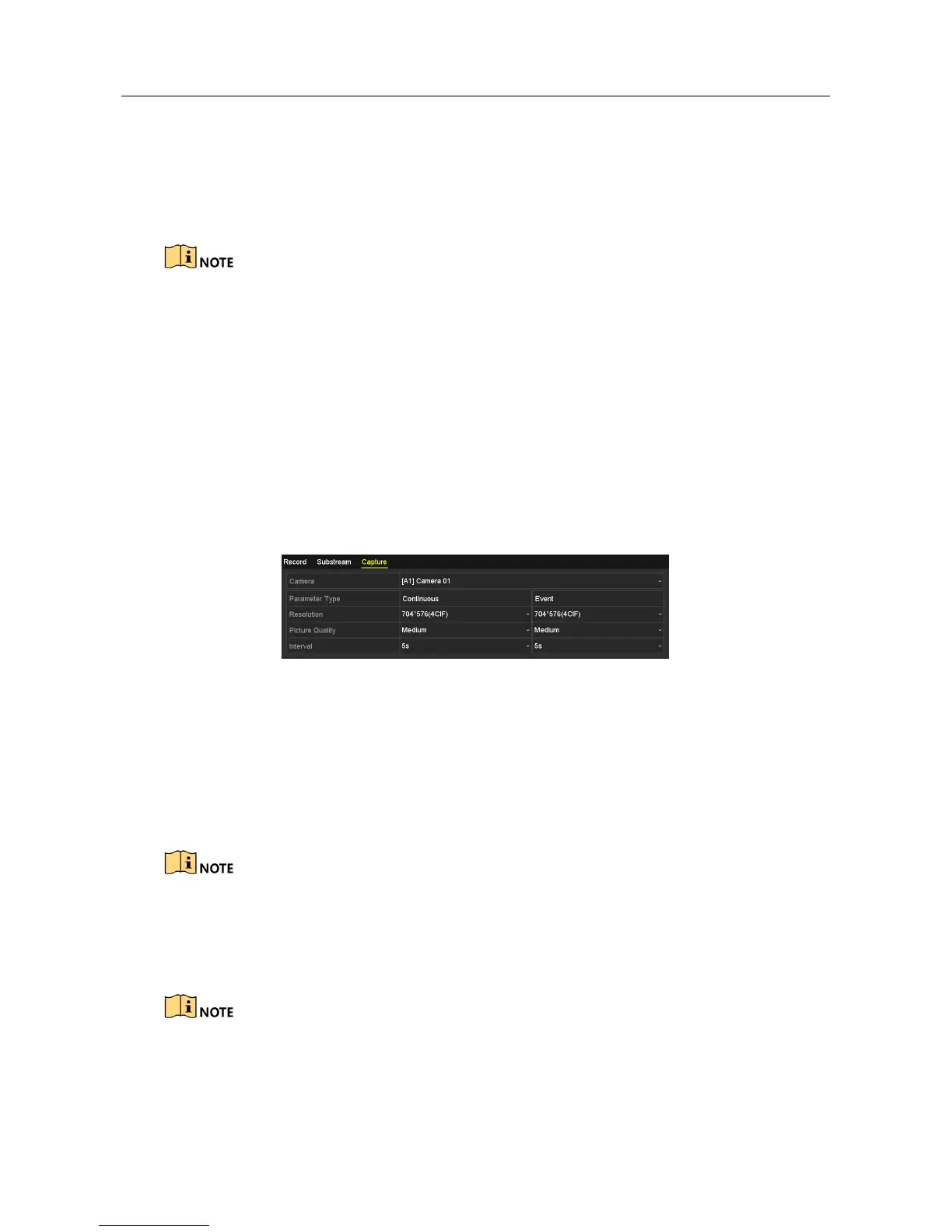

Figure 5-7 Capture Settings
2) Select a camera in the camera dropdown list.
3) Configure the parameters.
4) Click Apply to save the settings.
5) (Optional) If the parameters can also be used to other cameras, click Copy to copy the
settings to other channels.
The interval is the time period between two capturing actions. You can configure all the
parameters on this menu on your demand.
5.2 Configuring Recording and Capture Schedule

HIKVISION DS-7316HQHI-F4/N Specifications

General

Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264
BNC input ports	1
Video input channels	16 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
