Digital Video Recorder User Manual
228

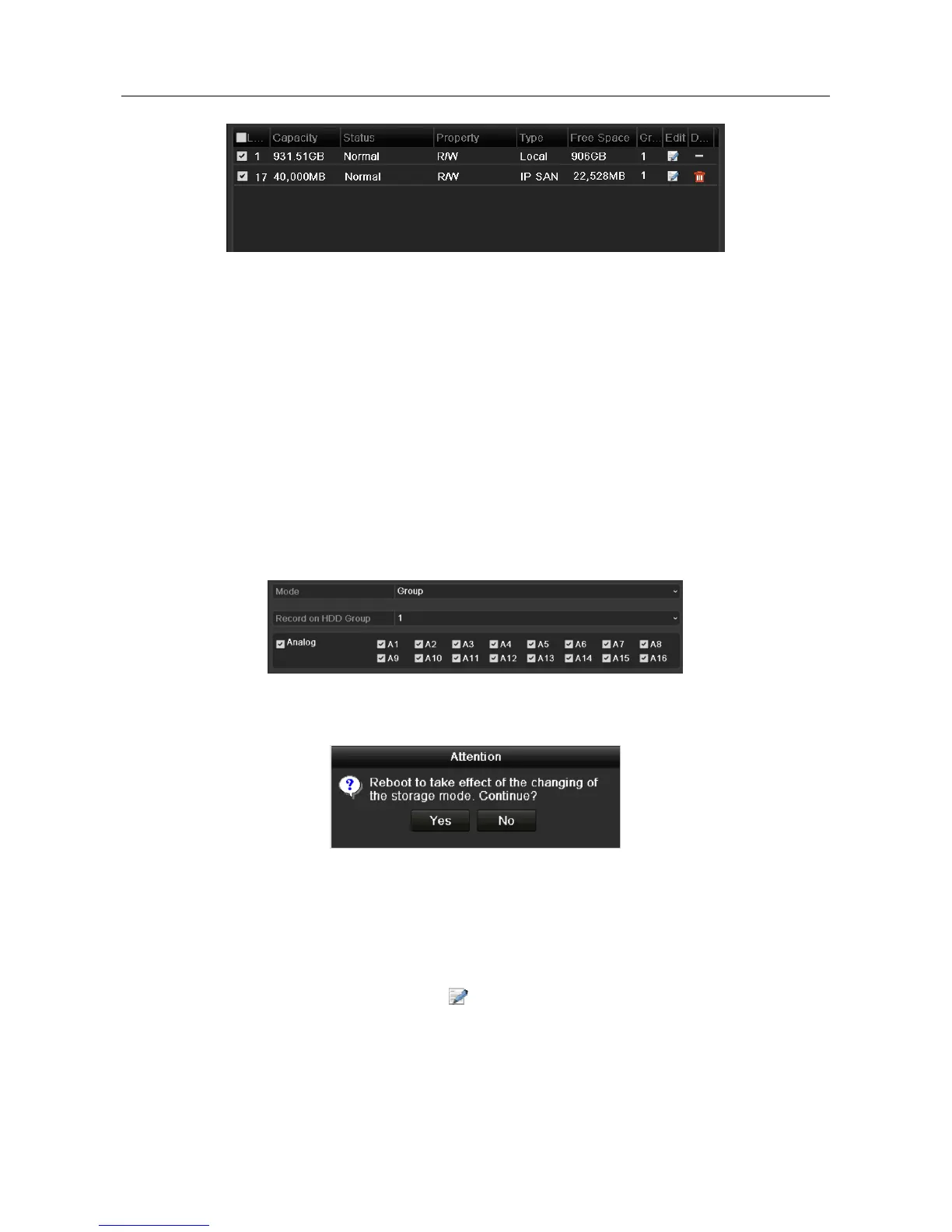

Figure 14-10 Initialize Added NetHDD
14.3 Managing HDD Group
14.3.1 Setting HDD Groups
Purpose
Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a
particular HDD group through HDD settings.
Step 1 Enter the Storage Mode interface.
Menu > HDD > Advanced
Step 2 Set the Mode to Group, as shown in Figure 14-11.
Figure 14-11 Storage Mode Interface
Step 3 Click the Apply button and the following Attention box will pop up.
Figure 14-12 Attention for Reboot
Step 4 Click the Yes button to reboot the device to activate the changes.
Step 5 After reboot of device, enter the HDD Information interface.
Menu > HDD > General
Step 6 Select HDD from the list and click the icon to enter the Local HDD Settings interface,
as shown in Figure 14-13.

HIKVISION DS-7316HQHI-F4/N Specifications

General

Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264
BNC input ports	1
Video input channels	16 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
