Digital Video Recorder User Manual
212

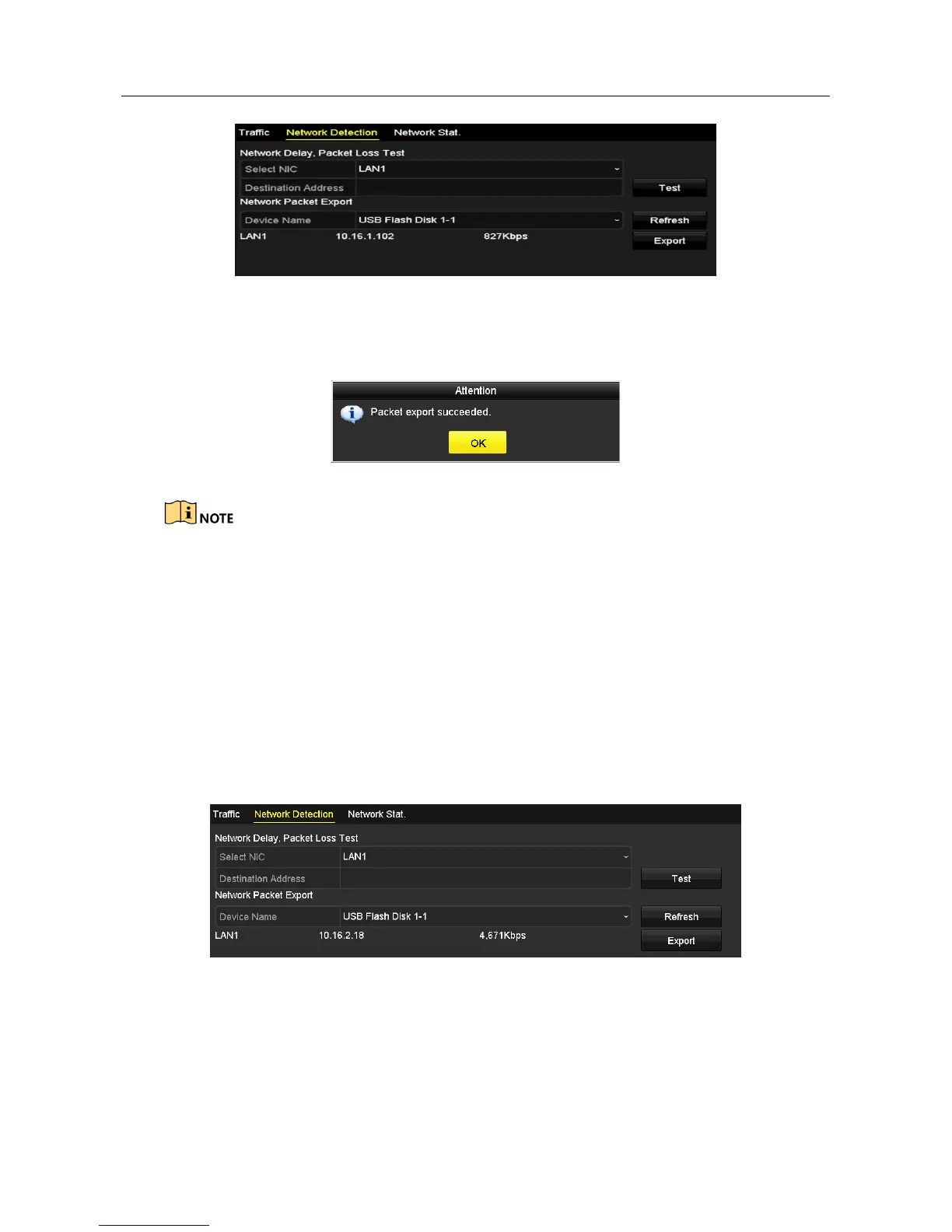

Figure 12-20 Export Network Packet
Step 4 Click the Export button to start exporting.
Step 5 After the exporting is complete, click OK to finish the packet export.
Figure 12-21 Packet Export Attention
Up to 1M data can be exported each time.
12.3.3 Checking Network Status
Purpose
You can also check the network status and quick set the network parameters in this interface.
Step 1 Enter the Network Traffic interface.
Menu > Maintenance > Net Detect
Step 2 Click the Network Detection tab to enter the Network Detection interface.
Step 3 Click Status on the right bottom of the interface.
Figure 12-22 Checking Network Status
If the network is normal the following message box pops out.
