8.2 Setting Sensor Alarms
Purpose
Set up handling method of an external sensor alarm.
Step 1 Enter Alarm Input Settings interface.
Menu > Configuration > Alarm > Alarm Input

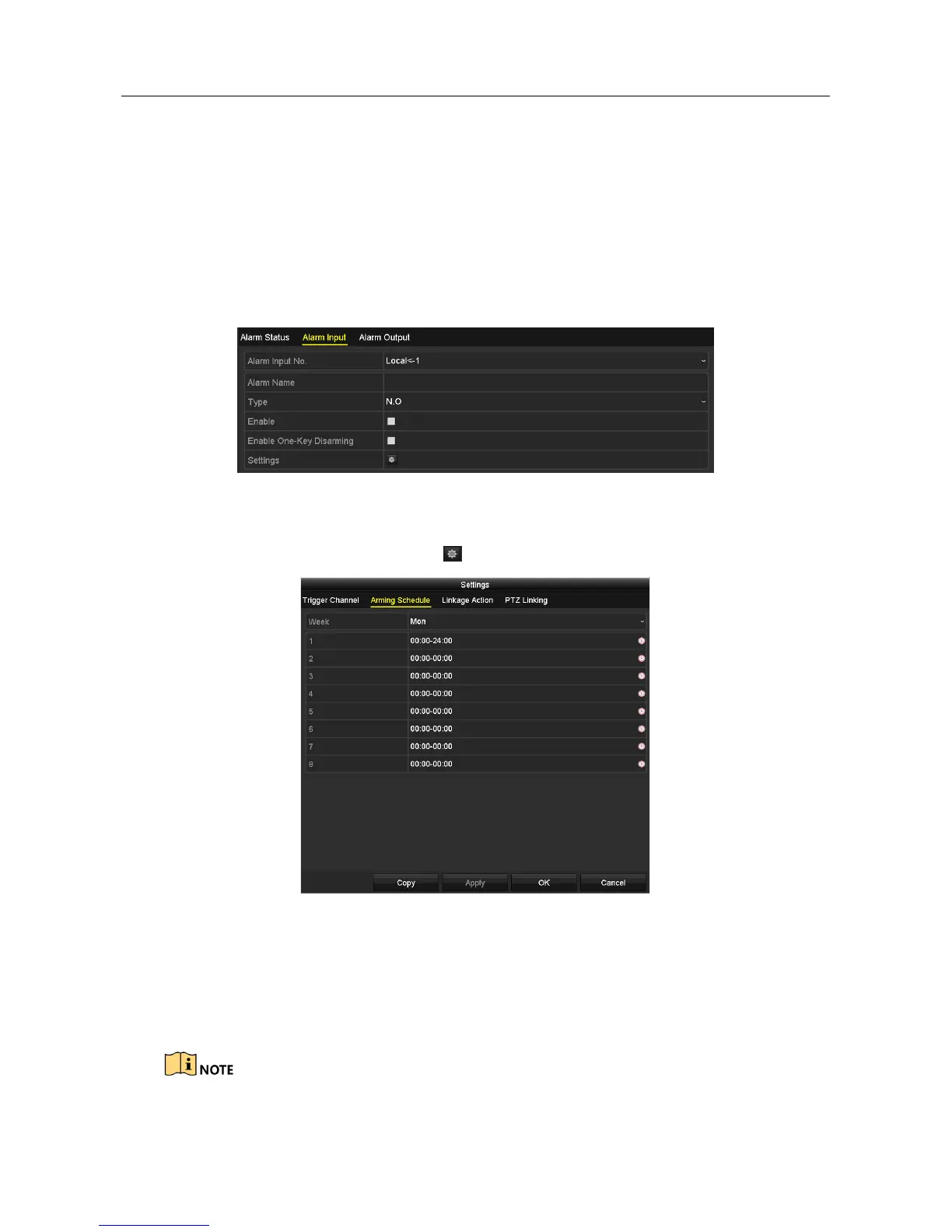

Figure 8-5 Alarm Input Settings Interface
Step 2 Set the handling method of the selected alarm input.
Check the Enable checkbox and click button to set its alarm response actions.
Figure 8-6 Set Arming Schedule of Alarm Input
Step 3 Select Trigger Channel tab and select one or more channels which will start to record or
become full-screen monitoring when an external alarm input is triggered.
Step 4 Select Arming Schedule tab to set the channel’s arming schedule.
Select one day of a week and maximum eight time periods can be set within each day.

HIKVISION DS-7316HQHI-F4/N Specifications

General

Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264
BNC input ports	1
Video input channels	16 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
