Step 3 Configure the schedule.
Please refer to the step 4 of Chapter 5.2 Configuring Recording and Capture Schedule , while
you may choose Motion as the record type.
5.4 Configuring Alarm Triggered Recording and Capture
Purpose
Follow the procedure to configure alarm triggered recording or capture.
Step 1 Enter the Alarm Setting interface.
Menu > Configuration > Alarm

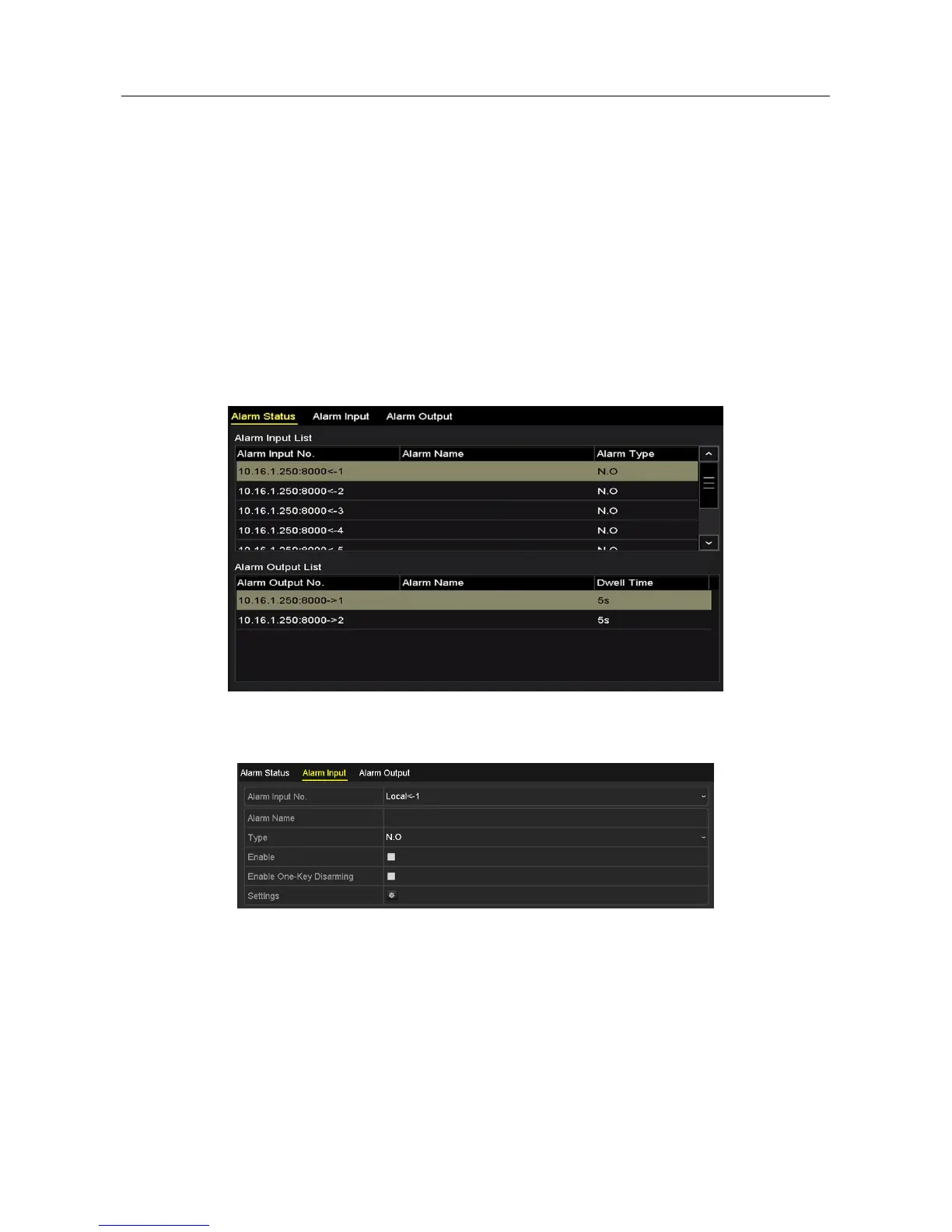

Figure 5-17 Alarm Settings
Step 2 Click Alarm Input tab.
Figure 5-18 Alarm Settings- Alarm Input
Step 3 Select Alarm Input No.
Step 4 Input Alarm Name.
Step 5 Select N.O (normally open) or N.C (normally closed) for alarm type.
Step 6 Check the checkbox of Enable to enable alarm.
