HIKVISION DS-7316HQHI-F4/N User Manual

Digital Video Recorder User Manual
230

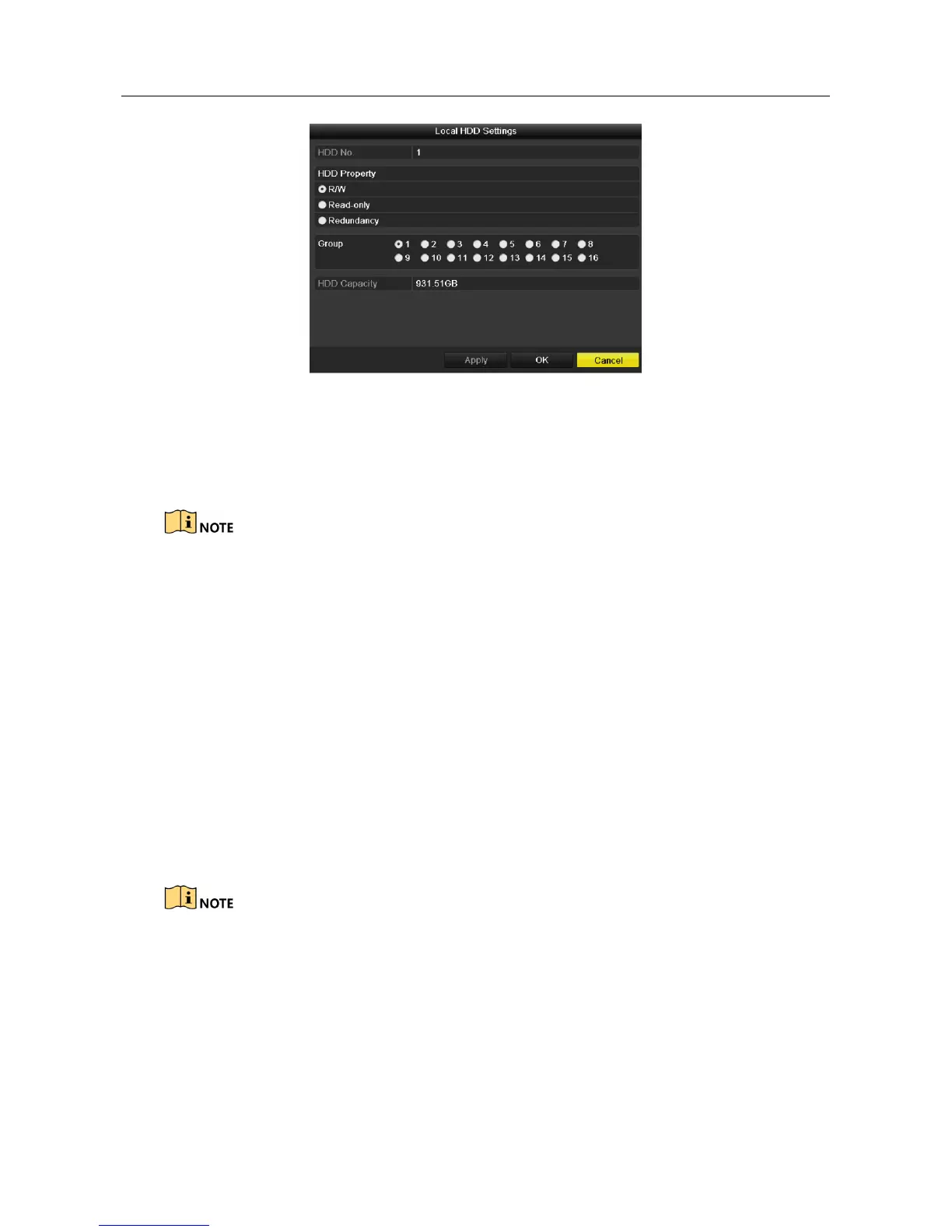

Figure 14-15 Set HDD Property
Step 3 Set the HDD property to R/W, Read-only or Redundancy.
Step 4 Click the OK button to save the settings and exit the interface.
Step 5 In the HDD Information menu, the HDD property will be displayed in the list.
At least 2 hard disks must be added on your DVR when you want to set a HDD to Redundancy, and
there is one HDD with R/W property.
14.4 Configuring Quota Mode
Purpose
Each camera can be configured with allocated quota for the storage of recorded files.
Steps
Step 1 Enter the Storage Mode interface.
Menu > HDD > Advanced
Step 2 Click the Storage Mode tab.
Step 3 Set the Mode to Quota, as shown in Figure 14-16.
The DVR must be rebooted to enable the changes to take effect.

HIKVISION DS-7316HQHI-F4/N Specifications

General

Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264
BNC input ports	1
Video input channels	16 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
