HIKVISION DS-7316HQHI-F4/N User Manual

Digital Video Recorder User Manual
163

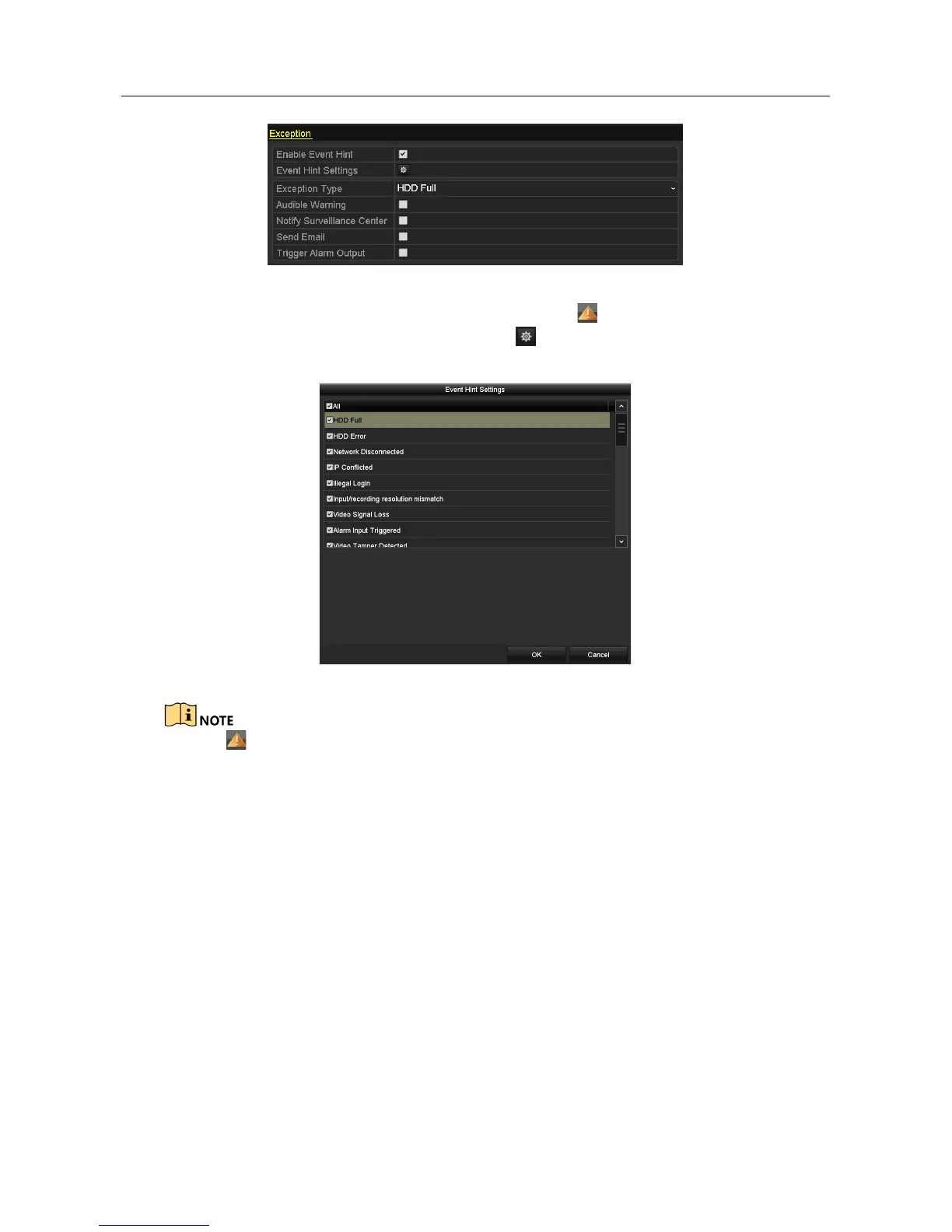

Figure 8-16 Exception Settings Interface
Step 2 Check the checkbox of Enable Event Hint to display the (Event/Exception icon) when
an exceptional event occurs. And click the icon to select the detailed event hint for
display.
Figure 8-17 Event Hint Settings
Click the icon appears in the live view interface, and you can view the detailed information of
the exceptional event. Click the button Set, and then you can select the detailed event hint for
display.

HIKVISION DS-7316HQHI-F4/N Specifications

General

Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264
BNC input ports	1
Video input channels	16 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
