Digital Video Recorder User Manual
177

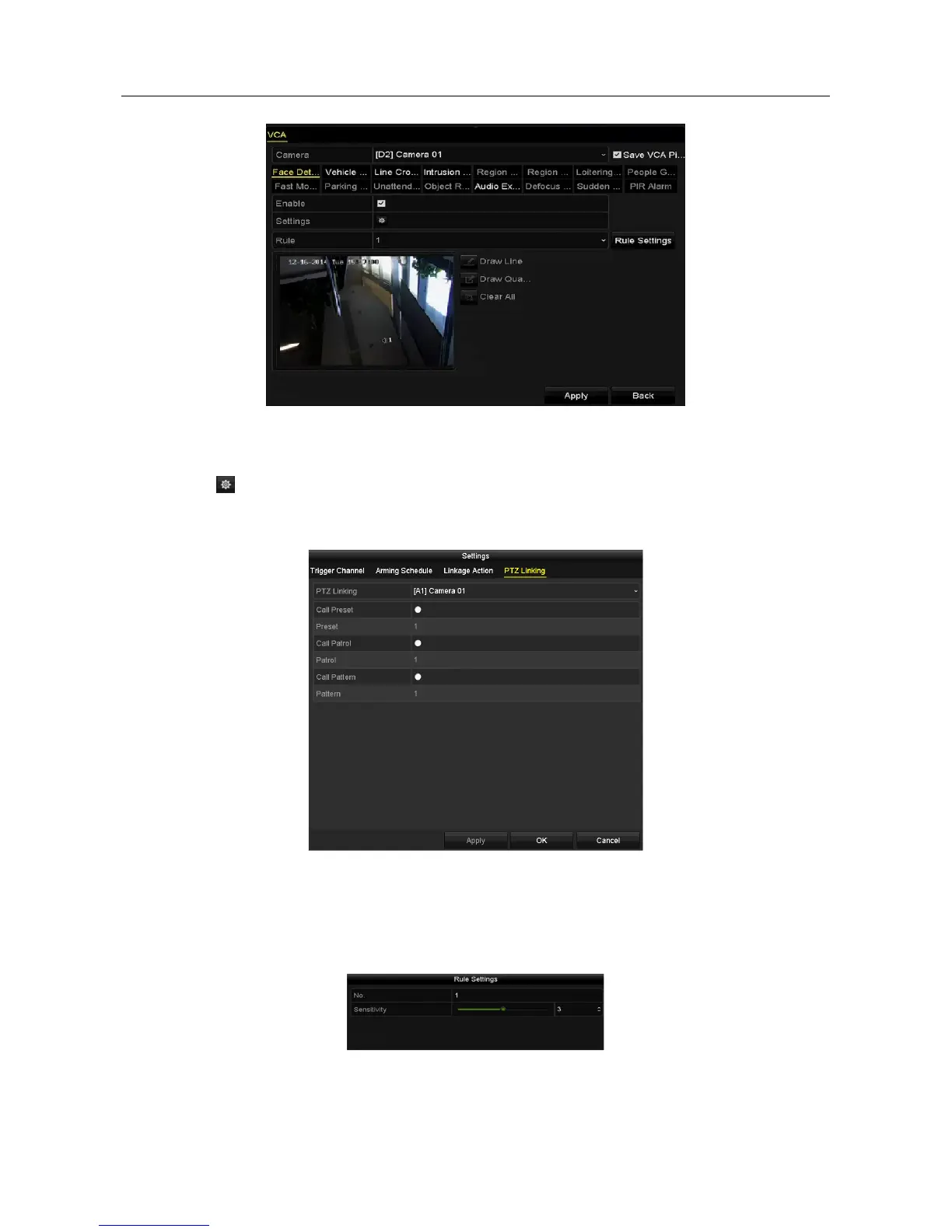

Figure 10-1 Face Detection
Step 3 Select the VCA detection type to Face Detection.
Step 4 Click to enter the face detection settings interface. Configure the trigger channel,
arming schedule, linkage action and PTZ linking for the face detection alarm. Please refer to
step 3 to step 5 of Chapter 8.2 Setting Sensor Alarms for detailed instructions.
Figure 10-2 PTZ Linking
Step 5 Click the Rule Settings button to set the face detection rules. You can drag the slider to set
the detection sensitivity.
Sensitivity: Range [1-5]. The higher the value is, the more easily the face can be detected.
Figure 10-3 Set Face Detection Sensitivity

HIKVISION DS-7316HQHI-F4/N Specifications

General

Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264
BNC input ports	1
Video input channels	16 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
