HIKVISION DS-7316HQHI-F4/N User Manual

Digital Video Recorder User Manual
239

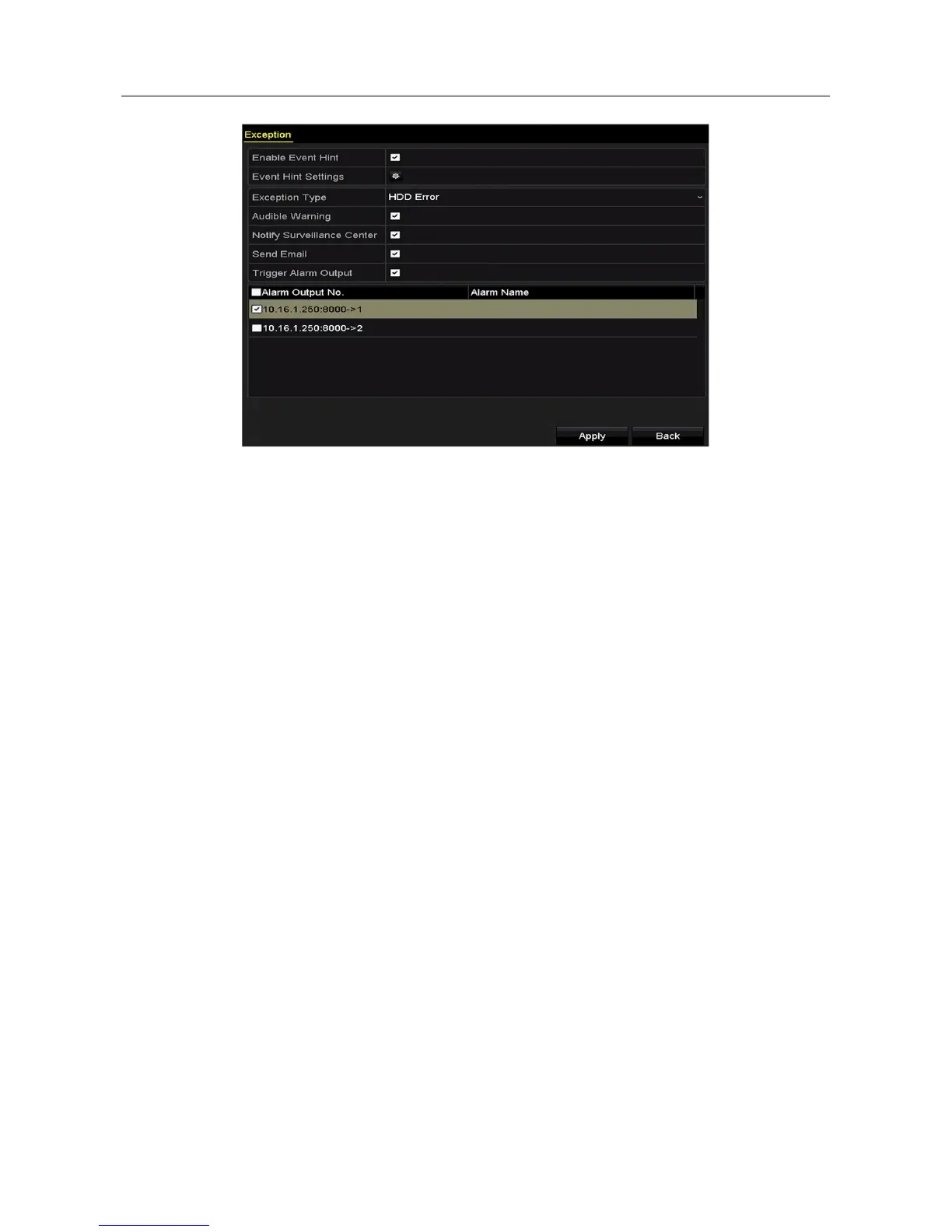

Figure 14-30 Configure HDD Error Alarm
Step 4 When the Trigger Alarm Output is selected, you can also select the alarm output to be
triggered from the list below.
Step 5 Click the Apply button to save the settings.

HIKVISION DS-7316HQHI-F4/N Specifications

General

Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264
BNC input ports	1
Video input channels	16 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
