Digital Video Recorder User Manual
257

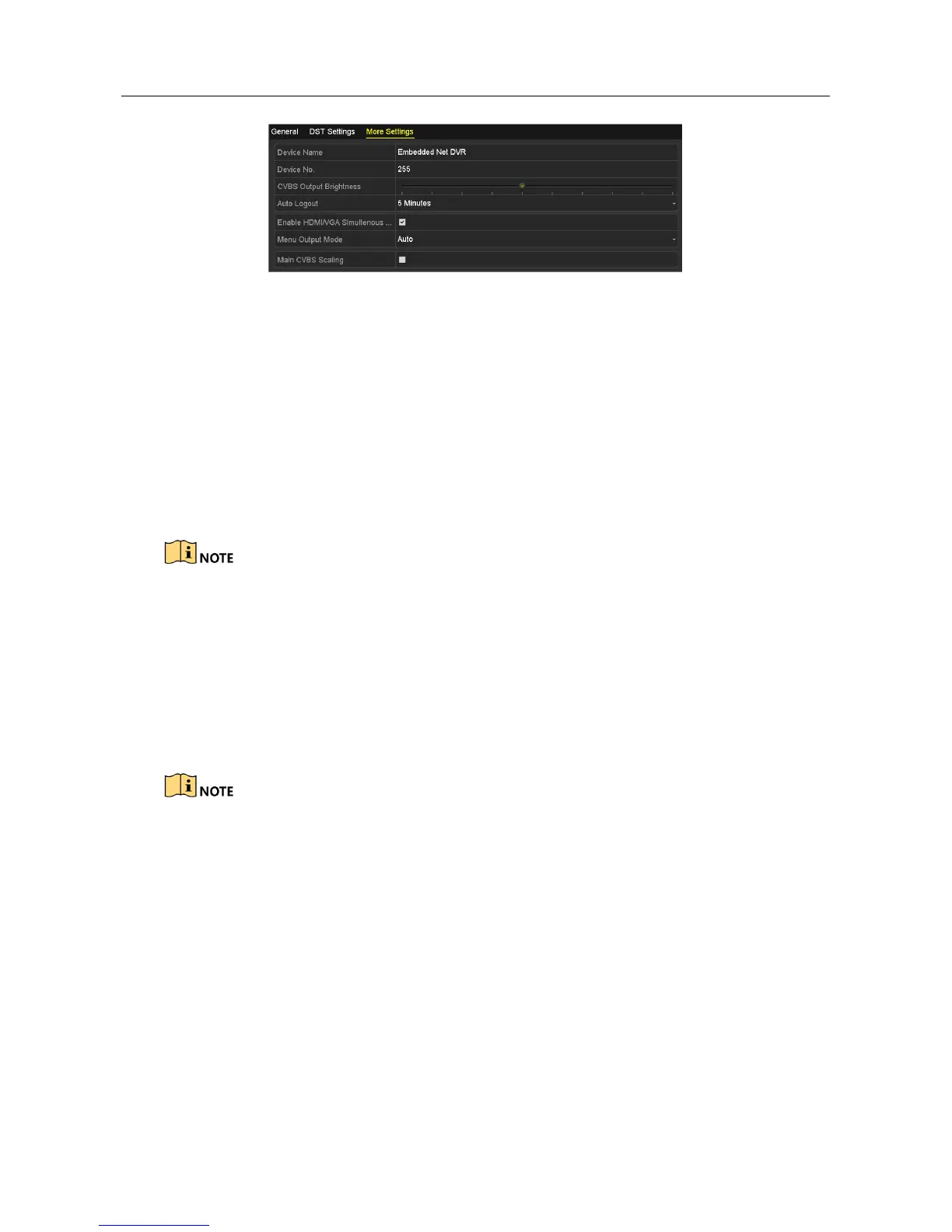

Figure 17-9 More Settings Interface (4)
Step 3 Configure the following settings:
Device Name: Edit the name of DVR.
Device No.: Edit the serial number of DVR. The Device No. can be set in the range of 1 to
255, and the default No. is 255.
Auto Logout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5
Minutes, then the system will exit from the current operation menu to live view screen
after 5 minutes of menu inactivity.
CVBS Output Brightness: Adjust the video output brightness via the CVBS interface.
The CVBS Output is provided for the DS-7200/7300/8100HQHI-F/N and
DS-7200/7600/7300/8100/9000HUHI series DVR only.
Enable HDMI/VGA Simultaneous Output: For DS-7608/7616HUHI-F/N and
DS-7300/8100HQHI-F/N series DVR, the HDMI and VGA interfaces can be configured to be
simultaneous or independent. You can check the checkbox to enable HDMI/VGA
simultaneous output or uncheck it to remain independent output of HDMI and VGA
interfaces.
Menu Output Mode: You can choose the menu display on different video output.
For DS-7608/7616HUHI-F/N and DS-7300/8100HQHI-F/N series DVR, if you have configured
HDMI/VGA simultaneous output, you can select Auto and HDMI/VGA for the menu output
mode. If you have configured independent HDMI and VGA output, you can select Auto,
HDMI and VGA for the menu output mode.
For DS-7300/8100/9000HUHI-F/N series, Auto, HDMI1/VGA, and HDMI2 are selectable.
For HGHI-F/N, HGHI-F, DS-7104/7108/7204/7208HQHI-F/N and DS-7200/7604HUHI series
DVR, Auto and HDMI/VGA are selectable.
Encoding Mode: For DS-7100/7200HGHI-E series DVR, you can select the encoding mode.
When the non-real-time mode is selected, the max. frame rate (Menu>Record>Parameters)
can be set to 15 fps only.
Main CVBS Scaling: You can check the checkbox to enable main CVBS scaling.
