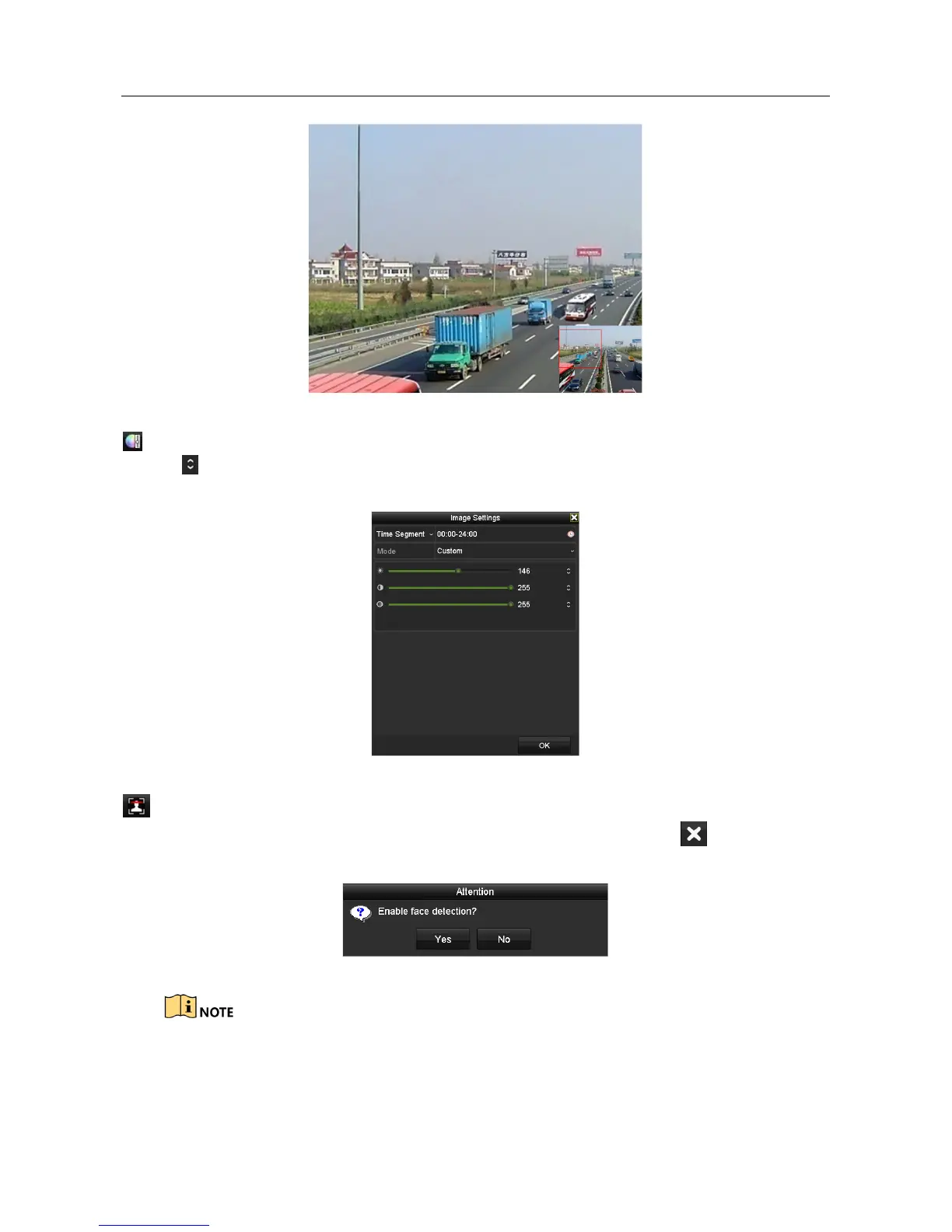

Digital Video Recorder User Manual
83
Figure 3-4 Digital Zoom
Image Settings icon can be selected to enter the Image Settings menu. You can drag the mouse
or click to adjust the image parameters, including brightness, contrast, and saturation. Refer
to the Chapter 15.3 Configuring Video Parameters for details.
Figure 3-5 Image Settings
Face Detection can be enabled if you click the icon. The dialog pops up as shown in Figure 3-6.
Click Yes and the full-screen live view of the channel is enabled. You can click to exit from the
full-screen mode.
Figure 3-6 Enable Face Detection
You can configure face detection only when it is supported by the connected camera.

Table of Contents

Other manuals for HIKVISION DS-7316HQHI-F4/N

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7316HQHI-F4/N and is the answer not in the manual?

HIKVISION DS-7316HQHI-F4/N Specifications

General IconGeneral
Product colorBlack
Audio output channels1.0 channels
Video compression formatsH.264
BNC input ports1
Video input channels16 channels
USB 2.0 ports quantity2
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Supported network protocolsTCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
Power consumption (typical)45 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Dimensions (WxDxH)445 x 390 x 70 mm
