HIKVISION DS-7604NI-E1/4P User Manual

Network Video Recorder User Manual
198

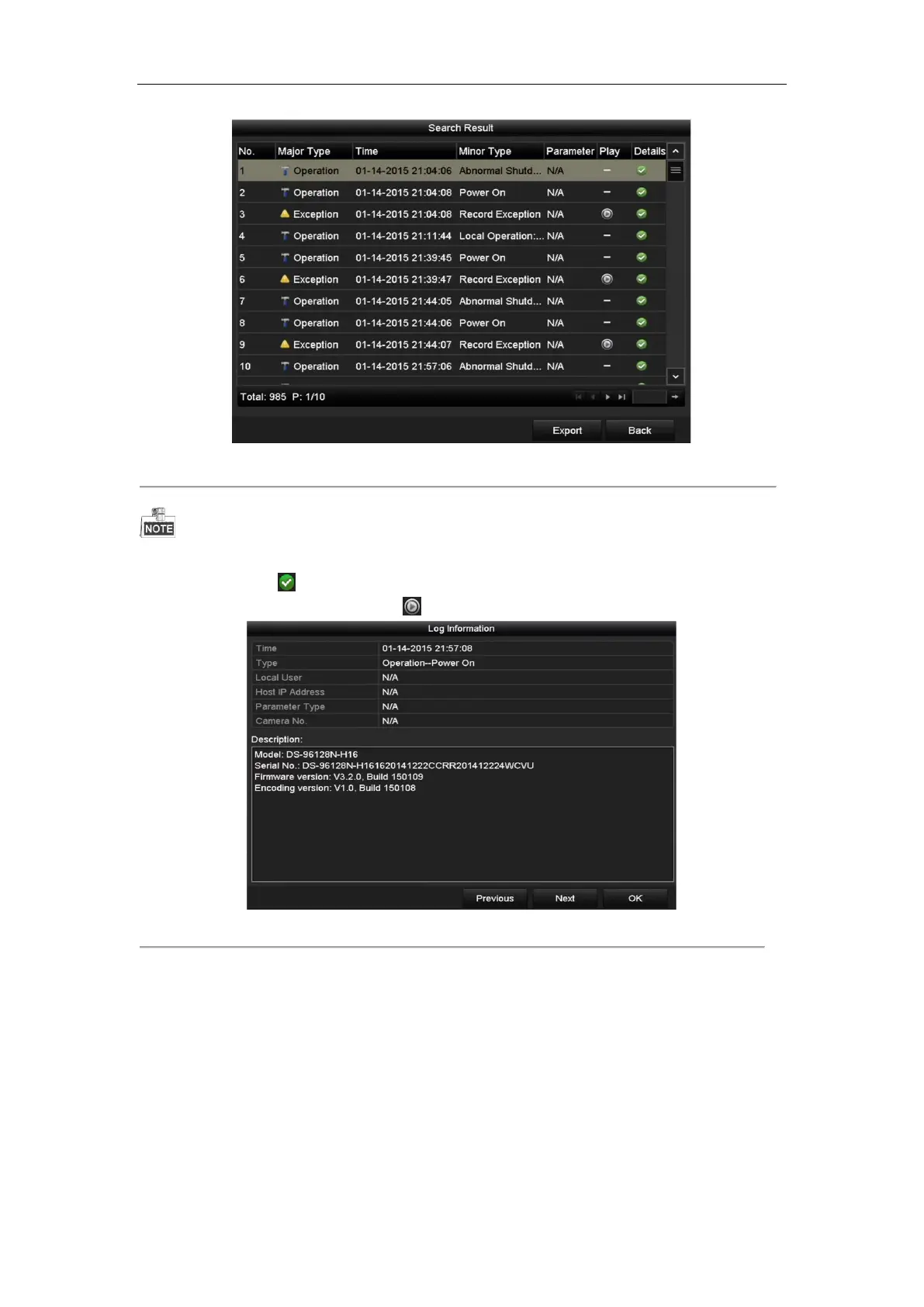

Figure 14. 3 Log Search Results
Up to 2000 log files can be displayed each time.
5. You can click the button of each log or double click it to view its detailed information, as shown in
Figure 14. 4. And you can also click the button to view the related video files if available.
Figure 14. 4 Log Details
6. If you want to export the log files, click the Export button on the Search Result interface to enter the Export
menu, as shown in Figure 14. 5.

HIKVISION DS-7604NI-E1/4P Specifications

General

Display modes	Live view
Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	4 channels
Alarm output channels	1
Resolution at capture speed	1920x1080@60fps
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	10 W
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	5
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Total installed storage capacity	0 GB

Weight and Dimensions

Depth	230 mm
Width	315 mm
Height	45 mm
Weight	1000 g
