HIKVISION DS-7604NI-SE/P Quick Operation Guide

Quick Operation Guide of Network Video Recorder
9

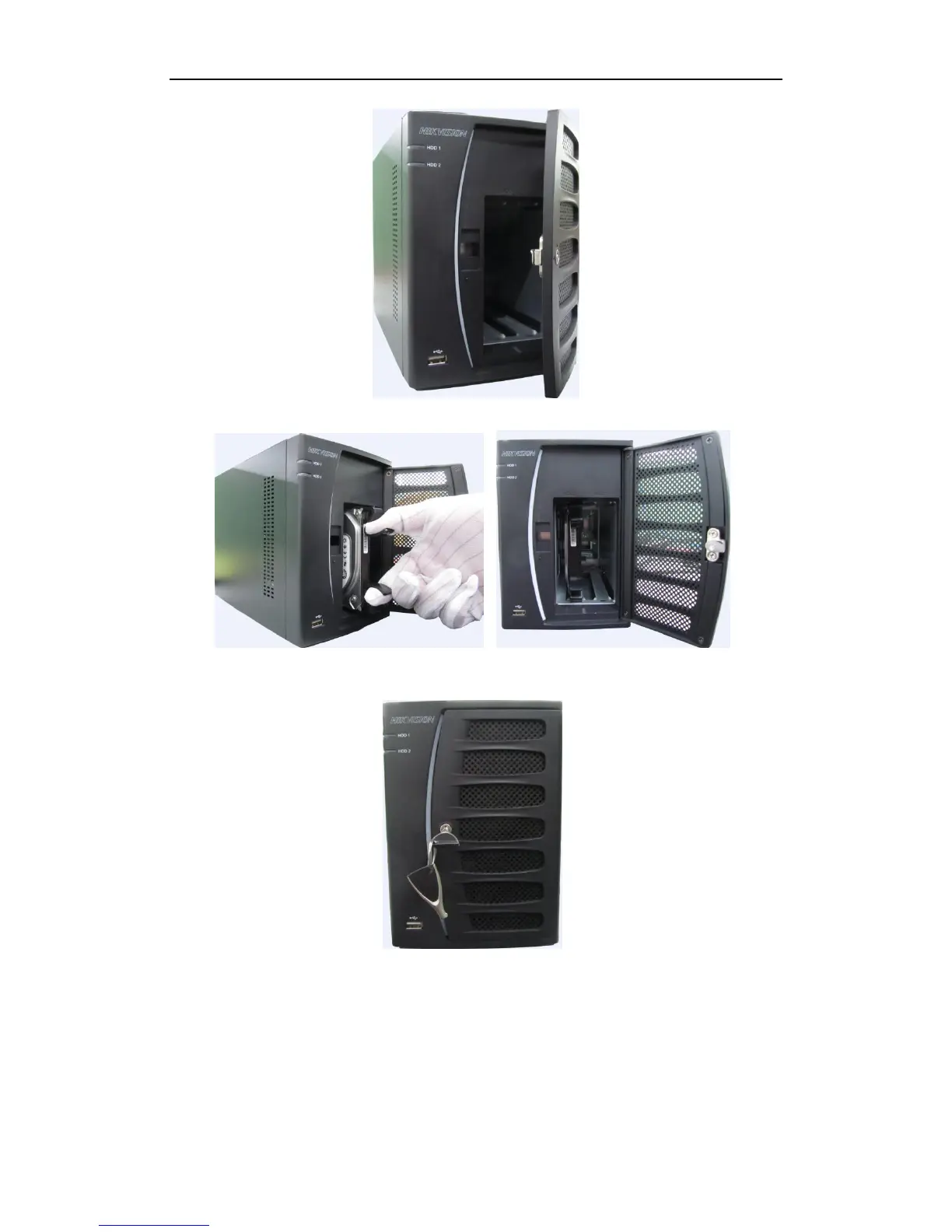

4. Insert the hard disk along the slot until it is placed into position.
5. Repeat the above steps to install other hard disks onto the NVR. After having finished the installation of all
hard disks, close the front panel and lock it with the key again.

HIKVISION DS-7604NI-SE/P Specifications

General

Product color	Black
Channels quantity	4 channels
Playback resolutions supported	5MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio input	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	5
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
HDD capacity	1000 GB
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	445 x 290 x 45 mm
