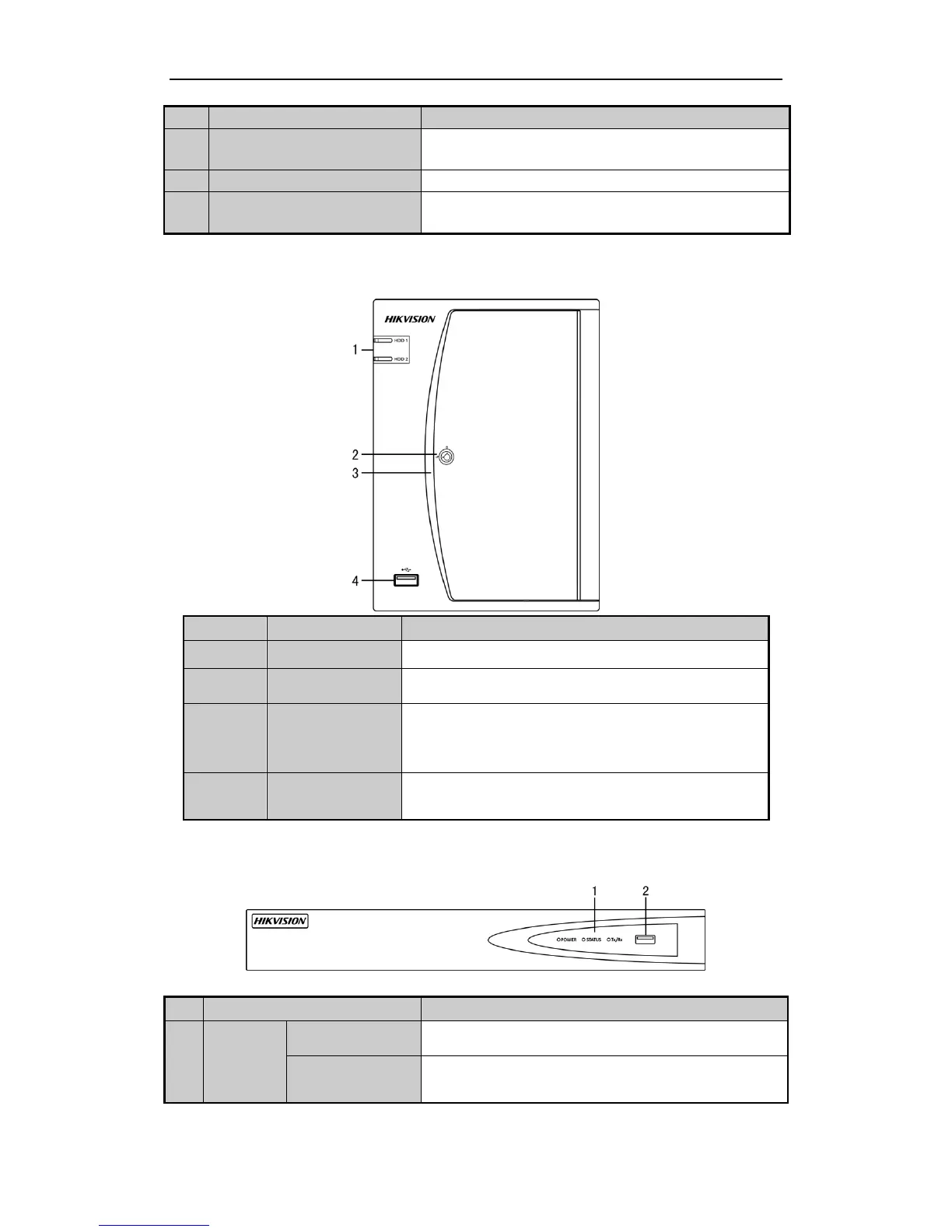

Quick Operation Guide of Network Video Recorder
14
No.
Name
Function Description
In PTZ control mode, it can control the movement of the PTZ
camera.
6
POWER ON/OFF
Power on/off switch.
7
USB Interfaces
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
DS-7600NI-V and DS-7600NI-VP
Name
Description
HDD1/HDD2
Blinks red when data is being read from or written to HDD.
Panel Lock
Lock/unlock the front panel.
Running Status
Indicator
Indicator turns yellow when system is running.
USB Interface
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
Other DS-7600NI Series
No.
Name
Description
1
Status
Indicator
Power
Power indicator turns yellow when system is running.
Status
Status indicator blinks red when data is being read from or written
to HDD.
