HIKVISION DS-7604NI-SE/P Quick Operation Guide

Quick Operation Guide of Network Video Recorder
20

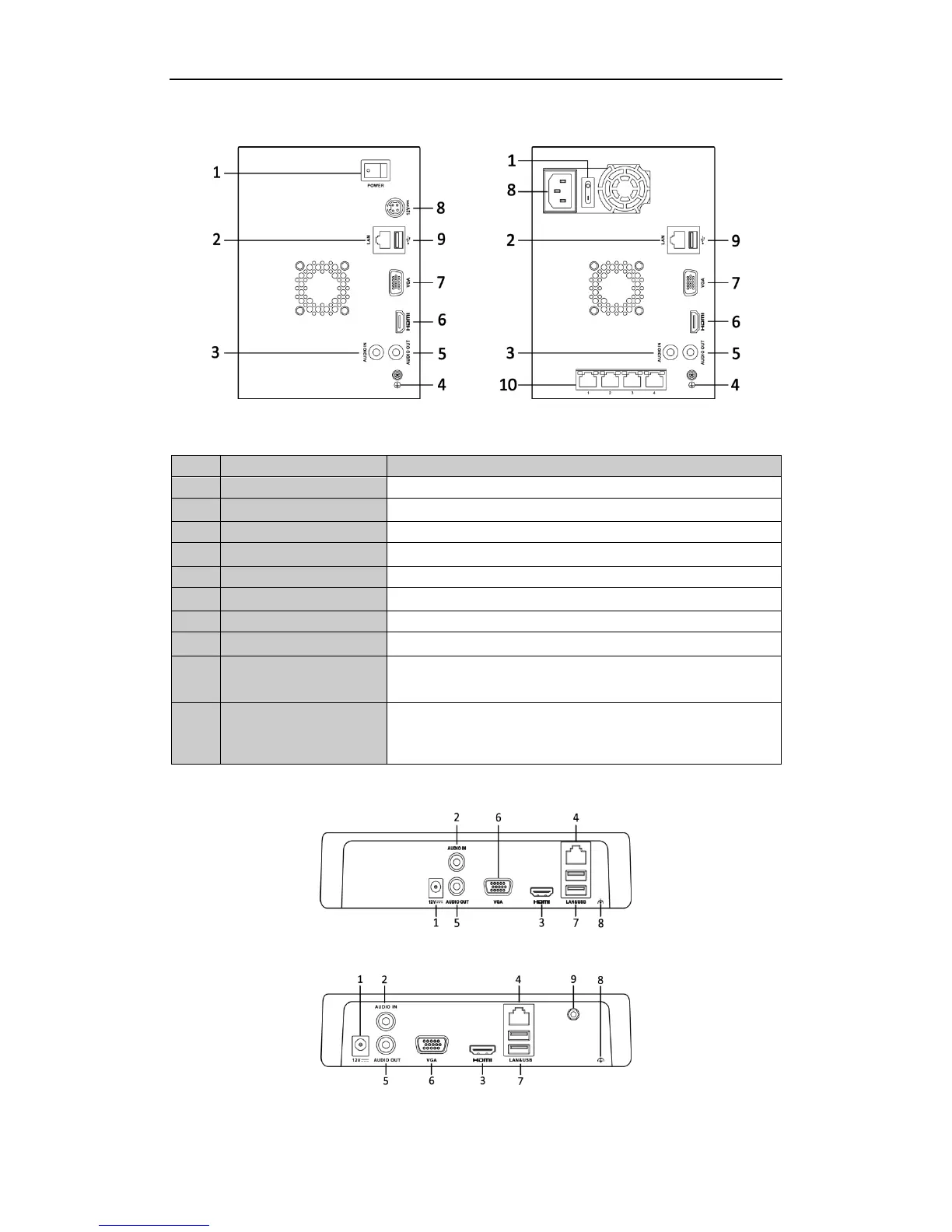

DS-7600NI-V and DS-7600NI-VP
DS-7600NI-V DS-7600NI-VP
No.
Item
Description
1
Power Switch
Switch for turning on/off the device.
2
LAN Network Interface
Connector for LAN (Local Area Network).
3
Audio In
RCA connector for voice talk input
4
GND
Ground (needs to be connected when NVR starts up).
5
Audio Out
RCA connector for audio output
6
HDMI Interface
HDMI video output connector.
7
VGA Output
DB9 connector for VGA output. Display local video output and menu.
8
Power Supply
100~240VAC power supply
9
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
10
Network Interfaces with
PoE function
(for DS-7600NI-VP)
Network interface for the cameras and to provide power over Ethernet.
DS-7100NI-SL, DS-7100NI-SN and DS-7100NI-SL/W
DS-7100NI-SL and DS-7100NI-SN
DS-7100NI-SL/W

HIKVISION DS-7604NI-SE/P Specifications

General

Product color	Black
Channels quantity	4 channels
Playback resolutions supported	5MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio input	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	5
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
HDD capacity	1000 GB
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	445 x 290 x 45 mm
