Chapter 2 Installation and Connections
2.1 Device Installation
During the device installation:
● Use brackets for rack mounting.
● Ensure ample room for audio and video cables.
● When routing cables, ensure the bend radius of the cables are no less than five times of its
diameter.
● Allow at least 2 cm (≈0.75 inch) of space among racks mounted devices.
● Ensure the device is grounded.
● Environmental temperature should be within the range of -10 °C to 55 °C (14 °F to 131 °F).
● Environmental humidity should be within the range of 10% to 90%.
2.2 HDD Installation
Disconnect the power from the device before installing a hard disk drive (HDD). A factory
recommended HDD should be used for this installation.
Tools Required: Screwdriver.
2.2.1 Fix-on-Bottom Installation
Fix-on-bottom installation is applicable when you need to install and fix the HDD on the device
bottom.
Steps
1. Remove the cover from device by unfastening the screws on panels.

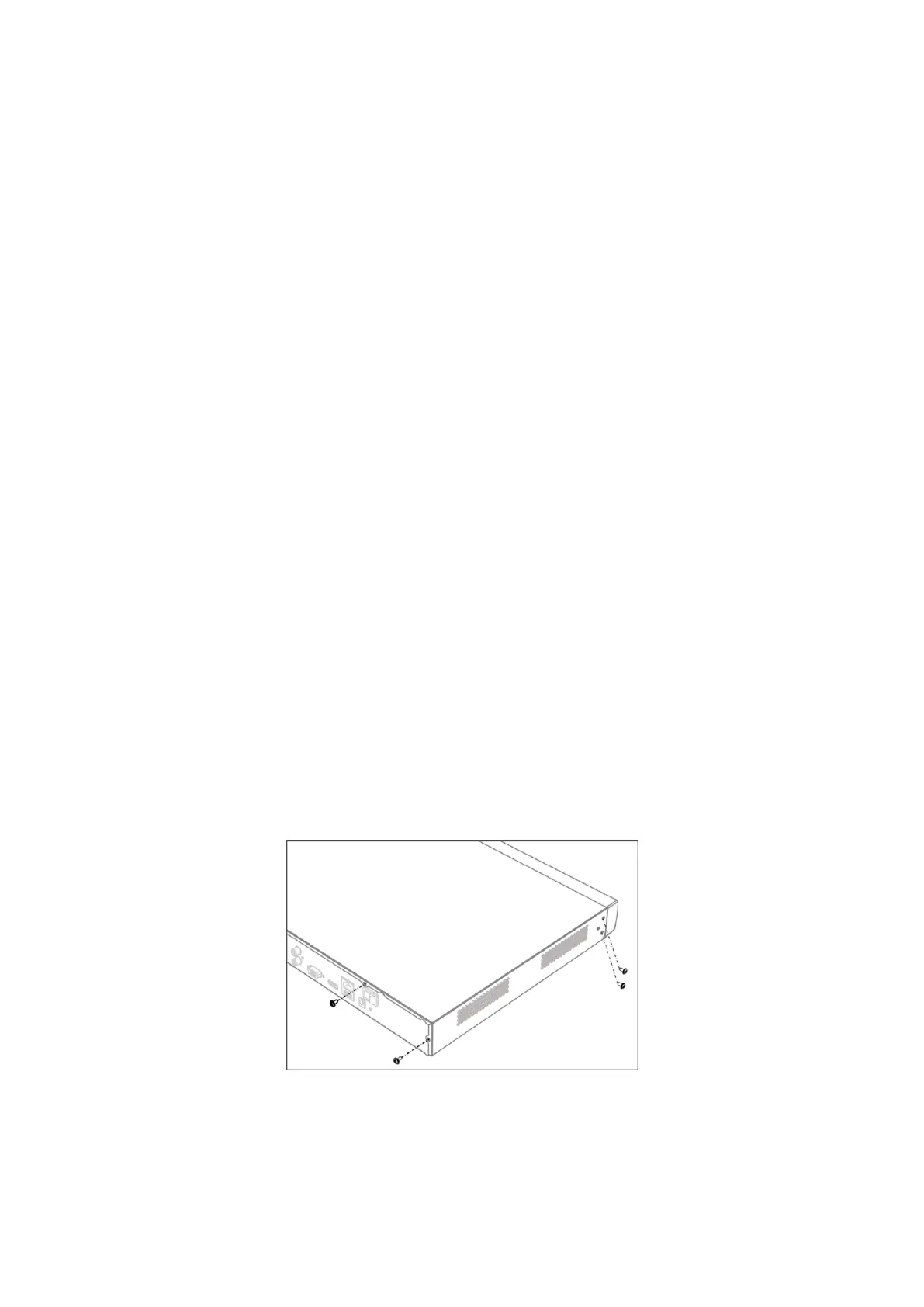

Figure 2-1 Remove Cover
2. Connect the data cable and power cable.
